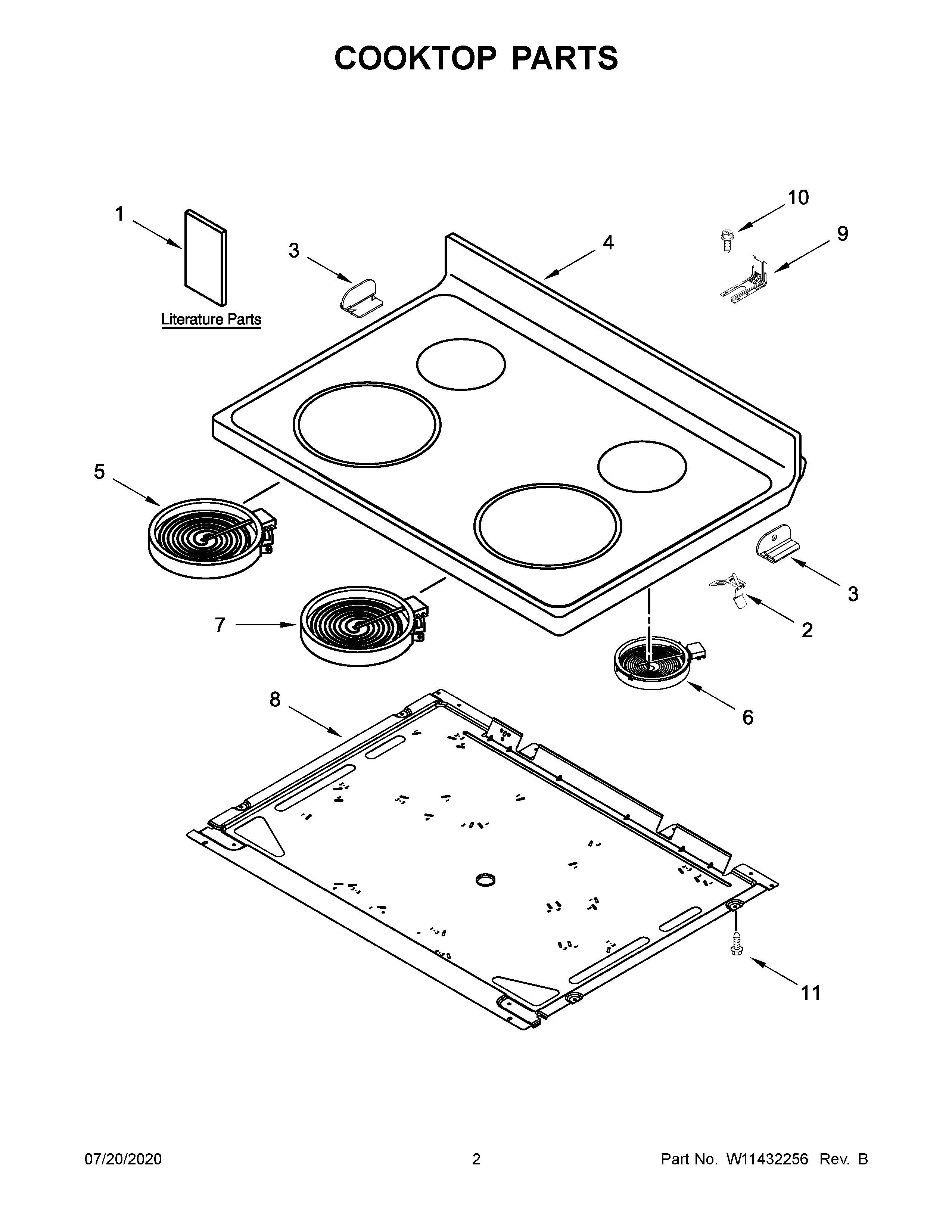

WFE320M0JB0 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11432194 Whirlpool Wire Harness
NIW11675846 Whirlpool Wire Harness
NIW11596058 Whirlpool Wire Harness
1CSHEET, TECH
1AINSTRUCTIONS, INSTALLATION
1GUIDE, USE AND CARE
1BWIRING DIAGRAM
2WPW10225448 Whirlpool Spring Assembly
3W10607641 Whirlpool Clip
3AW10607642 Whirlpool Clip
4AW11178790 Whirlpool Cooktop
4W11178791 Whirlpool Cooktop
5W11517959 Whirlpool Electric Range Radiant Surface Element
6ELMNT-SURF
7W11047722 Whirlpool Radiant Surface Element
8PAN
9W11447673 Whirlpool Range Tip Anchor
10SCREW, ANTI-TIP KIT
11WP3196557 Whirlpool Screw
