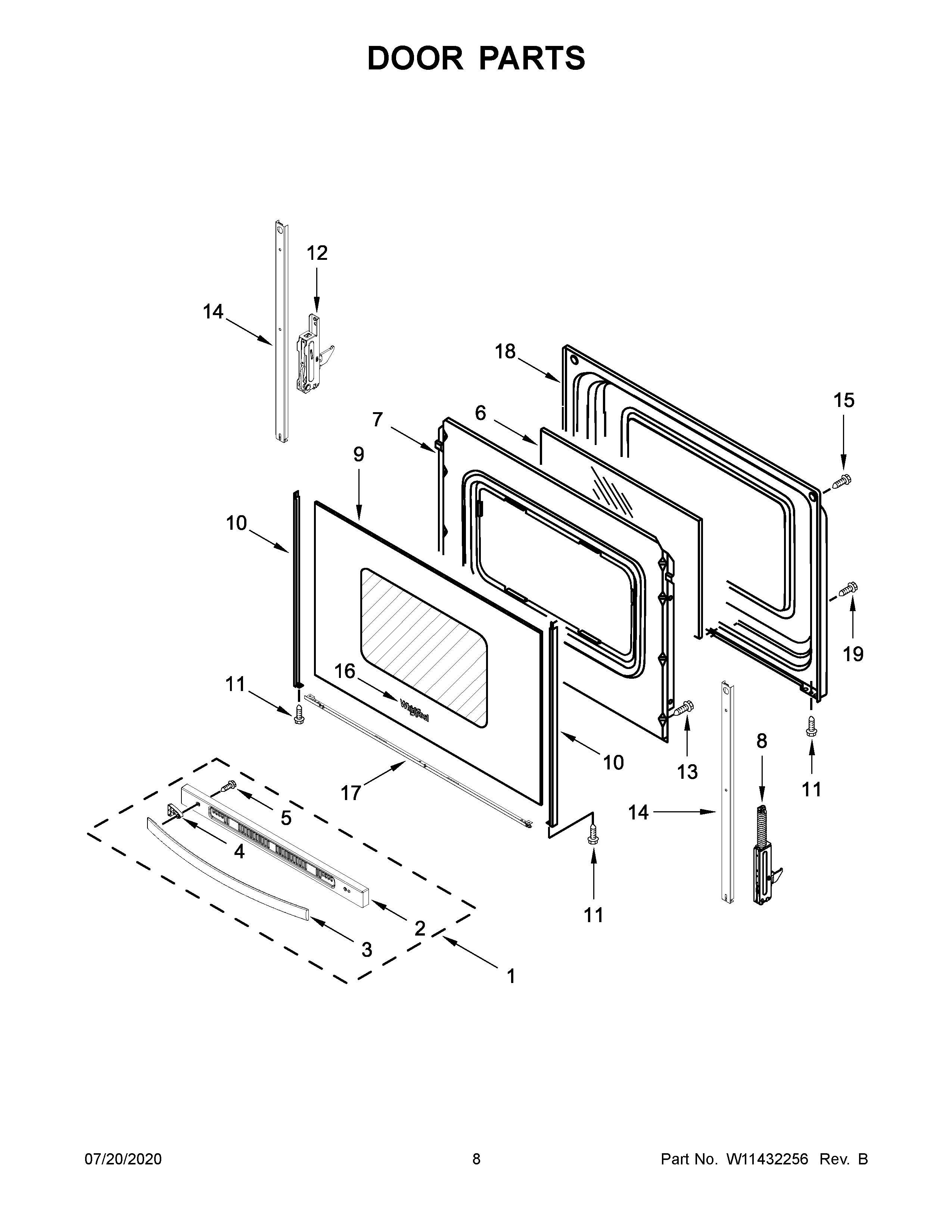

WFE320M0JB0 05 – DOOR PARTS

WFE320M0JB0 05 – DOOR PARTS

Written by

in

WFE320M0JB0 05 – DOOR PARTS

Products

PositionProduct
1AW11590861 Whirlpool Door Handle
1W11553213 Whirlpool Door Handle
2TRIM-VENT
2AW10817433 Whirlpool Vent Trim
3W11107394 Whirlpool Door Handle
3AW11107407 Whirlpool Door Handle
4CABINET (NOT A SERVICEABLE PART)
5W10831019 Whirlpool Stove Door Screw
6W11399628 Whirlpool Door Glass
7W11685635 Whirlpool Retainer
8WPW10299225 Whirlpool Door Hinge
9AWPW10409945 Whirlpool Glass Door
9WPW10409946 Whirlpool Door Glass
10CWP8523166 Whirlpool Door Trim
10W10761018 Whirlpool Dishwasher Left Door Trim
10AW10761014 Whirlpool Right Door Trim
10BWP8523172 Whirlpool Left Door Trim
11WP355214 Whirlpool Screw
12WPW10299227 Whirlpool Range Door Hinge
13W10777162 Whirlpool Screw
14W11502236 Whirlpool Door Trim
15WPW10200660 Whirlpool Range Oven Door Handle Screw
16W11178521 Whirlpool Dishwasher Nameplate
17WP8523177 Whirlpool Door Trim Assembly
17AWP8523175 Whirlpool Door Trim Assembly
18WP9761344 Whirlpool Door Liner
19WPW10031790 Whirlpool Screw
