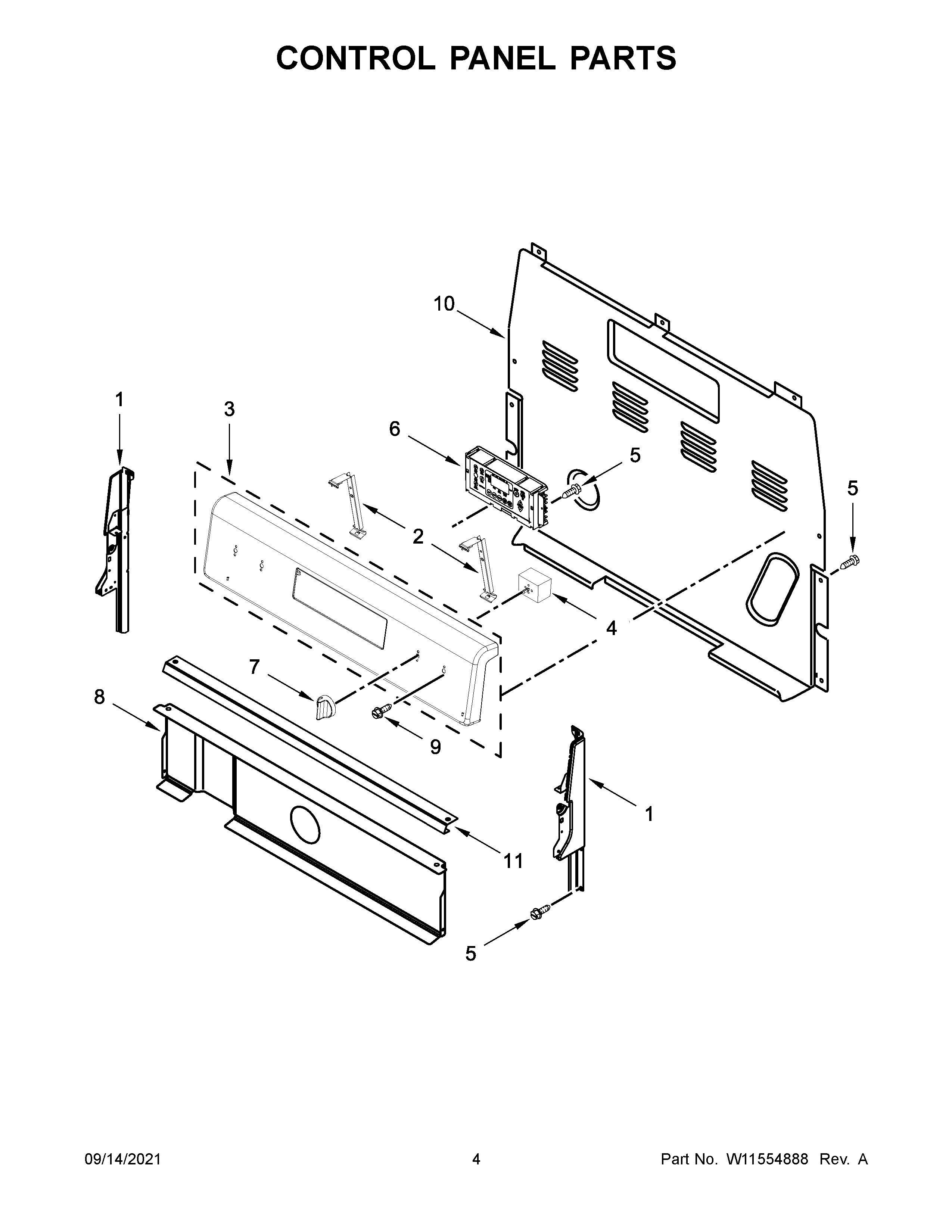

WFE320M0JB1 03 – CONTROL PANEL PARTS

WFE320M0JB1 03 – CONTROL PANEL PARTS

Written by

in

WFE320M0JB1 03 – CONTROL PANEL PARTS

Products

PositionProduct
1CW11219370 Whirlpool Endcap Panel
1BW11219365 Whirlpool Panel Endcap
1W11219664 Whirlpool Endcap Panel
1AW11219665 Whirlpool Panel Endcap
2W11230932 Whirlpool Bracket Mounting
3AW11180282 Whirlpool Control Panel
3W11242068 Whirlpool Control Panel
4AWP3149404 Whirlpool Oven Surface Element Switch
4BWP3149400 Whirlpool Oven Infinite Switch
4SWITCH-INF
5SCREW
6W11594224-includeCORE Whirlpool W11594224 Refrigerator Electronic Control
6AW11594187-includeCORE Whirlpool W11594187 Refrigerator Electronic Control Board + Core
7W11158169 Whirlpool Knob
7AW11158173 Whirlpool Knob Assembly
8W10134247 Whirlpool Heat Shield
9WP3400882 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W10525121 Whirlpool Control Bracket
