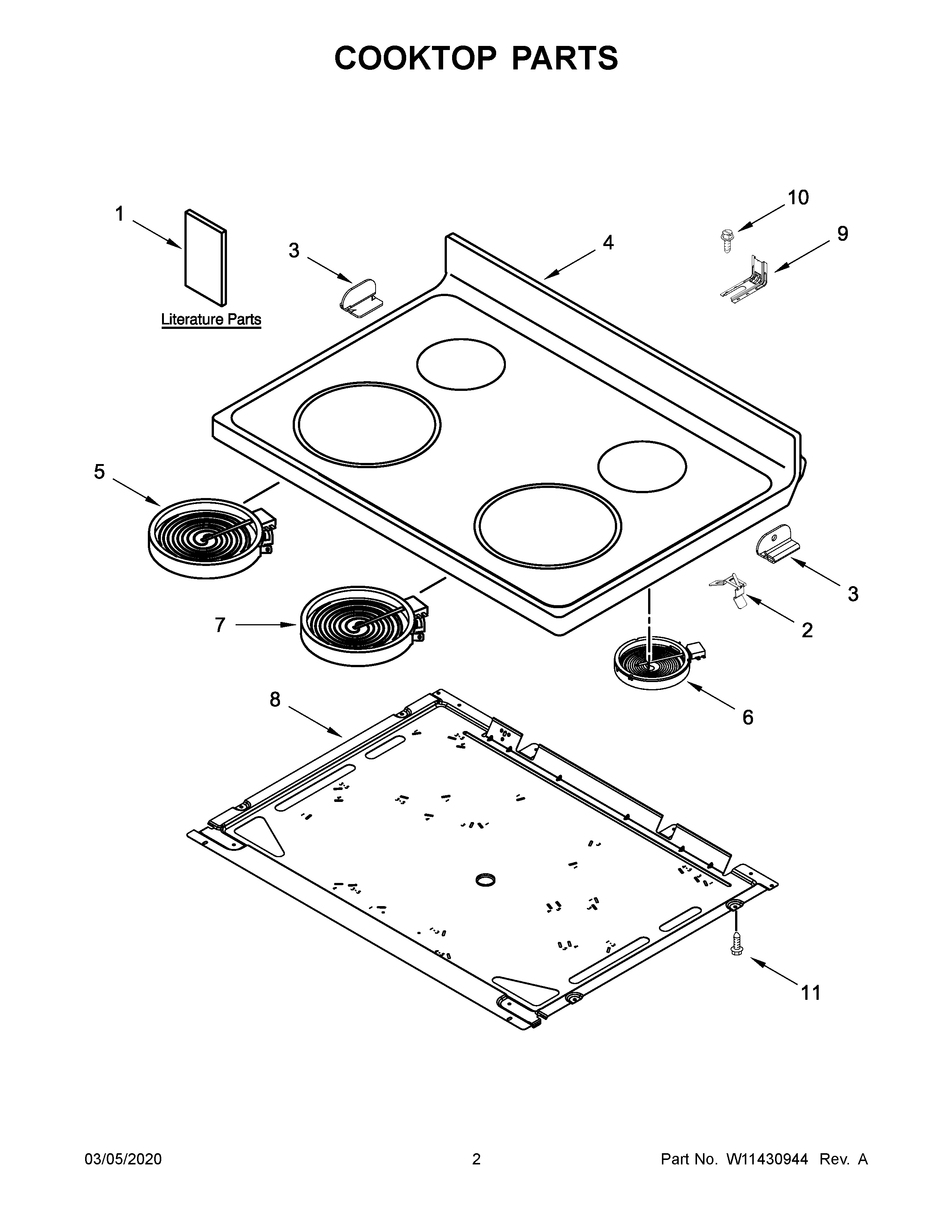

WFE320M0JS0 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11432194 Whirlpool Wire Harness
NI	W11675846 Whirlpool Wire Harness
NI	W11596058 Whirlpool Wire Harness
1C	SHEET, TECH
1A	INSTRUCTIONS, INSTALLATION
1	GUIDE, USE AND CARE
1B	WIRING DIAGRAM
2	WPW10225448 Whirlpool Spring Assembly
3	W10607641 Whirlpool Clip
3A	W10607642 Whirlpool Clip
4	W11178791 Whirlpool Cooktop
5	W11517959 Whirlpool Electric Range Radiant Surface Element
6	ELMNT-SURF
7	W11047722 Whirlpool Radiant Surface Element
8	PAN
9	W11447673 Whirlpool Range Tip Anchor
10	SCREW, ANTI-TIP KIT
11	WP3196557 Whirlpool Screw
