WFE320M0JW4 02 – COOKTOP PARTS

WFE320M0JW4 02 – COOKTOP PARTS

Written by

in

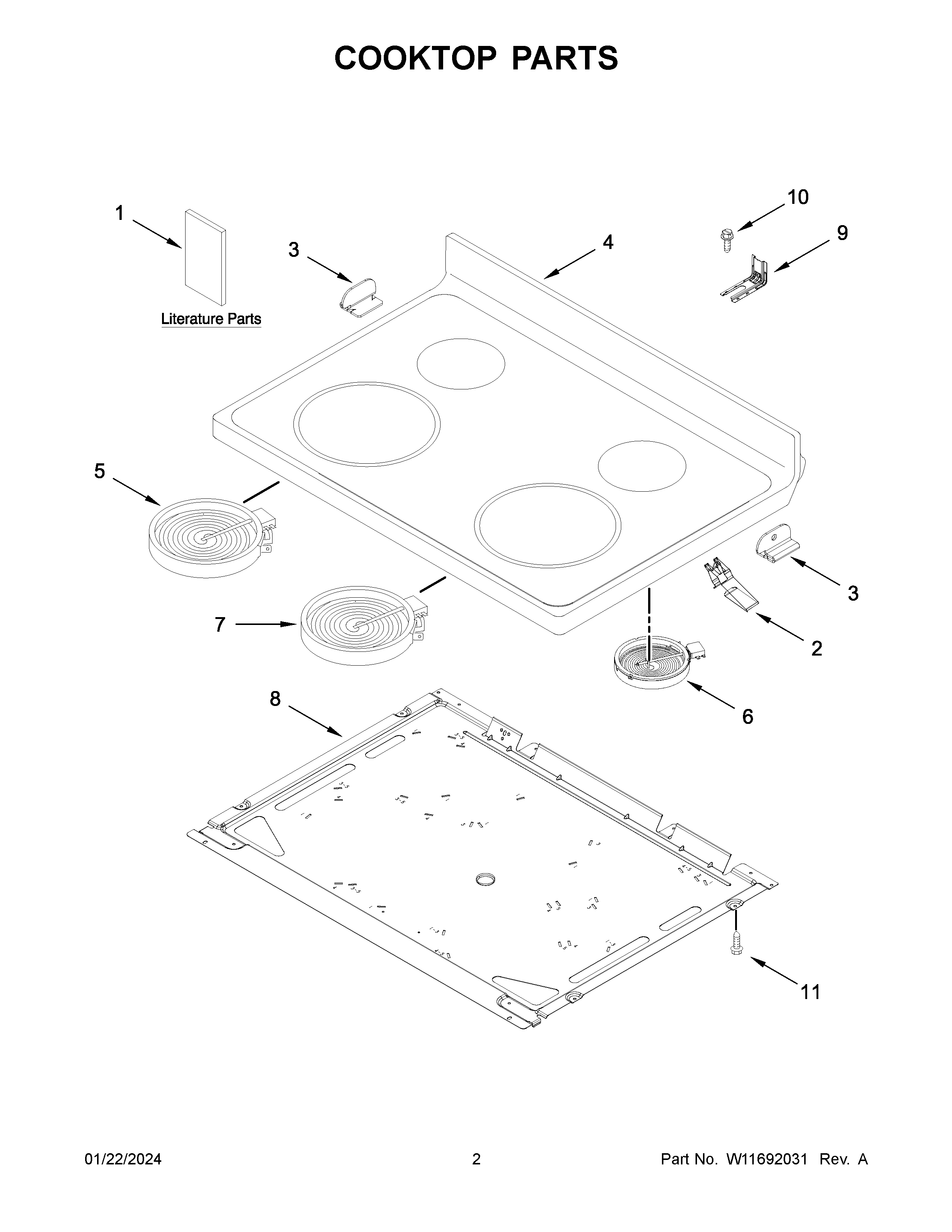

WFE320M0JW4 02 – COOKTOP PARTS

Products

PositionProduct
NIW11531755 Whirlpool Wire Harness
NIW11675846 Whirlpool Wire Harness
NIW11596058 Whirlpool Wire Harness
NIFOLLOWING PARTS NOT ILLUSTRATED
1AQUICK START GUIDE
1BTECH SHEET
1OWNERS MANUAL
2W11663556 Whirlpool Spring Assembly
3W10607641 Whirlpool Clip
3AW10607642 Whirlpool Clip
4W11178791 Whirlpool Cooktop
4AW11178790 Whirlpool Cooktop
5W11517959 Whirlpool Electric Range Radiant Surface Element
6ELMNT-SURF
7W11047722 Whirlpool Radiant Surface Element
8PAN
9W11447673 Whirlpool Range Tip Anchor
10SCREW, ANTI-TIP KIT
11WP3196557 Whirlpool Screw
