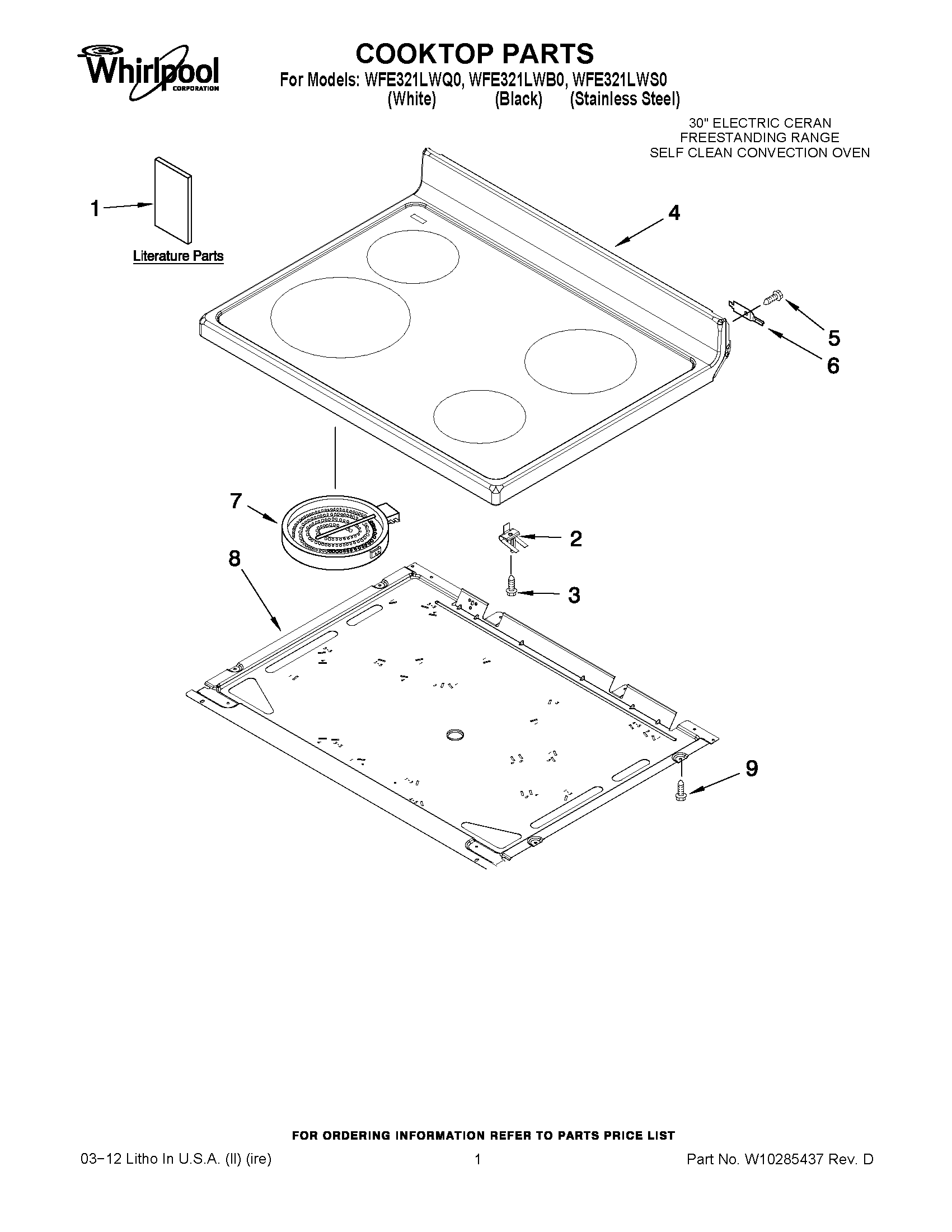

WFE321LWQ0 01 – COOKTOP PARTS

WFE321LWQ0 01 – COOKTOP PARTS

Written by

in

WFE321LWQ0 01 – COOKTOP PARTS

Products

PositionProduct
1INSTRUCTIONS, INSTALLATION
1SAFER COOKING TIPS (ENGLISH
1Anti-Tip Template (English/Spanish)
1Anti-Tip Template (English/French)
1OWNERS MANUAL
1TECH SHEET
2WPW10225448 Whirlpool Spring Assembly
3WP3196170 Whirlpool Screw
4W10307656 Whirlpool Cooktop
4COOKTOP (BLACK)
5SCREW
6WP3195060 Whirlpool Cooktop Pin
7W10823728 Whirlpool Surface Element
7W10823698 Whirlpool Surface Element Right Rear
7W10823711 Whirlpool Surface Element Left Front and Right Rear
8W10170526 Whirlpool Pan
9WP3196557 Whirlpool Screw
