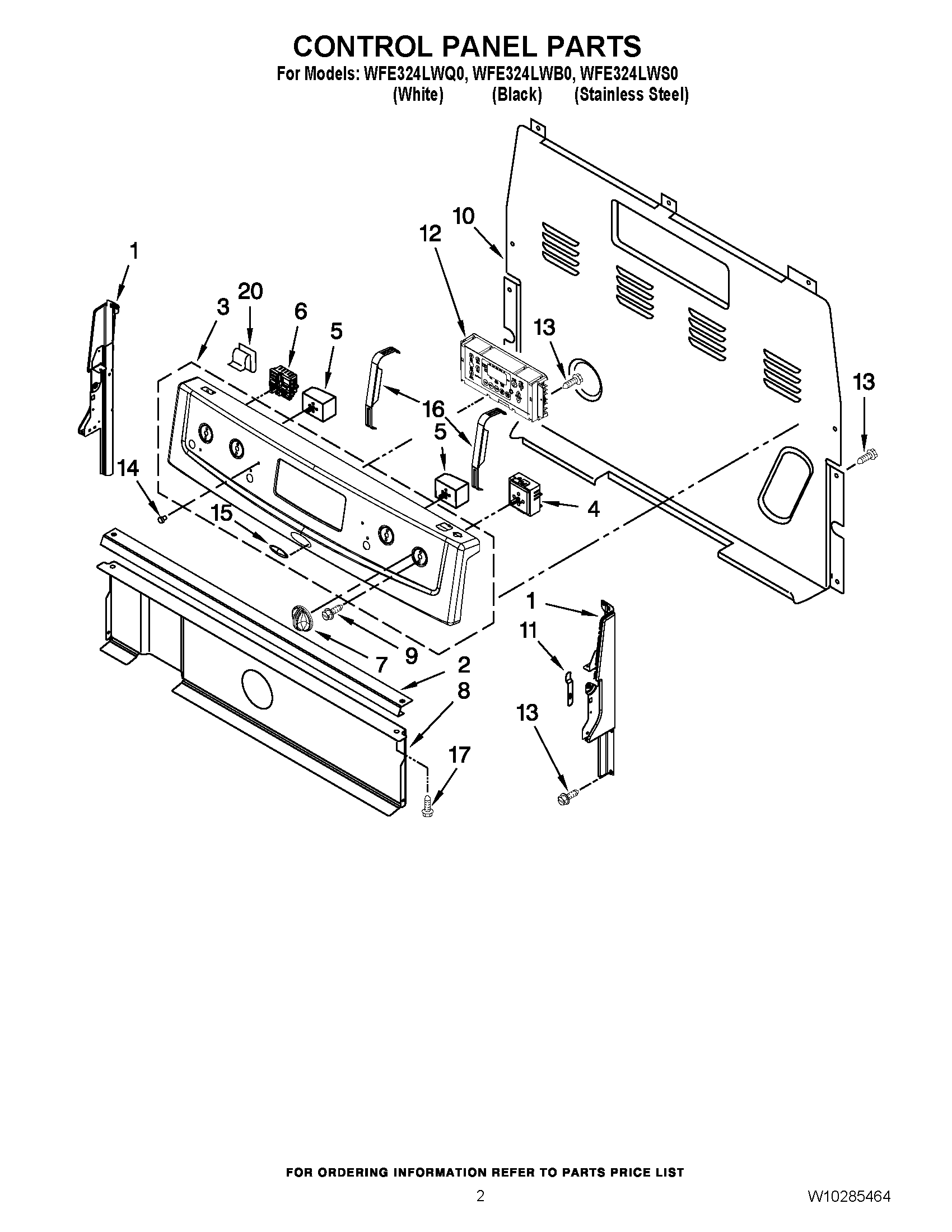

WFE324LWB0 02 – CONTROL PANEL PARTS

WFE324LWB0 02 – CONTROL PANEL PARTS

Written by

in

WFE324LWB0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219370 Whirlpool Endcap Panel
1W11219365 Whirlpool Panel Endcap
1W11219664 Whirlpool Endcap Panel
1W11219665 Whirlpool Panel Endcap
2W10525121 Whirlpool Control Bracket
3CONSOLE (WHITE)
3CONSOLE (STAINLESS STEEL)
3CONSOLE (BLACK)
4SWITCH-INF
5WP3149404 Whirlpool Oven Surface Element Switch
6WPW10149355 Whirlpool Infinite Switch
7WP9761962 Whirlpool Range Stove Burner Control Knob
7WP9761964 Whirlpool Knob
8W10134247 Whirlpool Heat Shield
9WP3400882 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
113196200 Whirlpool Clip
12CONTROL, RANGE (WHITE)
12CONTROL, RANGE (BLACK)
13SCREW
14WP3196068 Whirlpool Light Lens
15Badge
16BRACKET, MOUNTING EOC
173196166 Whirlpool Screw
17WP3400832 Whirlpool Screw
20WP8273564 Whirlpool Clip
