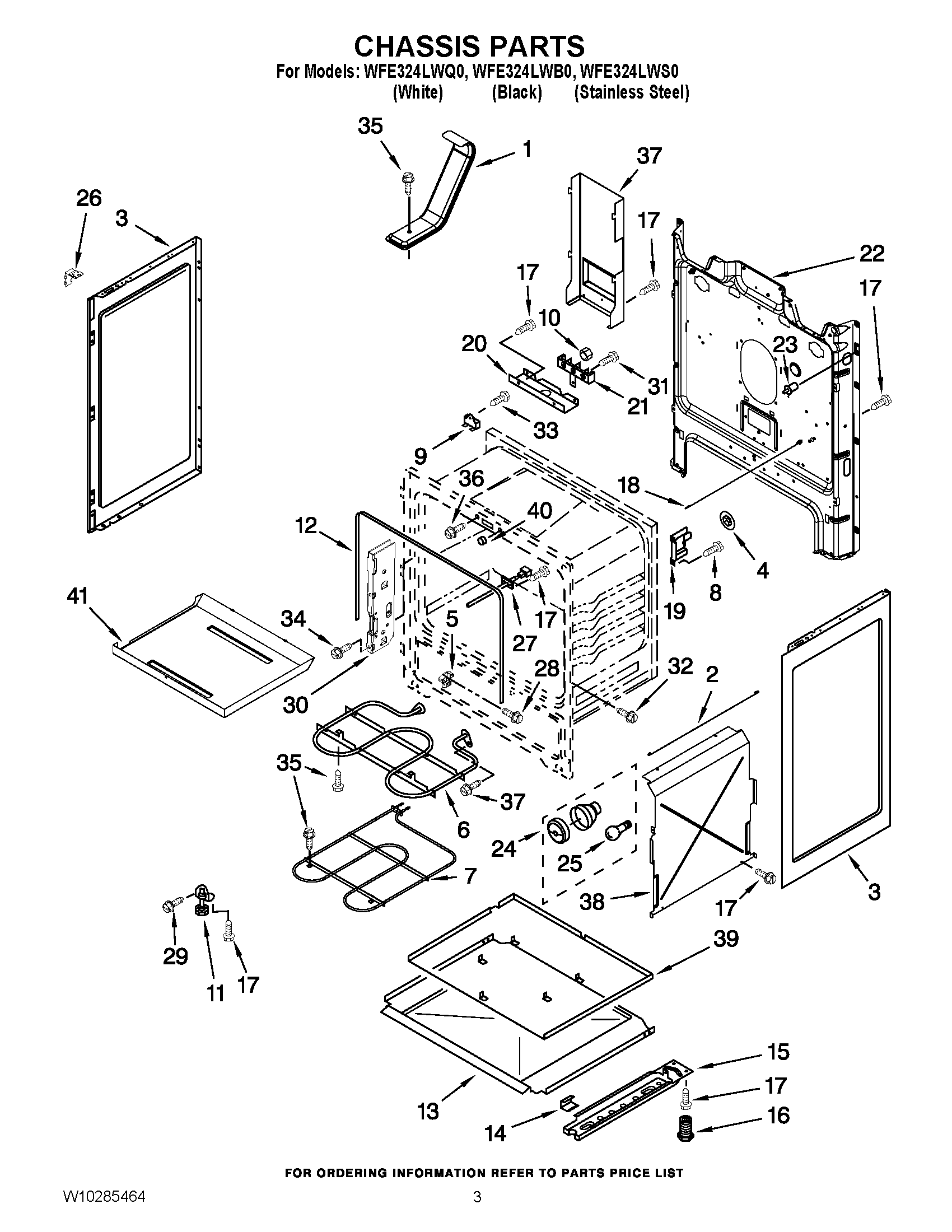

WFE324LWB0 03 – CHASSIS PARTS

Products

Position	Product
NI	8053915 Whirlpool Oven Insulation
NI	WPW10208653 Whirlpool Insulation
NI	INSULATION, BACK
1	WPW10134285 Whirlpool Vent Tube
2	W10465685 Whirlpool Retainer Assembly
3	WPW10575396 Whirlpool Side Panel
3	W11730303 Whirlpool Side Panel
4	WP3400968 Whirlpool Nut
5	WPW10114344 Whirlpool Drawer Glide
6	W10856603 Whirlpool Broil Element
7	WP9755770 Whirlpool Bake Element
8	WP3196557 Whirlpool Screw
9	WP3196548 Whirlpool Thermal Fuse
10	Nut
11	WP3196037 Whirlpool Leveling Foot
12	W11542153 Whirlpool Door Gasket
13	W10134121 Whirlpool Insulation Tray
14	W10137382 Whirlpool Clip
15	WPW10306546 Whirlpool Base Rail
16	WPW10058460 Whirlpool Appliance Levelling Leg
17	SCREW
18	9757239 Whirlpool Oven Door Rod
19	W10404688 Whirlpool Bracket Support
20	W11728255 Whirlpool Service Bracket
21	WPW10245259 Whirlpool Terminal Block
22	Back, Main
23	WP9757262 Whirlpool Light Switch
24	W11594027 Whirlpool Range Oven Light Socket
25	RANGE ONLY 40W 120V APPL BULB
26	W10183541 Whirlpool Clip Assembly
27	WPW10181986 Whirlpool Oven Sensor
28	WP3196175 Whirlpool Screw
29	Screw
30	W10647259 Whirlpool Hinge Receiver
31	WP3400016 Whirlpool Screw Assembly
32	WPW10067840 Whirlpool Screw
33	3196172 Whirlpool Oven Screw
34	W10777162 Whirlpool Screw
35	WP3196174 Whirlpool Screw
36	WP3400832 Whirlpool Screw
37	WPW10326122 Whirlpool Black Cover
38	W10450380 Whirlpool Retainer
39	W10134125 Whirlpool Retainer Clip
40	W10877054 Whirlpool Spacer Assembly
41	W10183712 Whirlpool Bake Tray
