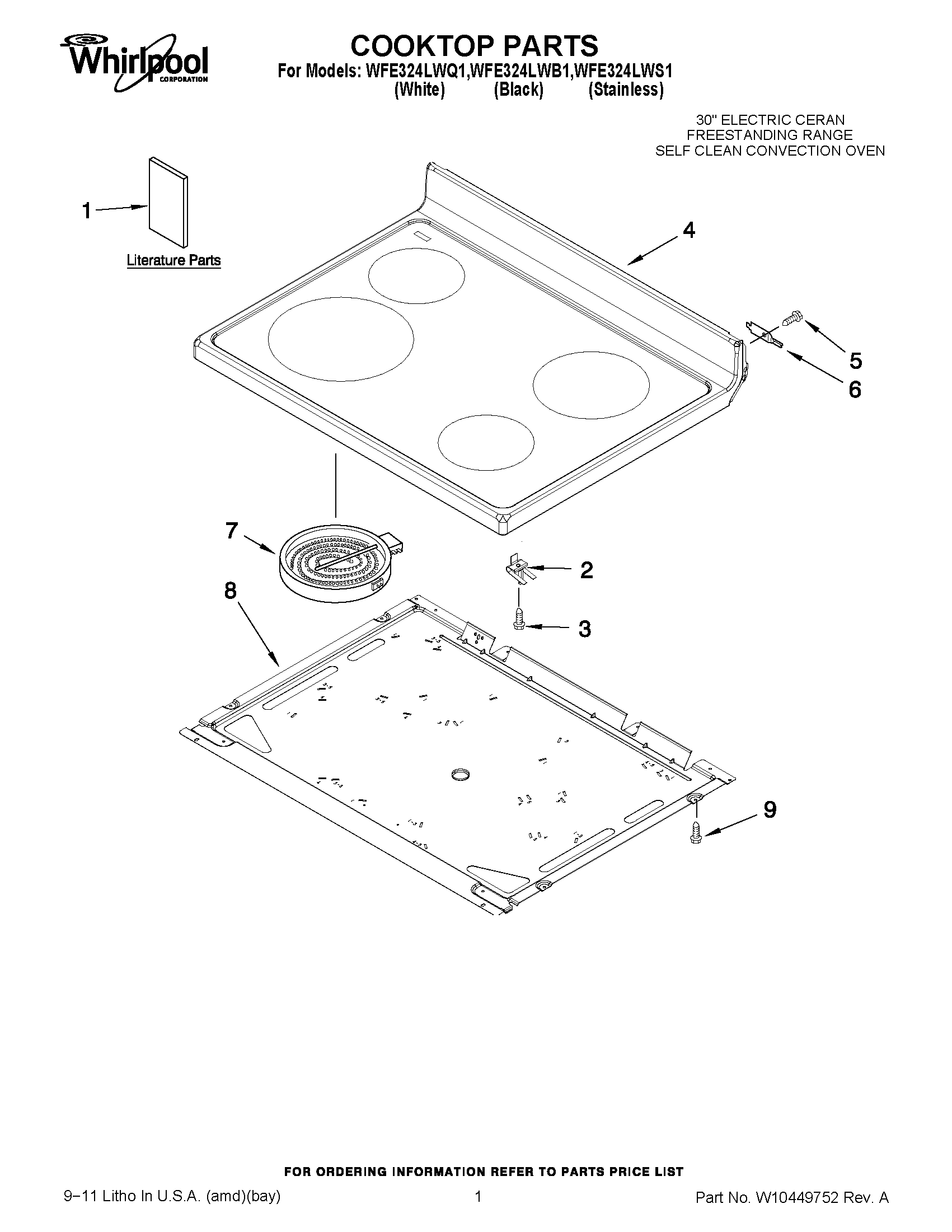

WFE324LWQ1 01 – COOKTOP PARTS

WFE324LWQ1 01 – COOKTOP PARTS

Written by

in

WFE324LWQ1 01 – COOKTOP PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1Anti-Tip Template (English/Spanish)
1Anti-Tip Template (English/French)
1OWNERS MANUAL
1TECH SHEET (ENGLISH)
1INSTRUCTIONS, INSTALLATION
2WPW10225448 Whirlpool Spring Assembly
4COOKTOP WHITE
4W10308891 Whirlpool Cooktop
5SCREW
6WP3195060 Whirlpool Cooktop Pin
7W11517959 Whirlpool Electric Range Radiant Surface Element
7W10823711 Whirlpool Surface Element Left Front and Right Rear
7WP8273993 Whirlpool Surface Element
8W10170526 Whirlpool Pan
9WP3196557 Whirlpool Screw
