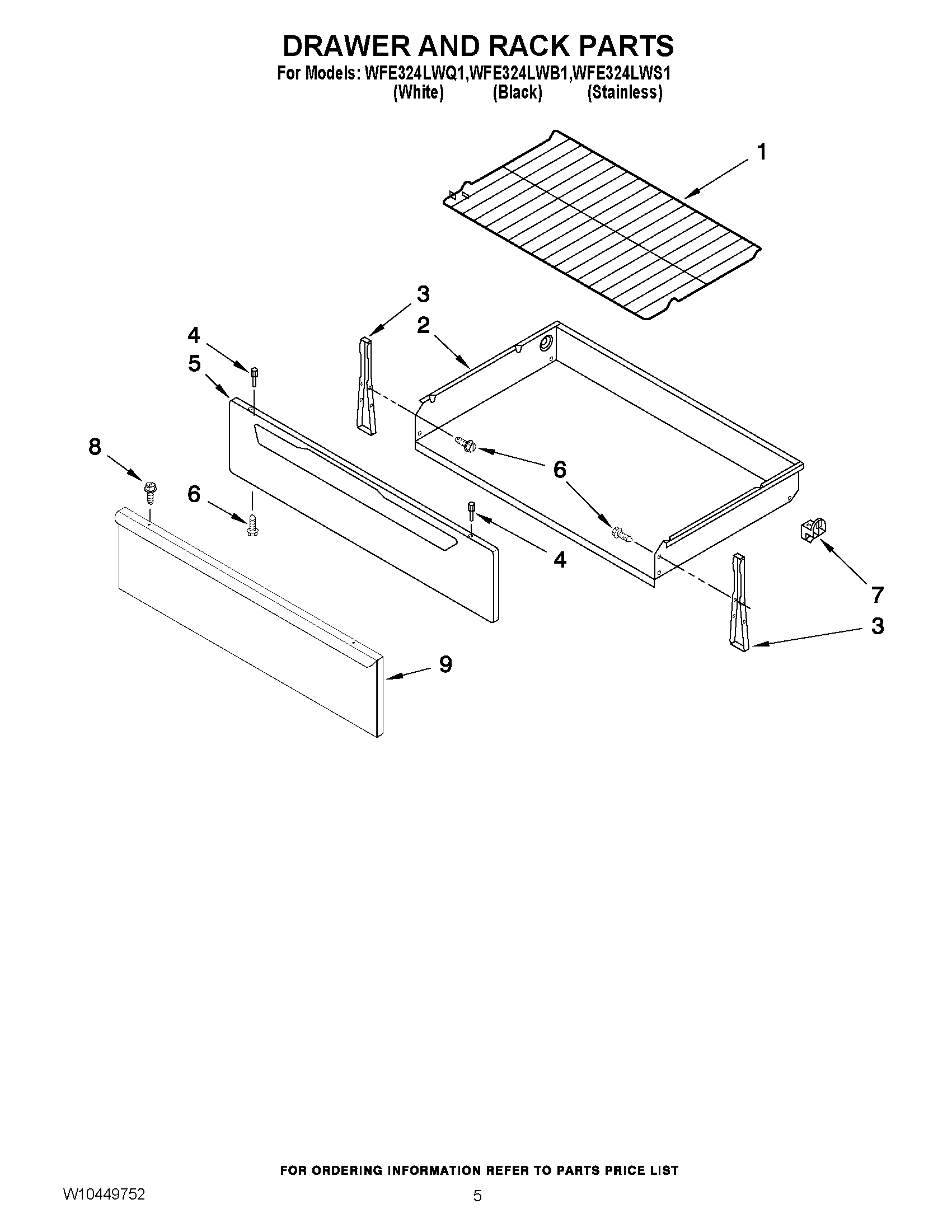

WFE324LWQ1 04 – DRAWER AND RACK PARTS

Written by

Products

Position	Product
1	RACK-OVEN
2	Drawer, Storage
3	W10838990 Whirlpool Mounting Bracket
3	WPW10462912 Whirlpool Bracket Mounting
4	WP3196813 Whirlpool Rivet
4	WP3196814 Whirlpool Rivet
5	W11230488 Whirlpool Drawer Panel
5	W11219377 Whirlpool Drawer Panel
6	WP3400832 Whirlpool Screw
7	WP8053334 Whirlpool Drawer Glide
8	WPW10031790 Whirlpool Screw
9	PANEL, STAINLESS
