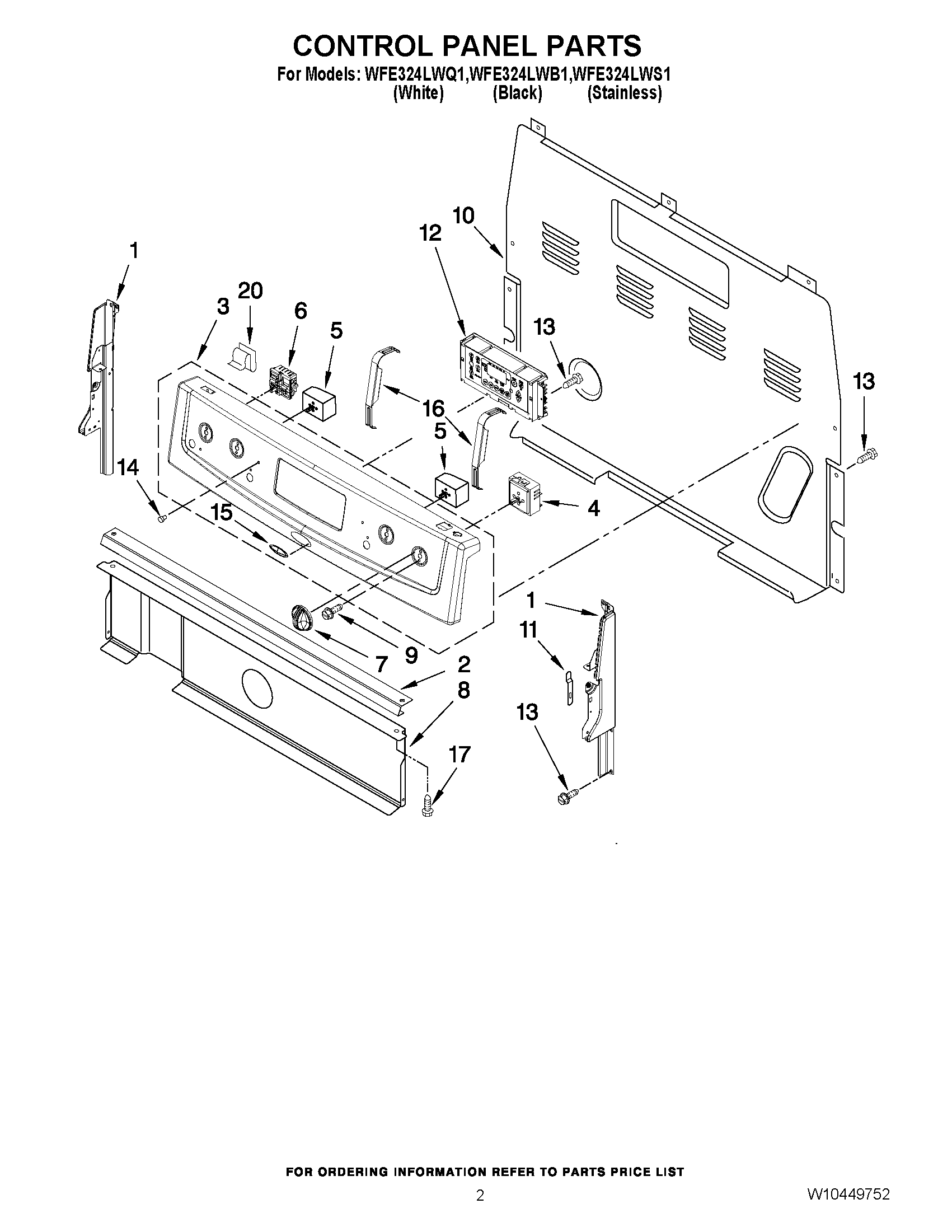

WFE324LWS1 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219370 Whirlpool Endcap Panel
1	W11219365 Whirlpool Panel Endcap
1	W11219665 Whirlpool Panel Endcap
1	W11219664 Whirlpool Endcap Panel
2	W10525121 Whirlpool Control Bracket
3	CONSOLE (WHITE)
3	CONSOLE (BLACK)
3	CONSOLE (STAINLESS STEEL)
4	SWITCH-INF
5	WP3149404 Whirlpool Oven Surface Element Switch
6	SWITCH-INF
7	WP9761964 Whirlpool Knob
7	WP9761962 Whirlpool Range Stove Burner Control Knob
8	W10134247 Whirlpool Heat Shield
9	WP3400882 Whirlpool Screw
10	WP8272473 Whirlpool Rear Cover
11	3196200 Whirlpool Clip
12	CONTROL, RANGE (BLACK)
12	CONTROL, RANGE (WHITE)
13	SCREW
14	WP3196068 Whirlpool Light Lens
15	Badge
16	BRACKET, MOUNTING EOC
17	3196166 Whirlpool Screw
17	WP3400832 Whirlpool Screw
20	WP8273564 Whirlpool Clip
