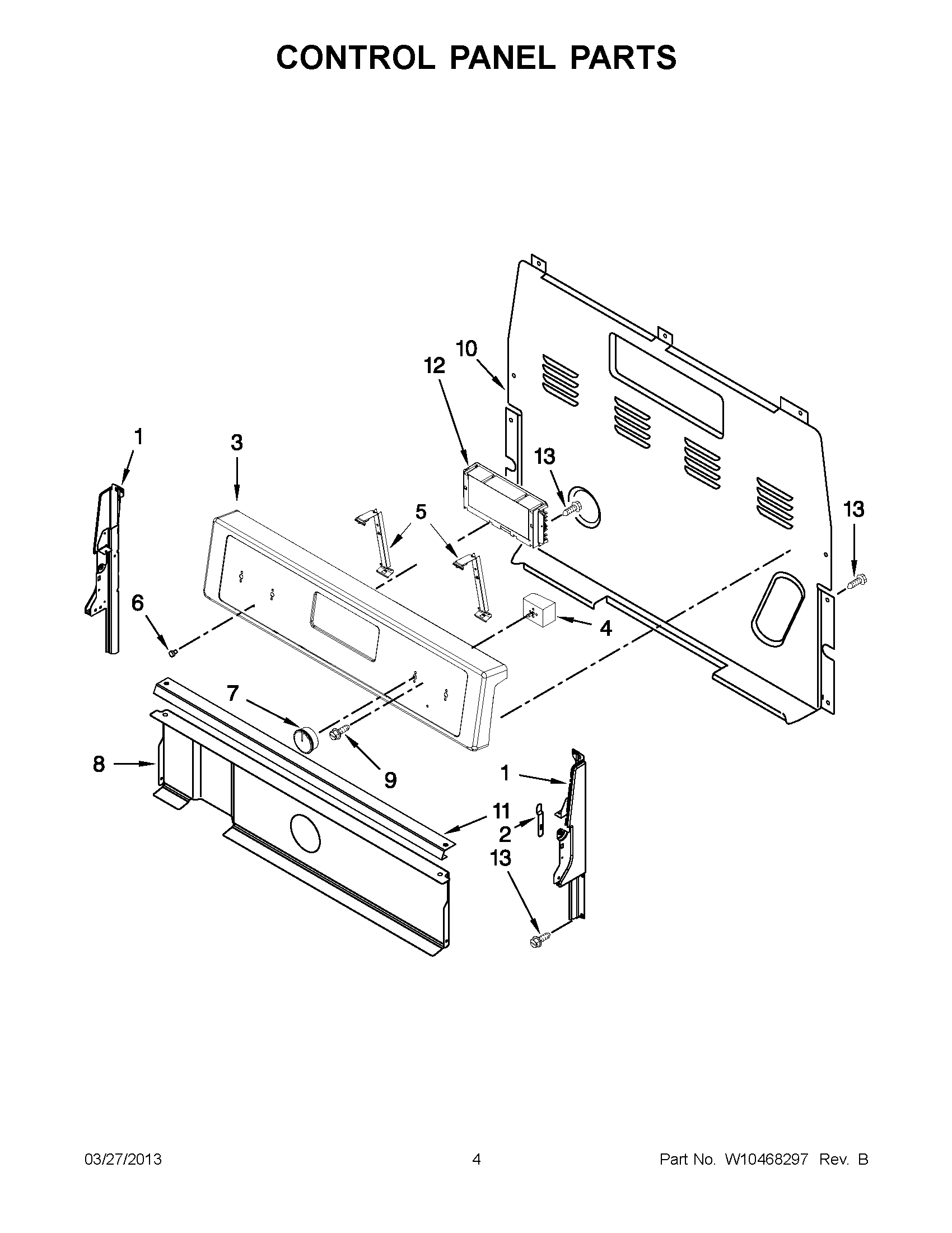

WFE330W0AS0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219370 Whirlpool Endcap Panel
1	W11219365 Whirlpool Panel Endcap
1	W11219664 Whirlpool Endcap Panel
1	W11219665 Whirlpool Panel Endcap
2	3196200 Whirlpool Clip
3	PANEL, BACKGUARD (BLACK)
3	PANEL, BACKGUARD (WHITE)
3	PANEL, BACKGUARD (STAINLESS)
4	WPW10167742 Whirlpool Range Surface Burner Element Switch
4	WP3149404 Whirlpool Oven Surface Element Switch
4	SWITCH-INF
5	W11230932 Whirlpool Bracket Mounting
6	WP3196068 Whirlpool Light Lens
7	WPW10490037 Whirlpool Knob
7	WPW10490038 Whirlpool Knob
8	W10134247 Whirlpool Heat Shield
9	WP3400882 Whirlpool Screw
10	WP8272473 Whirlpool Rear Cover
11	W10525121 Whirlpool Control Bracket
12	CONTROL, RANGE (LCC190) (STAINLESS)
12	WPW10348617-includeCORE Whirlpool WPW10348617 Refrigerator Electronic Control Board + Core
13	SCREW
