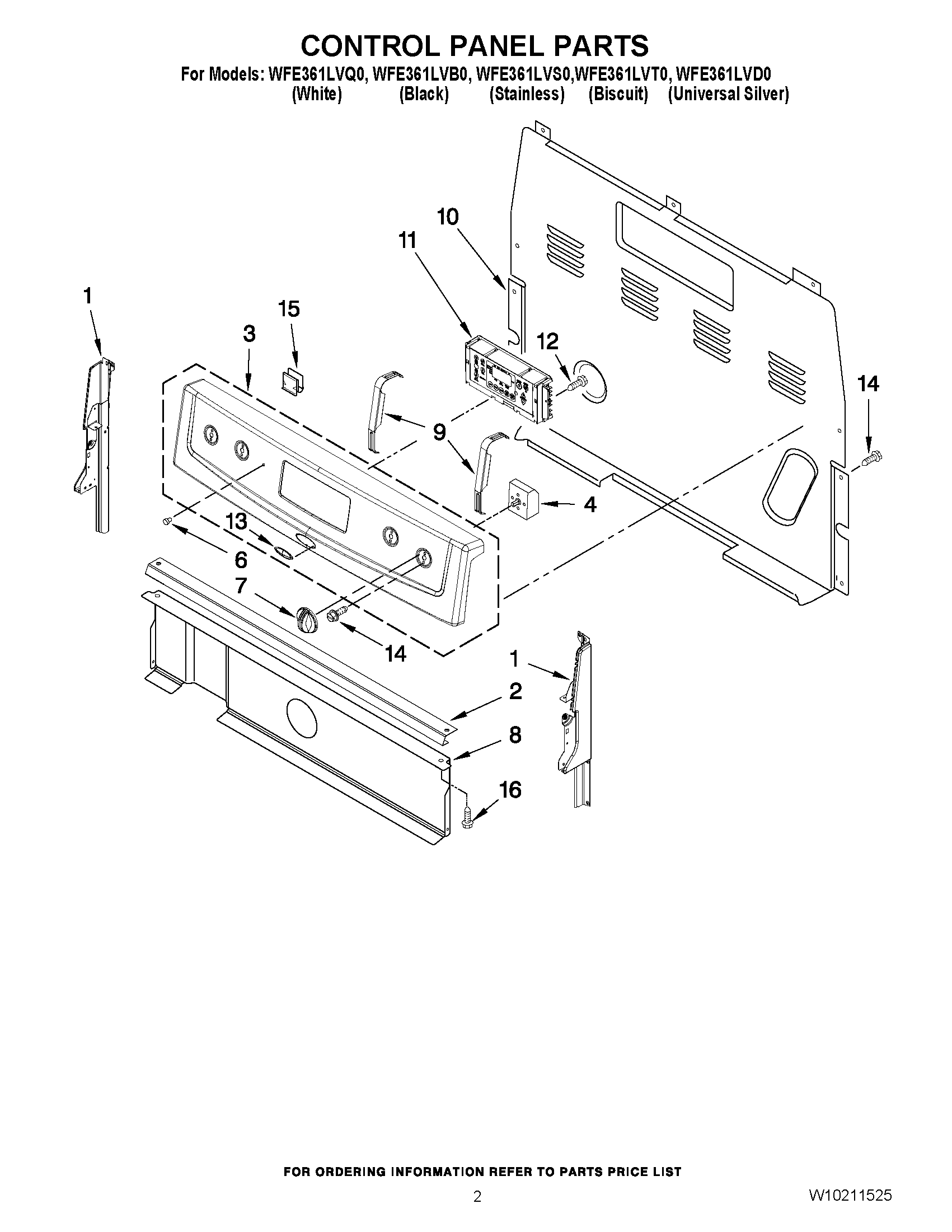

WFE361LVB0 02 – CONTROL PANEL PARTS

WFE361LVB0 02 – CONTROL PANEL PARTS

Written by

in

WFE361LVB0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11230612 Whirlpool Panel End Cap
1W11219370 Whirlpool Endcap Panel
1W11219365 Whirlpool Panel Endcap
1W11219665 Whirlpool Panel Endcap
1W11219664 Whirlpool Endcap Panel
1W11230611 Whirlpool Panel Endcap
2W10525121 Whirlpool Control Bracket
3Panel, Control (White)
3Panel, Control (Biscuit)
3Panel, Control (Black)
3Panel, Control (Universal Silver)
3Panel, Control (Stainless)
4WP3149404 Whirlpool Oven Surface Element Switch
4WP3149400 Whirlpool Oven Infinite Switch
4WPW10149355 Whirlpool Infinite Switch
6WP3196068 Whirlpool Light Lens
7WP9761964 Whirlpool Knob
7WP9761962 Whirlpool Range Stove Burner Control Knob
7WP9761963 Whirlpool Knob Assembly
8W10134247 Whirlpool Heat Shield
9BRACKET, MOUNTING EOC
10WP8272473 Whirlpool Rear Cover
11W10876180 Whirlpool Electronic Control Board
12SCREW
13Badge
14WP3400882 Whirlpool Screw
15WP8273564 Whirlpool Clip
163196166 Whirlpool Screw
16WP3400832 Whirlpool Screw
16WPL 8281194
