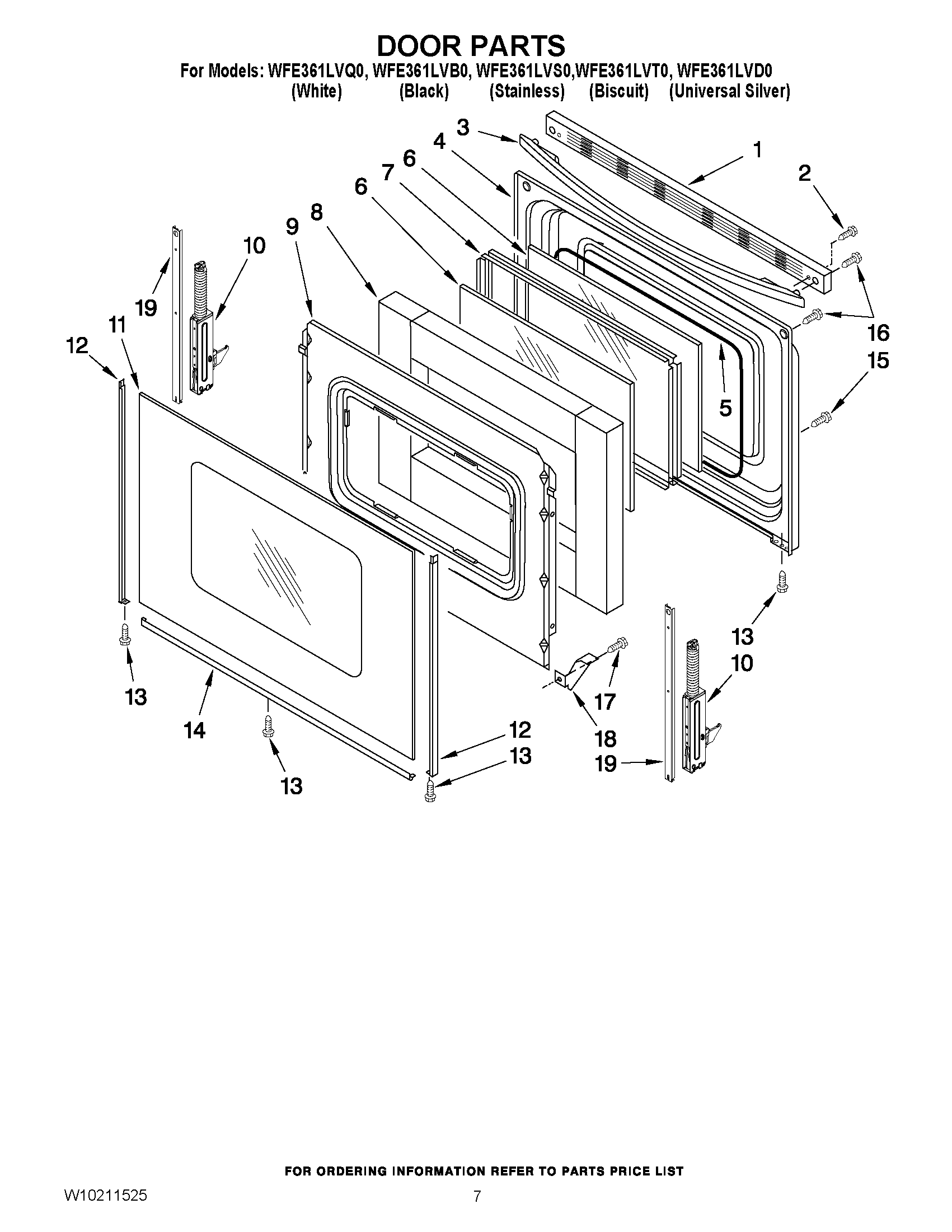

WFE361LVB0 05 – DOOR PARTS

WFE361LVB0 05 – DOOR PARTS

Written by

in

WFE361LVB0 05 – DOOR PARTS

Products

PositionProduct
1TRIM-VENT
1W10817433 Whirlpool Vent Trim
1WPW10310923 Whirlpool Vent Trim
2W10817436 Whirlpool Screw
3WPW10144883 Whirlpool Door Handle
3WPW10323589 Whirlpool Door Handle
3W10817434 Whirlpool Door Handle
3HANDLE, DOOR (BISCUIT)
4WP9761344 Whirlpool Door Liner
5Seal, Window
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10WPW10299227 Whirlpool Range Door Hinge
10WPW10299224 Whirlpool Range Door Hinge Assembly with Spring
11WPW10118455 Whirlpool Door Glass Assembly
11Glass, Outer
11WPW10330077 Whirlpool Door Glass
11Glass, Outer Door (Biscuit)
11WPW10118454 Whirlpool Door Outer Glass White
12W10761014 Whirlpool Right Door Trim
12W10761018 Whirlpool Dishwasher Left Door Trim
12WP8523166 Whirlpool Door Trim
12WP8523167 Whirlpool Door Trim Assembly
12WP8523172 Whirlpool Left Door Trim
12WP8523173 Whirlpool Door Trim
13W10491985 Whirlpool Screw
14Trim, Bottom (Universal Silver)
14WP8523177 Whirlpool Door Trim Assembly
14WP8523175 Whirlpool Door Trim Assembly
14WP8523178 Whirlpool Door Trim
15WPW10031790 Whirlpool Screw
16W10777162 Whirlpool Screw
17WPW10200660 Whirlpool Range Oven Door Handle Screw
18WP3196794 Whirlpool Glass Bracket
19W11502236 Whirlpool Door Trim
