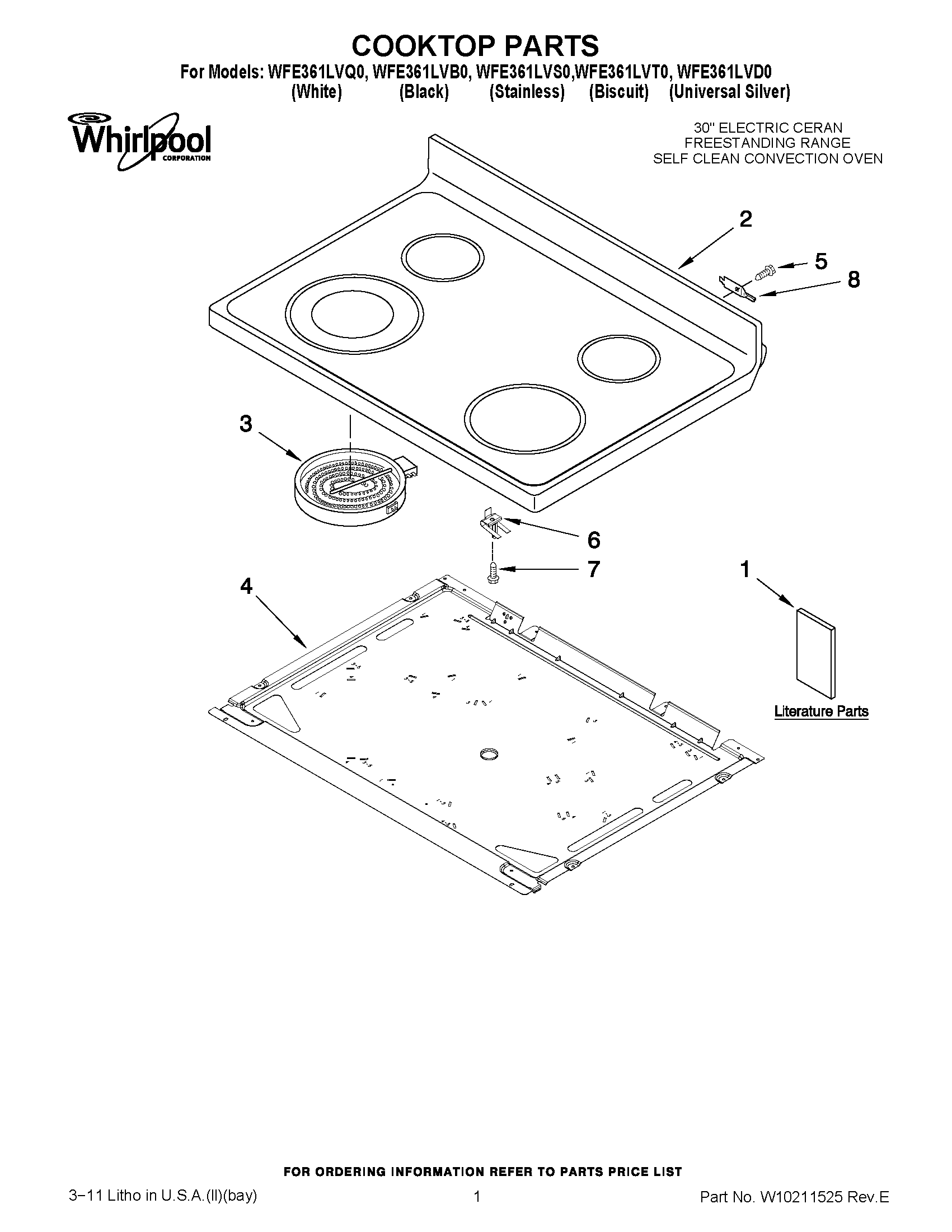

WFE361LVD0 01 – COOKTOP PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1Owners Manual
1TECH SHEET
1INSTRUCTIONS, INSTALLATION
1Anti-Tip Template (English/Spanish)
1Anti-Tip Template (English/French)
2W10245804 Whirlpool Cooktop
2W10245805 Whirlpool Range Black Glass Cooktop
2Cooktop (Biscuit)
3W11047722 Whirlpool Radiant Surface Element
3ELMNT-SURF
3W10823711 Whirlpool Surface Element Left Front and Right Rear
4W10170526 Whirlpool Pan
5WP3196557 Whirlpool Screw
6WPW10225448 Whirlpool Spring Assembly
7WP3196170 Whirlpool Screw
8WP3195060 Whirlpool Cooktop Pin
