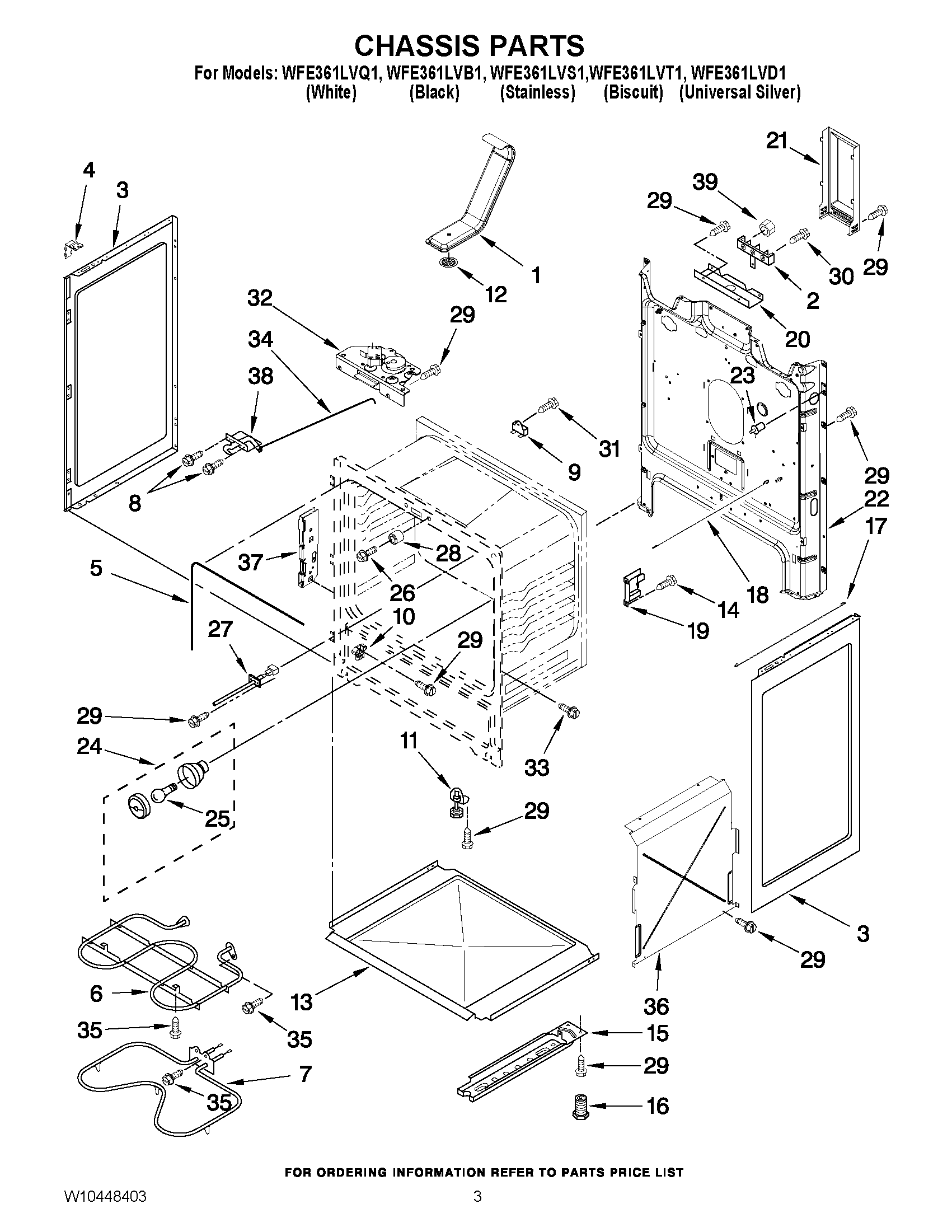

WFE361LVS1 03 – CHASSIS PARTS
Written by
in
WFE361LVS1 03 – CHASSIS PARTS
Products
Position
Product
NI
WPW10208653 Whirlpool Insulation
NI
W11684918 Whirlpool Insulation
NI
WP8272612 Whirlpool Insulation
1
WPW10134285 Whirlpool Vent Tube
2
WPW10245259 Whirlpool Terminal Block
3
W11730303 Whirlpool Side Panel
3
W10162246 Whirlpool Side Panel
3
WPW10575396 Whirlpool Side Panel
4
W10137382 Whirlpool Clip
5
W11542153 Whirlpool Door Gasket
6
W10856603 Whirlpool Broil Element
7
WPW10308477 Whirlpool Bake Element
8
W11169708 Whirlpool Screw
9
WP3196548 Whirlpool Thermal Fuse
10
WPW10114344 Whirlpool Drawer Glide
11
WPW10341186 Whirlpool Refrigerator Front Levelling Leg
12
9761301 Whirlpool Oven Screen
13
WP8054068 Whirlpool Retainer
14
WP3196557 Whirlpool Screw
15
WPW10306546 Whirlpool Base Rail
16
WPW10058460 Whirlpool Appliance Levelling Leg
17
W10465685 Whirlpool Retainer Assembly
18
9757239 Whirlpool Oven Door Rod
19
W10404688 Whirlpool Bracket Support
20
W11728255 Whirlpool Service Bracket
21
WPW10326122 Whirlpool Black Cover
22
Back, Main
23
WP9757262 Whirlpool Light Switch
24
W11594027 Whirlpool Range Oven Light Socket
25
RANGE ONLY 40W 120V APPL BULB
26
WP3196175 Whirlpool Screw
27
WPW10181986 Whirlpool Oven Sensor
28
W10877054 Whirlpool Spacer Assembly
29
SCREW
30
WP3400016 Whirlpool Screw Assembly
31
3196172 Whirlpool Oven Screw
32
WPW10107820 Whirlpool Door Latch
33
WPW10067840 Whirlpool Screw
34
Rod, Latch
35
WP3196154 Whirlpool Screw Assembly
36
W10450380 Whirlpool Retainer
37
W10647259 Whirlpool Hinge Receiver
38
WP9761013 Whirlpool Door Latch
39
Nut
←
