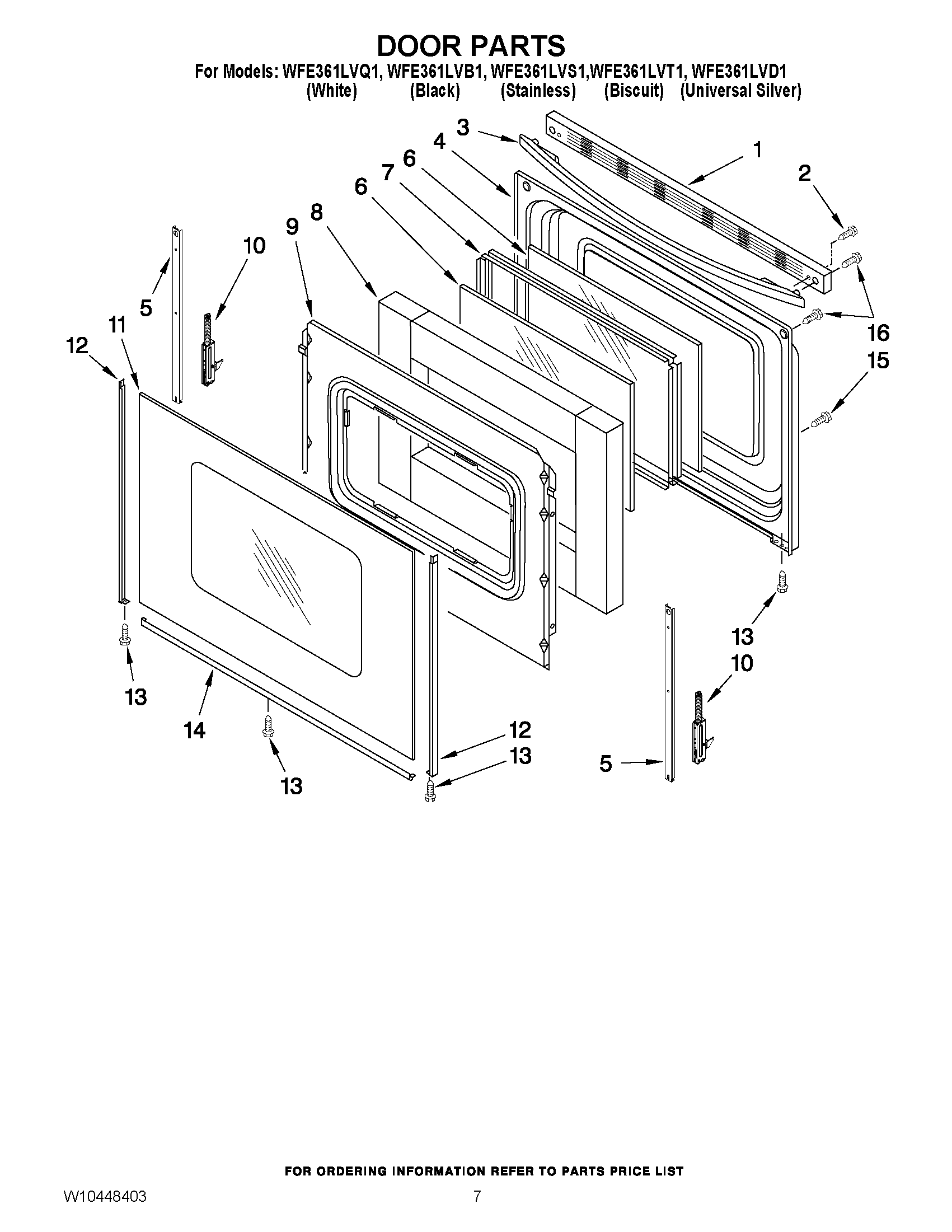

WFE361LVS1 05 – DOOR PARTS

Products

Position	Product
1	TRIM-VENT
1	WPW10310923 Whirlpool Vent Trim
1	W10817433 Whirlpool Vent Trim
2	W10817436 Whirlpool Screw
3	HANDLE, DOOR (BISCUIT)
3	W10817434 Whirlpool Door Handle
3	WPW10323589 Whirlpool Door Handle
3	WPW10144883 Whirlpool Door Handle
4	WP9761344 Whirlpool Door Liner
5	W11502236 Whirlpool Door Trim
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	WPW10299224 Whirlpool Range Door Hinge Assembly with Spring
10	WPW10299227 Whirlpool Range Door Hinge
11	WPW10118455 Whirlpool Door Glass Assembly
11	WPW10330077 Whirlpool Door Glass
11	Glass, Outer Door (Biscuit)
11	WPW10118454 Whirlpool Door Outer Glass White
12	W10761014 Whirlpool Right Door Trim
12	W10761018 Whirlpool Dishwasher Left Door Trim
12	WP8523166 Whirlpool Door Trim
12	WP8523167 Whirlpool Door Trim Assembly
12	WP8523172 Whirlpool Left Door Trim
12	WP8523173 Whirlpool Door Trim
13	W10491985 Whirlpool Screw
14	Trim, Bottom (Universal Silver)
14	WP8523175 Whirlpool Door Trim Assembly
14	WP8523178 Whirlpool Door Trim
14	WP8523177 Whirlpool Door Trim Assembly
15	WPW10031790 Whirlpool Screw
16	W10777162 Whirlpool Screw
