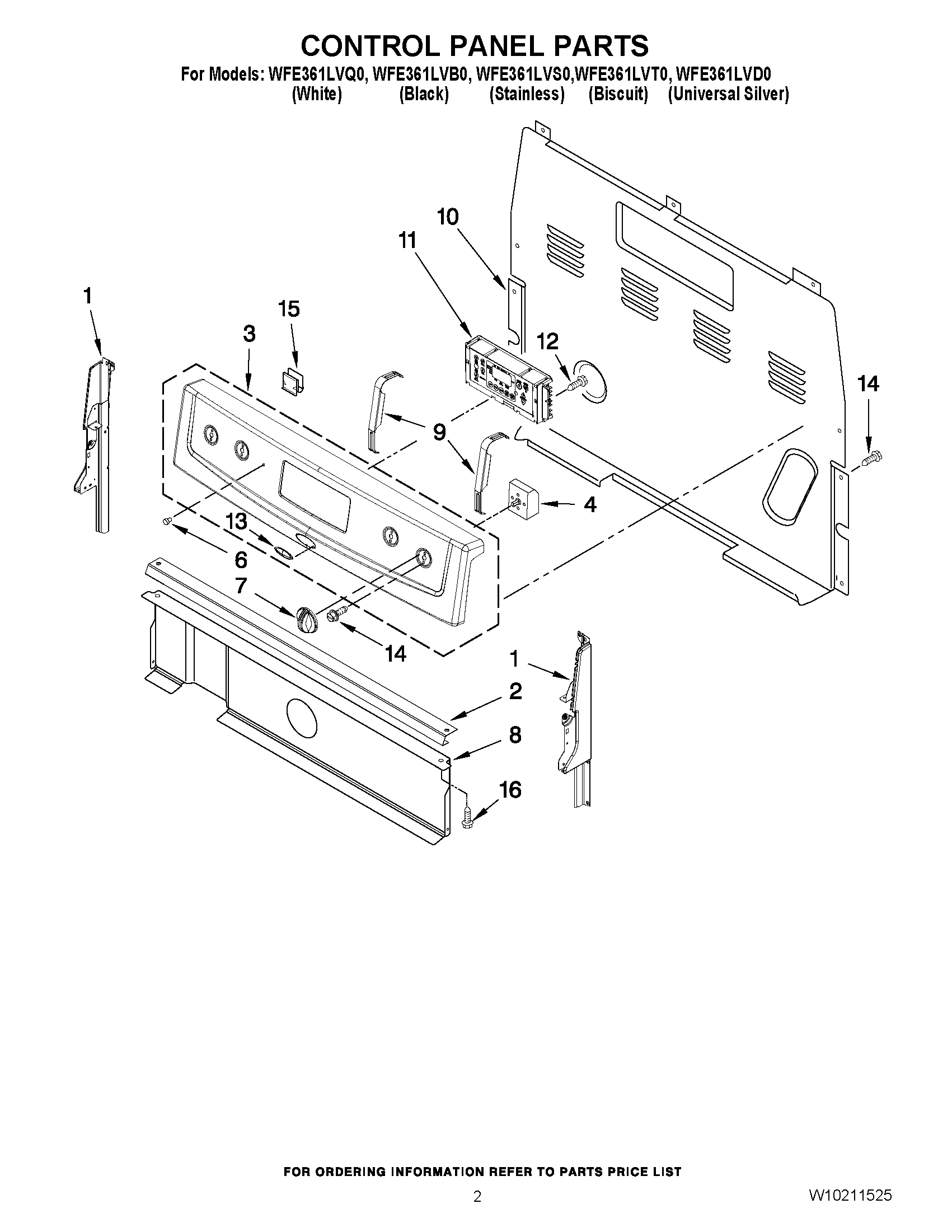

WFE361LVT0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W11230612 Whirlpool Panel End Cap
1	W11219370 Whirlpool Endcap Panel
1	W11219365 Whirlpool Panel Endcap
1	W11219665 Whirlpool Panel Endcap
1	W11219664 Whirlpool Endcap Panel
1	W11230611 Whirlpool Panel Endcap
2	W10525121 Whirlpool Control Bracket
3	Panel, Control (White)
3	Panel, Control (Biscuit)
3	Panel, Control (Black)
3	Panel, Control (Universal Silver)
3	Panel, Control (Stainless)
4	WP3149404 Whirlpool Oven Surface Element Switch
4	WP3149400 Whirlpool Oven Infinite Switch
4	WPW10149355 Whirlpool Infinite Switch
6	WP3196068 Whirlpool Light Lens
7	WP9761964 Whirlpool Knob
7	WP9761962 Whirlpool Range Stove Burner Control Knob
7	WP9761963 Whirlpool Knob Assembly
8	W10134247 Whirlpool Heat Shield
9	BRACKET, MOUNTING EOC
10	WP8272473 Whirlpool Rear Cover
11	W10876180 Whirlpool Electronic Control Board
12	SCREW
13	Badge
14	WP3400882 Whirlpool Screw
15	WP8273564 Whirlpool Clip
16	3196166 Whirlpool Screw
16	WP3400832 Whirlpool Screw
16	WPL 8281194
