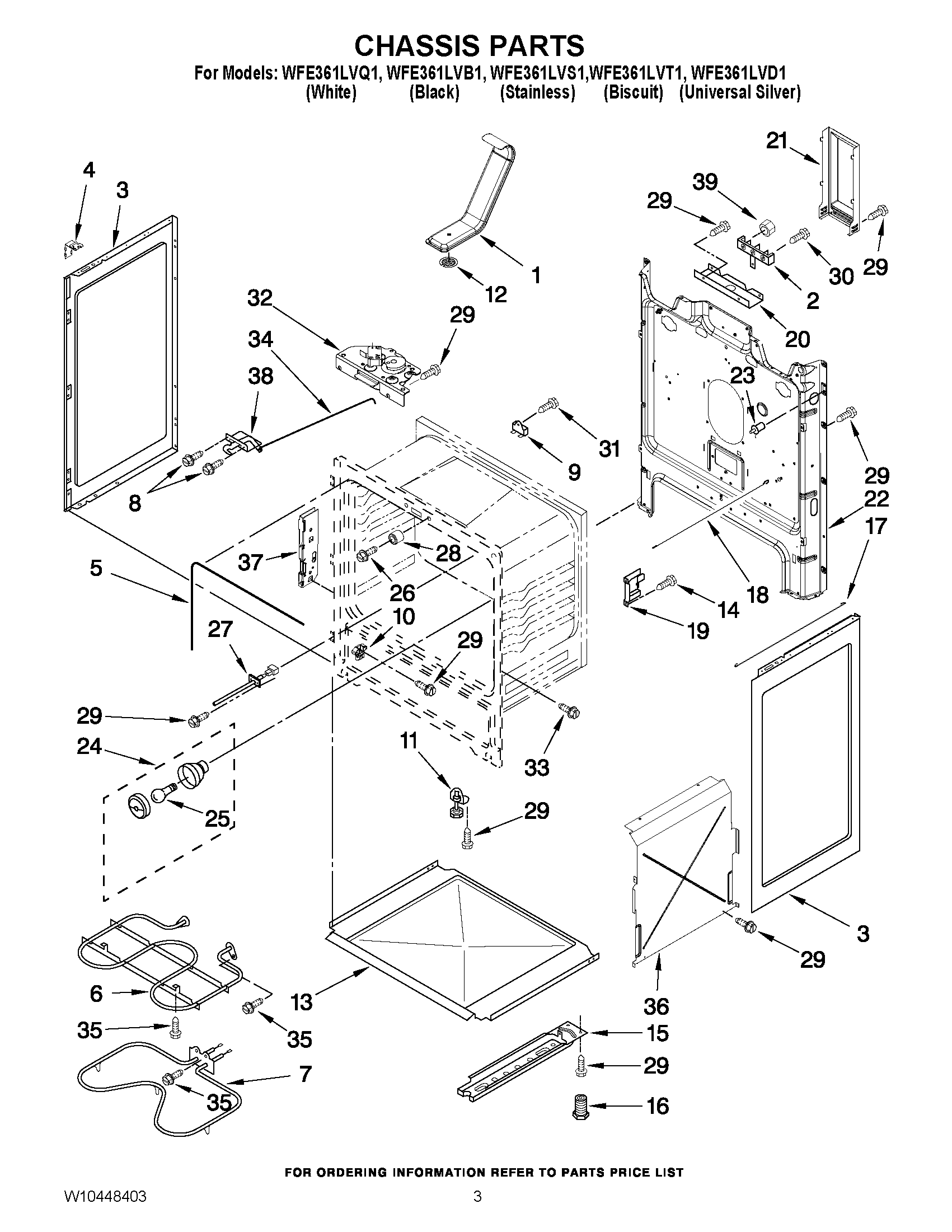

WFE361LVT1 03 – CHASSIS PARTS

Products

Position	Product
NI	WPW10208653 Whirlpool Insulation
NI	W11684918 Whirlpool Insulation
NI	WP8272612 Whirlpool Insulation
1	WPW10134285 Whirlpool Vent Tube
2	WPW10245259 Whirlpool Terminal Block
3	W11730303 Whirlpool Side Panel
3	W10162246 Whirlpool Side Panel
3	WPW10575396 Whirlpool Side Panel
4	W10137382 Whirlpool Clip
5	W11542153 Whirlpool Door Gasket
6	W10856603 Whirlpool Broil Element
7	WPW10308477 Whirlpool Bake Element
8	W11169708 Whirlpool Screw
9	WP3196548 Whirlpool Thermal Fuse
10	WPW10114344 Whirlpool Drawer Glide
11	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
12	9761301 Whirlpool Oven Screen
13	WP8054068 Whirlpool Retainer
14	WP3196557 Whirlpool Screw
15	WPW10306546 Whirlpool Base Rail
16	WPW10058460 Whirlpool Appliance Levelling Leg
17	W10465685 Whirlpool Retainer Assembly
18	9757239 Whirlpool Oven Door Rod
19	W10404688 Whirlpool Bracket Support
20	W11728255 Whirlpool Service Bracket
21	WPW10326122 Whirlpool Black Cover
22	Back, Main
23	WP9757262 Whirlpool Light Switch
24	W11594027 Whirlpool Range Oven Light Socket
25	RANGE ONLY 40W 120V APPL BULB
26	WP3196175 Whirlpool Screw
27	WPW10181986 Whirlpool Oven Sensor
28	W10877054 Whirlpool Spacer Assembly
29	SCREW
30	WP3400016 Whirlpool Screw Assembly
31	3196172 Whirlpool Oven Screw
32	WPW10107820 Whirlpool Door Latch
33	WPW10067840 Whirlpool Screw
34	Rod, Latch
35	WP3196154 Whirlpool Screw Assembly
36	W10450380 Whirlpool Retainer
37	W10647259 Whirlpool Hinge Receiver
38	WP9761013 Whirlpool Door Latch
39	Nut
