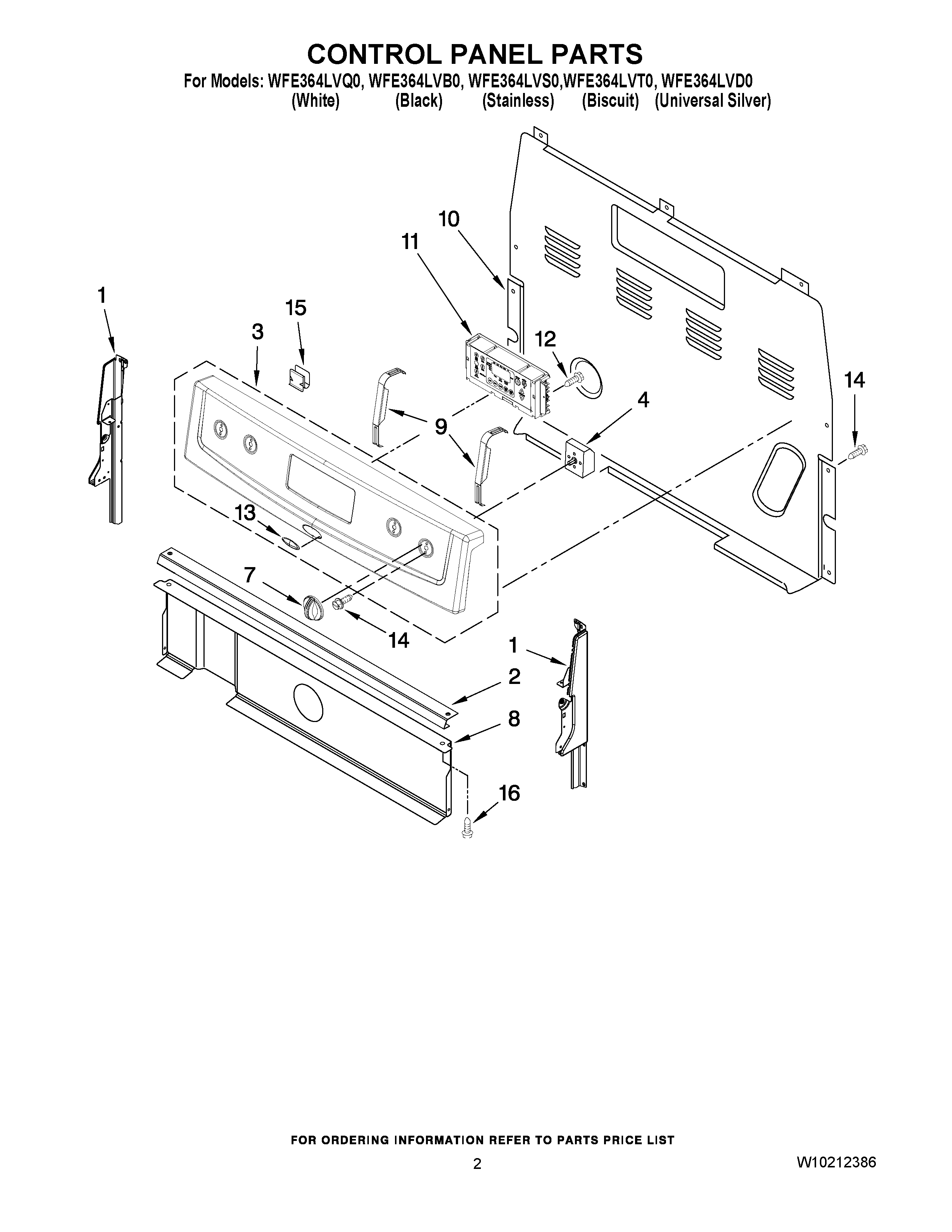

WFE364LVQ0 02 – CONTROL PANEL PARTS

WFE364LVQ0 02 – CONTROL PANEL PARTS

Written by

in

WFE364LVQ0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11230611 Whirlpool Panel Endcap
1W11219370 Whirlpool Endcap Panel
1W11219365 Whirlpool Panel Endcap
1W11219665 Whirlpool Panel Endcap
1W11219664 Whirlpool Endcap Panel
1W11230612 Whirlpool Panel End Cap
2W10525121 Whirlpool Control Bracket
3Panel, Control (Black)
3Panel, Control (Universal Silver)
3Panel, Control (Biscuit)
3Panel, Control (White)
3Panel, Control (Stainless)
4WPW10149355 Whirlpool Infinite Switch
4WP3149404 Whirlpool Oven Surface Element Switch
7WP9761963 Whirlpool Knob Assembly
7WP9761962 Whirlpool Range Stove Burner Control Knob
7WP9761964 Whirlpool Knob
8W10134247 Whirlpool Heat Shield
9BRACKET, MOUNTING EOC
10WP8272473 Whirlpool Rear Cover
11WPW10271737 Whirlpool Range Electronic Control Board
11Control, Range (Biscuit)
12SCREW
13Nameplate
14WP3400882 Whirlpool Screw
15WP8273564 Whirlpool Clip
163196166 Whirlpool Screw
16WP3400832 Whirlpool Screw
16WPL 8281194
