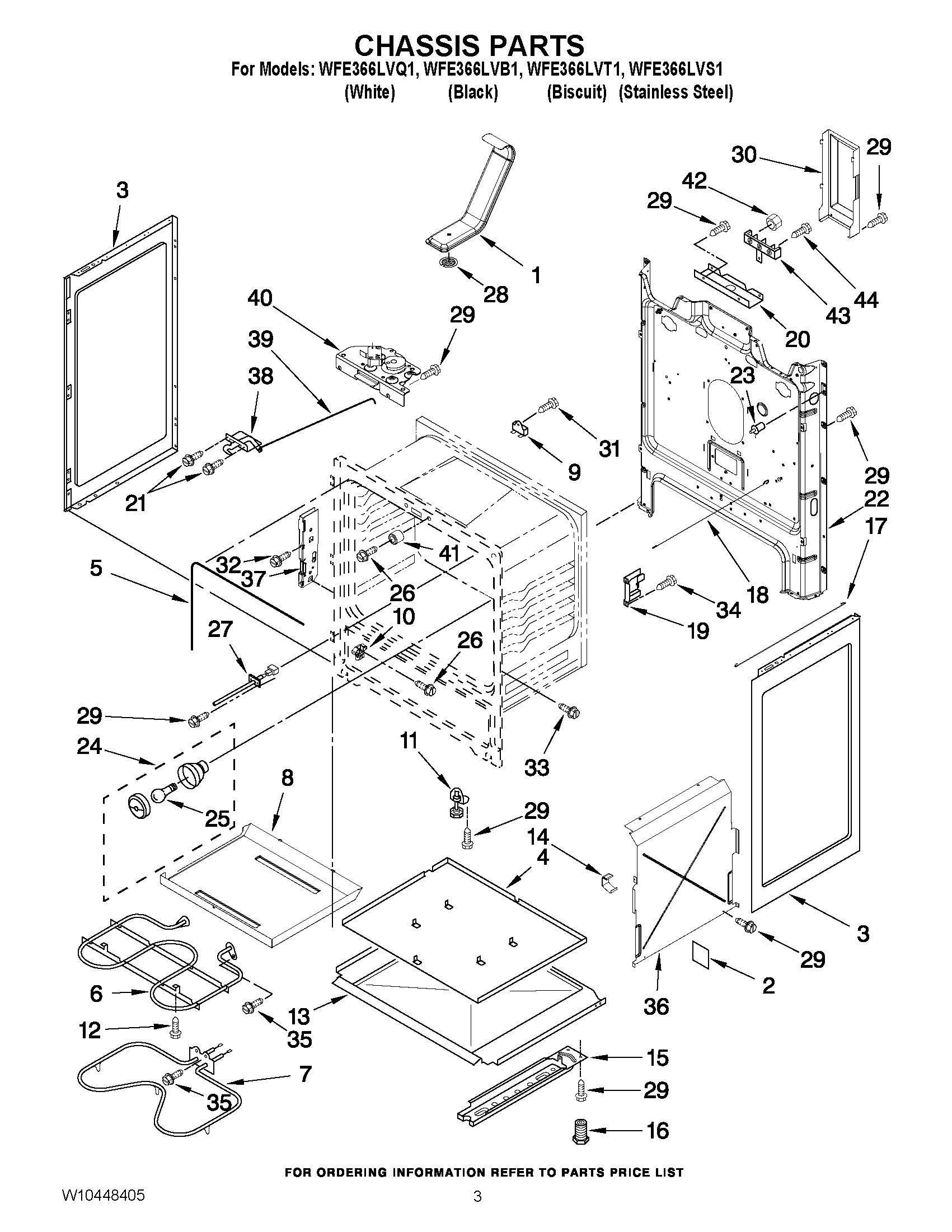

WFE366LVB1 03 – CHASSIS PARTS
Written by
in
WFE366LVB1 03 – CHASSIS PARTS
Products
Position
Product
NI
WPW10208653 Whirlpool Insulation
NI
W10326347 Whirlpool Insulation
NI
W11684918 Whirlpool Insulation
1
WPW10134285 Whirlpool Vent Tube
2
W10646923 Whirlpool Insulator
3
W11730303 Whirlpool Side Panel
3
W10162246 Whirlpool Side Panel
3
WPW10575396 Whirlpool Side Panel
4
W10134125 Whirlpool Retainer Clip
5
W11542153 Whirlpool Door Gasket
6
W10856603 Whirlpool Broil Element
7
WP9755770 Whirlpool Bake Element
8
W10183712 Whirlpool Bake Tray
9
WP3196548 Whirlpool Thermal Fuse
10
WPW10114344 Whirlpool Drawer Glide
11
WPW10341186 Whirlpool Refrigerator Front Levelling Leg
12
WP3196154 Whirlpool Screw Assembly
13
W10134121 Whirlpool Insulation Tray
14
W10137382 Whirlpool Clip
15
WPW10306546 Whirlpool Base Rail
16
WPW10058460 Whirlpool Appliance Levelling Leg
17
W10465685 Whirlpool Retainer Assembly
18
9757239 Whirlpool Oven Door Rod
19
W10404688 Whirlpool Bracket Support
20
W11728255 Whirlpool Service Bracket
21
W11169708 Whirlpool Screw
22
Back, Main
23
WP9757262 Whirlpool Light Switch
24
W11594027 Whirlpool Range Oven Light Socket
25
RANGE ONLY 40W 120V APPL BULB
26
WP3196175 Whirlpool Screw
27
WPW10181986 Whirlpool Oven Sensor
28
9761301 Whirlpool Oven Screen
29
SCREW
30
WPW10326122 Whirlpool Black Cover
31
3196172 Whirlpool Oven Screw
32
W10777162 Whirlpool Screw
33
WPW10067840 Whirlpool Screw
34
WP3196557 Whirlpool Screw
35
WP3196174 Whirlpool Screw
36
W10450380 Whirlpool Retainer
37
W10647259 Whirlpool Hinge Receiver
38
WP9761013 Whirlpool Door Latch
39
Rod, Latch
40
WPW10107820 Whirlpool Door Latch
41
W10877054 Whirlpool Spacer Assembly
42
Nut
43
WPW10245259 Whirlpool Terminal Block
44
WP3400016 Whirlpool Screw Assembly
←
