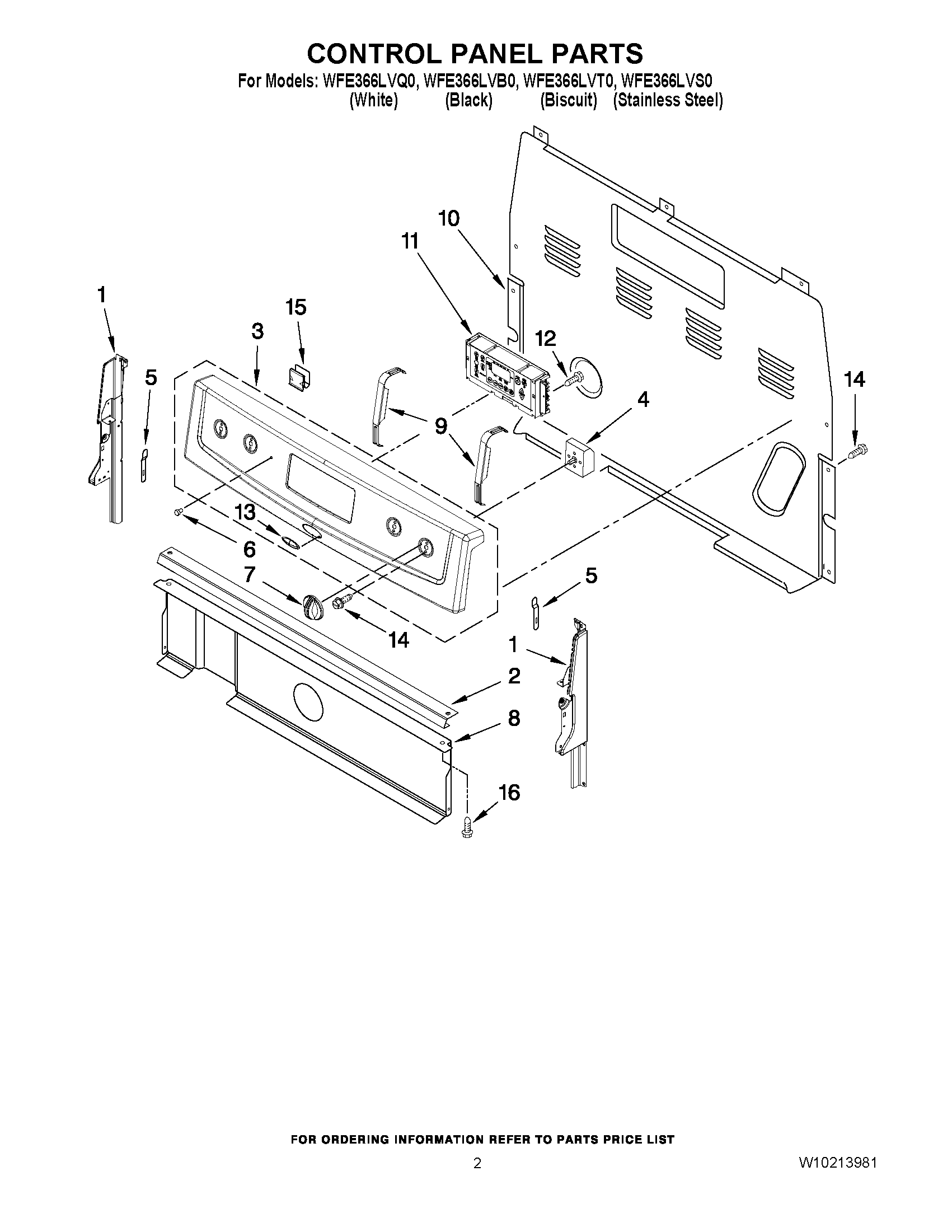

WFE366LVS0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W11230611 Whirlpool Panel Endcap
1	W11230612 Whirlpool Panel End Cap
1	W11219370 Whirlpool Endcap Panel
1	W11219365 Whirlpool Panel Endcap
1	W11219664 Whirlpool Endcap Panel
1	W11219665 Whirlpool Panel Endcap
2	W10525121 Whirlpool Control Bracket
3	Panel, Control (Black)
3	Panel, Control (White)
3	Panel, Control (Stainless Steel)
3	Panel, Control (Biscuit)
4	WPW10149355 Whirlpool Infinite Switch
4	WPW10167742 Whirlpool Range Surface Burner Element Switch
4	SWITCH, INFINITE (LEFT - RIGHT REAR)
5	3196200 Whirlpool Clip
6	WP3196068 Whirlpool Light Lens
7	WP9761962 Whirlpool Range Stove Burner Control Knob
7	WP9761964 Whirlpool Knob
7	WP9761963 Whirlpool Knob Assembly
8	W10134247 Whirlpool Heat Shield
9	BRACKET, MOUNTING EOC
10	WP8272473 Whirlpool Rear Cover
11	WPW10271737 Whirlpool Range Electronic Control Board
11	Control, Range (Biscuit)
12	SCREW
13	Badge
14	WP3400882 Whirlpool Screw
15	WP8273564 Whirlpool Clip
16	3196166 Whirlpool Screw
16	WP3400832 Whirlpool Screw
16	WPL 8281194
