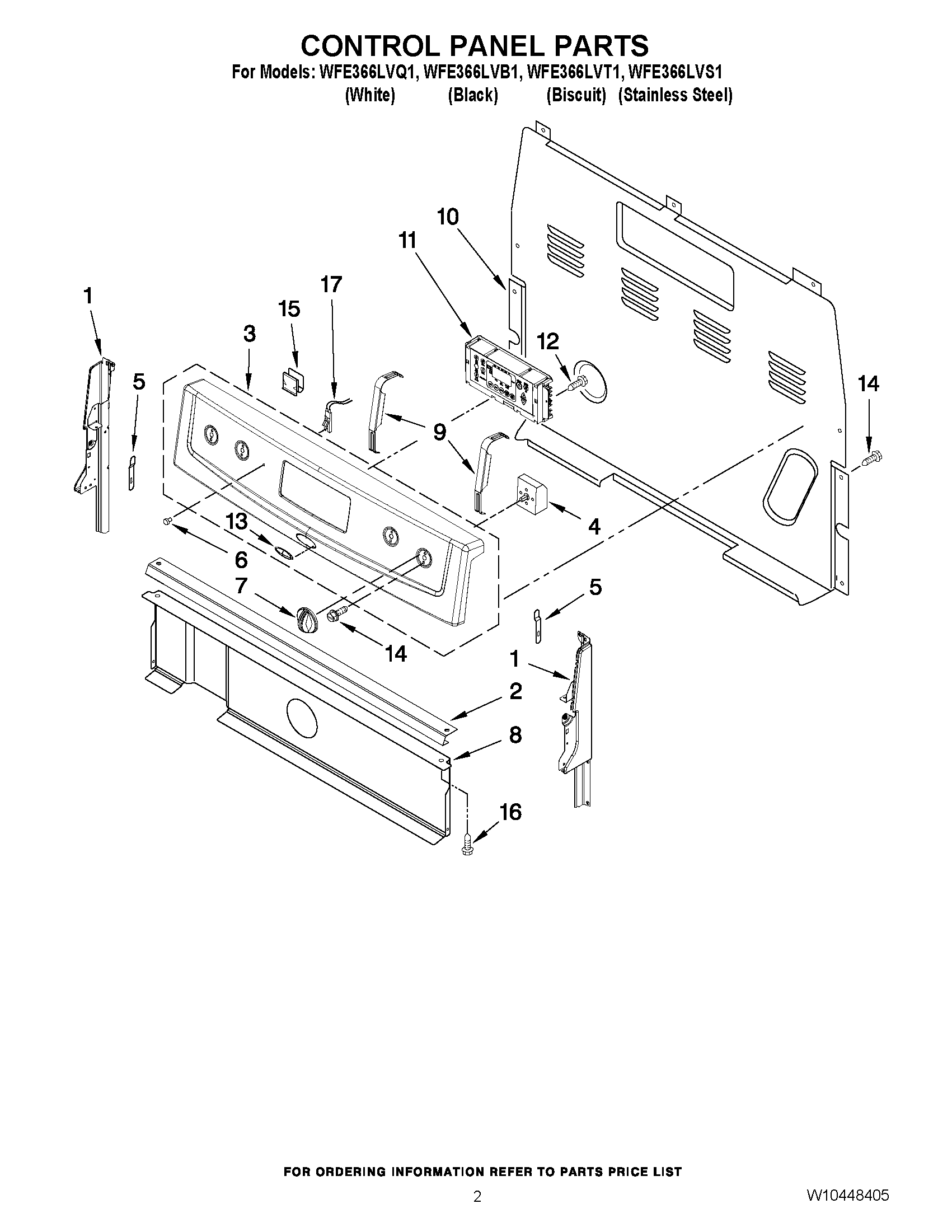

WFE366LVT1 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W11230611 Whirlpool Panel Endcap
1	W11219370 Whirlpool Endcap Panel
1	W11219365 Whirlpool Panel Endcap
1	W11219665 Whirlpool Panel Endcap
1	W11219664 Whirlpool Endcap Panel
1	W11230612 Whirlpool Panel End Cap
2	W10525121 Whirlpool Control Bracket
3	Panel, Control (Biscuit)
3	Panel, Control (Black)
3	Panel, Control (Stainless Steel)
3	Panel, Control (White)
4	WPW10167742 Whirlpool Range Surface Burner Element Switch
4	WP3149404 Whirlpool Oven Surface Element Switch
4	SWITCH-INF
5	3196200 Whirlpool Clip
6	WP3196068 Whirlpool Light Lens
7	WP9761963 Whirlpool Knob Assembly
7	WP9761964 Whirlpool Knob
7	WP9761962 Whirlpool Range Stove Burner Control Knob
8	W10134247 Whirlpool Heat Shield
9	BRACKET, MOUNTING EOC
10	WP8272473 Whirlpool Rear Cover
11	WPW10271737 Whirlpool Range Electronic Control Board
11	CONTROL, RANGE (BISCUIT)
12	SCREW
13	Badge
14	WP3400882 Whirlpool Screw
15	WP8273564 Whirlpool Clip
16	WP3196175 Whirlpool Screw
17	WP8523265 Whirlpool Indicator Light
