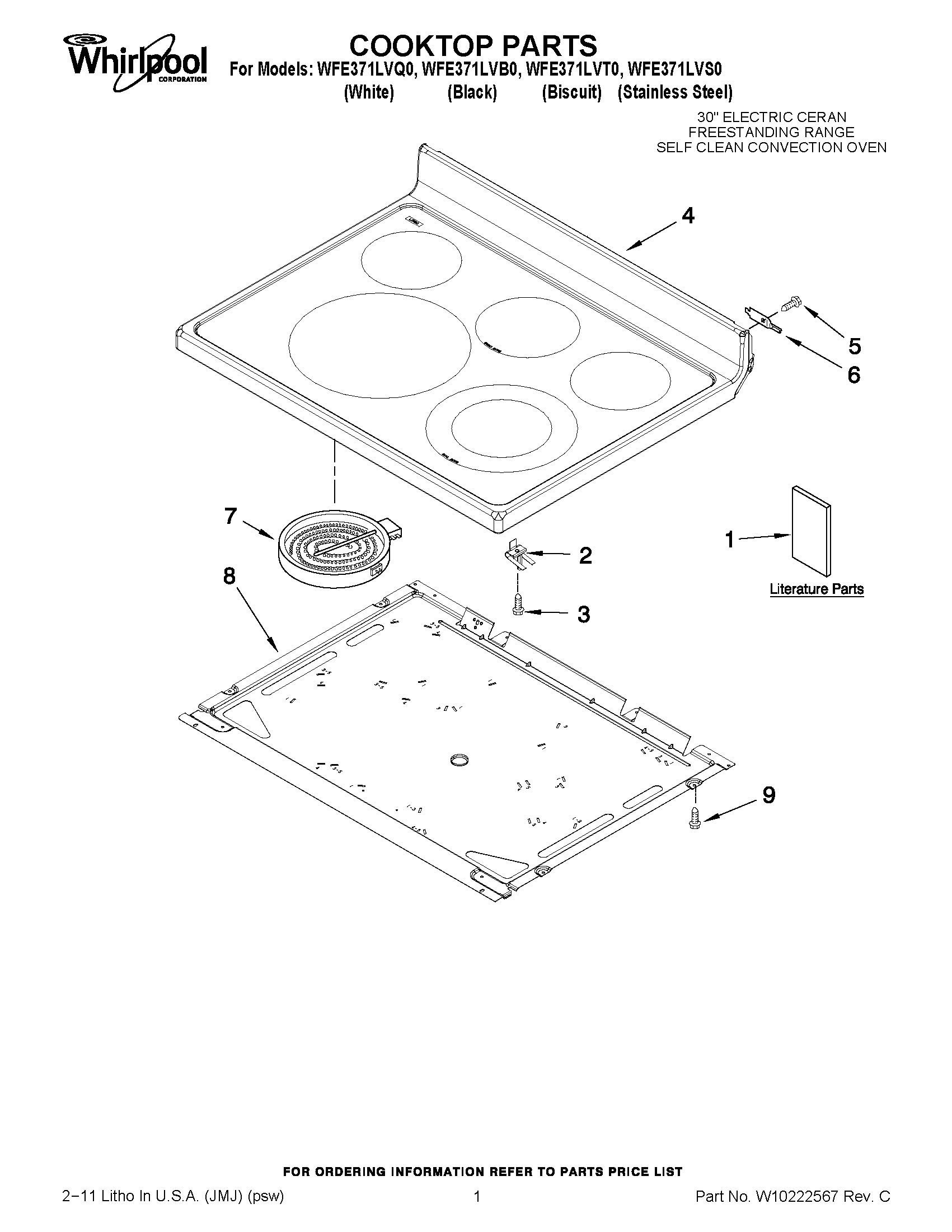

WFE371LVB0 01 – COOKTOP PARTS

WFE371LVB0 01 – COOKTOP PARTS

Written by

in

WFE371LVB0 01 – COOKTOP PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1Anti-Tip Template (English/Spanish)
1Anti-Tip Template (English/French)
1Tech Sheet
1OWNERS MANUAL
1Instructions, Installation
2WPW10225448 Whirlpool Spring Assembly
3WP3196170 Whirlpool Screw
4W10651915 Whirlpool Cooktop
4Cooktop (Biscuit)
4W10651914 Whirlpool Cooktop
5SCREW
6WP3195060 Whirlpool Cooktop Pin
7WP9762851 Whirlpool Surface Element
7W10823728 Whirlpool Surface Element
7W10823711 Whirlpool Surface Element Left Front and Right Rear
7W11517959 Whirlpool Electric Range Radiant Surface Element
8W10170526 Whirlpool Pan
9WP3196557 Whirlpool Screw
