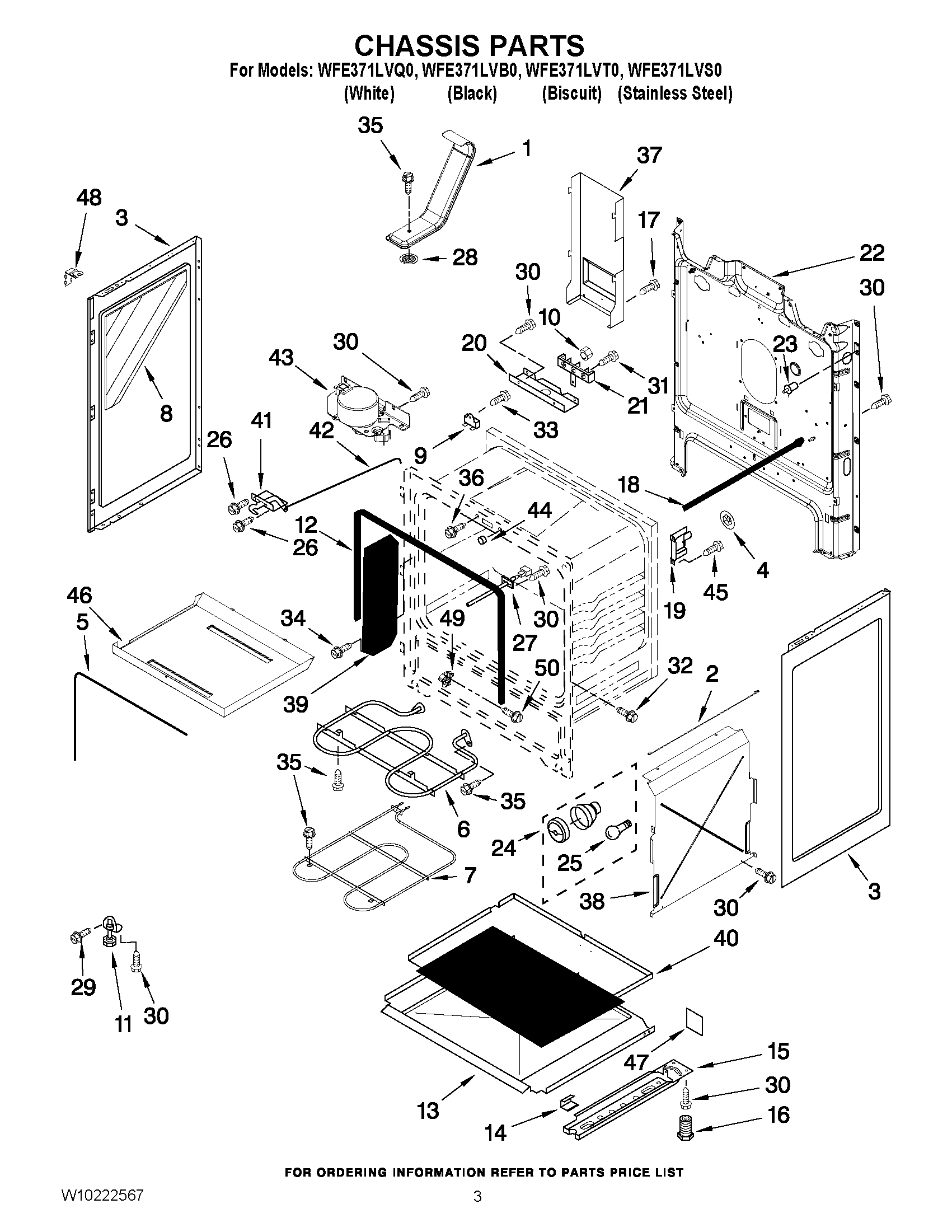

WFE371LVB0 03 – CHASSIS PARTS

WFE371LVB0 03 – CHASSIS PARTS

Written by

in

WFE371LVB0 03 – CHASSIS PARTS

Products

Position	Product
NI	W10326347 Whirlpool Insulation
NI	WPW10208653 Whirlpool Insulation
NI	8053915 Whirlpool Oven Insulation
1	WPW10134285 Whirlpool Vent Tube
2	W10465685 Whirlpool Retainer Assembly
3	W11730303 Whirlpool Side Panel
3	WPW10575396 Whirlpool Side Panel
3	W10162246 Whirlpool Side Panel
4	WP3400968 Whirlpool Nut
5	Seal, Oven Flange
6	W10856603 Whirlpool Broil Element
7	WP9755770 Whirlpool Bake Element
8	W10182346 Whirlpool Insulation Assembly
9	WP3196548 Whirlpool Thermal Fuse
10	Nut
11	WP3196037 Whirlpool Leveling Foot
12	W11542153 Whirlpool Door Gasket
13	W10134121 Whirlpool Insulation Tray
14	W10137382 Whirlpool Clip
15	WPW10306546 Whirlpool Base Rail
16	WPW10058460 Whirlpool Appliance Levelling Leg
17	SCREW
18	9757239 Whirlpool Oven Door Rod
19	W10404688 Whirlpool Bracket Support
20	W11728255 Whirlpool Service Bracket
21	WP9761958 Whirlpool Range Terminal Block
22	Back, Main
23	WP9757262 Whirlpool Light Switch
24	W11594027 Whirlpool Range Oven Light Socket
25	RANGE ONLY 40W 120V APPL BULB
26	W11169708 Whirlpool Screw
27	WPW10181986 Whirlpool Oven Sensor
28	9761301 Whirlpool Oven Screen
29	Screw
30	WP4449809 Whirlpool Screw
31	WP3400016 Whirlpool Screw Assembly
32	WPW10067840 Whirlpool Screw
33	3196172 Whirlpool Oven Screw
34	W10777162 Whirlpool Screw
35	WP3196154 Whirlpool Screw Assembly
36	WP3400832 Whirlpool Screw
37	WPW10326122 Whirlpool Black Cover
38	W10450380 Whirlpool Retainer
39	W10647259 Whirlpool Hinge Receiver
40	W10134125 Whirlpool Retainer Clip
41	WP9761013 Whirlpool Door Latch
42	Rod, Latch
43	WPW10107820 Whirlpool Door Latch
44	W10877054 Whirlpool Spacer Assembly
45	WP3196557 Whirlpool Screw
46	W10183712 Whirlpool Bake Tray
47	W10646923 Whirlpool Insulator
48	W10183541 Whirlpool Clip Assembly
49	WPW10114344 Whirlpool Drawer Glide
50	WP3196175 Whirlpool Screw
