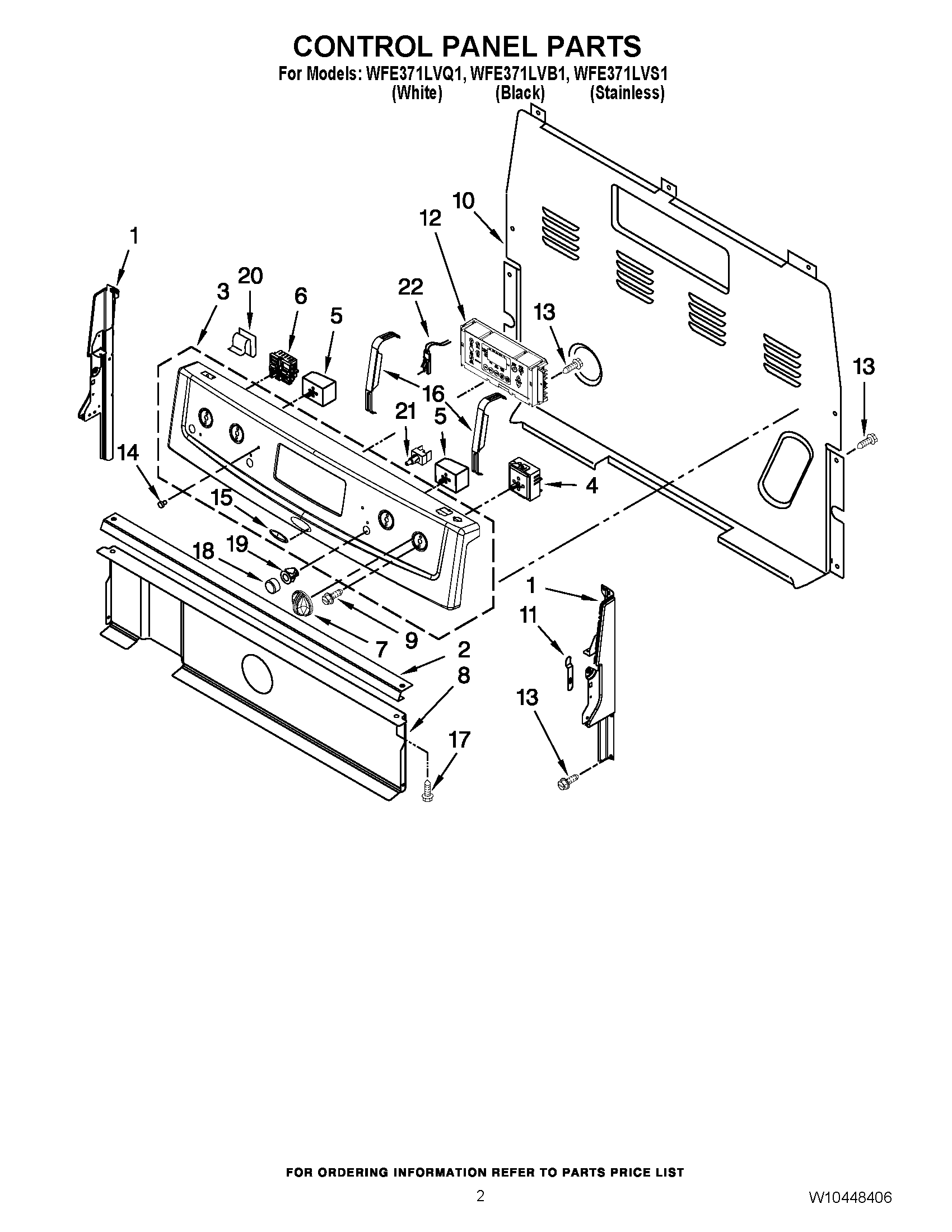

WFE371LVS1 02 – CONTROL PANEL PARTS

WFE371LVS1 02 – CONTROL PANEL PARTS

Written by

in

WFE371LVS1 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219665 Whirlpool Panel Endcap
1W11219370 Whirlpool Endcap Panel
1W11219365 Whirlpool Panel Endcap
1W11219664 Whirlpool Endcap Panel
2W10525121 Whirlpool Control Bracket
3Console (White)
3Console (Black)
3Console (Stainless Steel)
4SWITCH-INF
5WP3149404 Whirlpool Oven Surface Element Switch
6WPW10167742 Whirlpool Range Surface Burner Element Switch
7WP9761964 Whirlpool Knob
7WP9761962 Whirlpool Range Stove Burner Control Knob
8W10134247 Whirlpool Heat Shield
9WP3400882 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
113196200 Whirlpool Clip
12WPW10476353 Whirlpool Electronic Control Board
13SCREW
14WP3196068 Whirlpool Light Lens
15Badge
16BRACKET, MOUNTING EOC
17WP3196175 Whirlpool Screw
189758491 Whirlpool Oven Push Button
189757492 Whirlpool Oven Push Button
19W10217760 Whirlpool Switch Bezel
19W10217758 Whirlpool Switch Bezel
20WP8273564 Whirlpool Clip
21WP8272820 Whirlpool PB Switch
22WP8523265 Whirlpool Indicator Light
