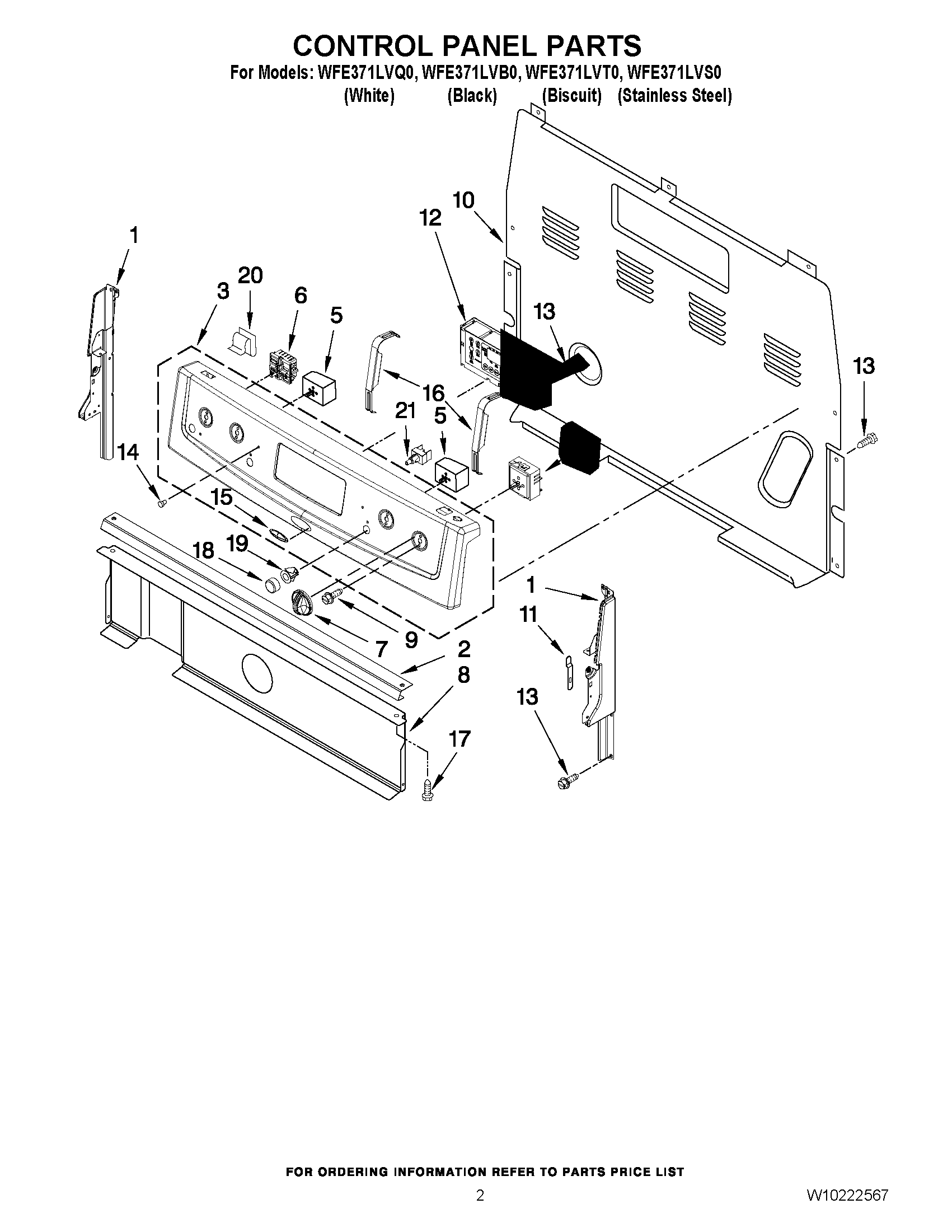

WFE371LVT0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W11230612 Whirlpool Panel End Cap
1	W11230611 Whirlpool Panel Endcap
1	W11219370 Whirlpool Endcap Panel
1	W11219365 Whirlpool Panel Endcap
1	W11219665 Whirlpool Panel Endcap
1	W11219664 Whirlpool Endcap Panel
2	W10525121 Whirlpool Control Bracket
3	Console (Stainless Steel)
3	Console (Biscuit)
3	Console (White)
3	Console (Black)
4	WPW10149355 Whirlpool Infinite Switch
5	WP3149404 Whirlpool Oven Surface Element Switch
6	WPW10167742 Whirlpool Range Surface Burner Element Switch
7	WP9761963 Whirlpool Knob Assembly
7	WP9761964 Whirlpool Knob
7	WP9761962 Whirlpool Range Stove Burner Control Knob
8	W10134247 Whirlpool Heat Shield
9	WP3400882 Whirlpool Screw
10	WP8272473 Whirlpool Rear Cover
11	3196200 Whirlpool Clip
12	WPW10476353 Whirlpool Electronic Control Board
12	WPW10173525 Whirlpool Electronic Control Board
13	SCREW
14	WP3196068 Whirlpool Light Lens
15	Nameplate
16	BRACKET, MOUNTING EOC
17	WP3400832 Whirlpool Screw
17	3196166 Whirlpool Screw
18	9758491 Whirlpool Oven Push Button
18	9757492 Whirlpool Oven Push Button
18	Button (Biscuit)
19	BEZEL (BISCUIT)
19	W10217760 Whirlpool Switch Bezel
19	W10217758 Whirlpool Switch Bezel
20	WP8273564 Whirlpool Clip
21	WP8272820 Whirlpool PB Switch
