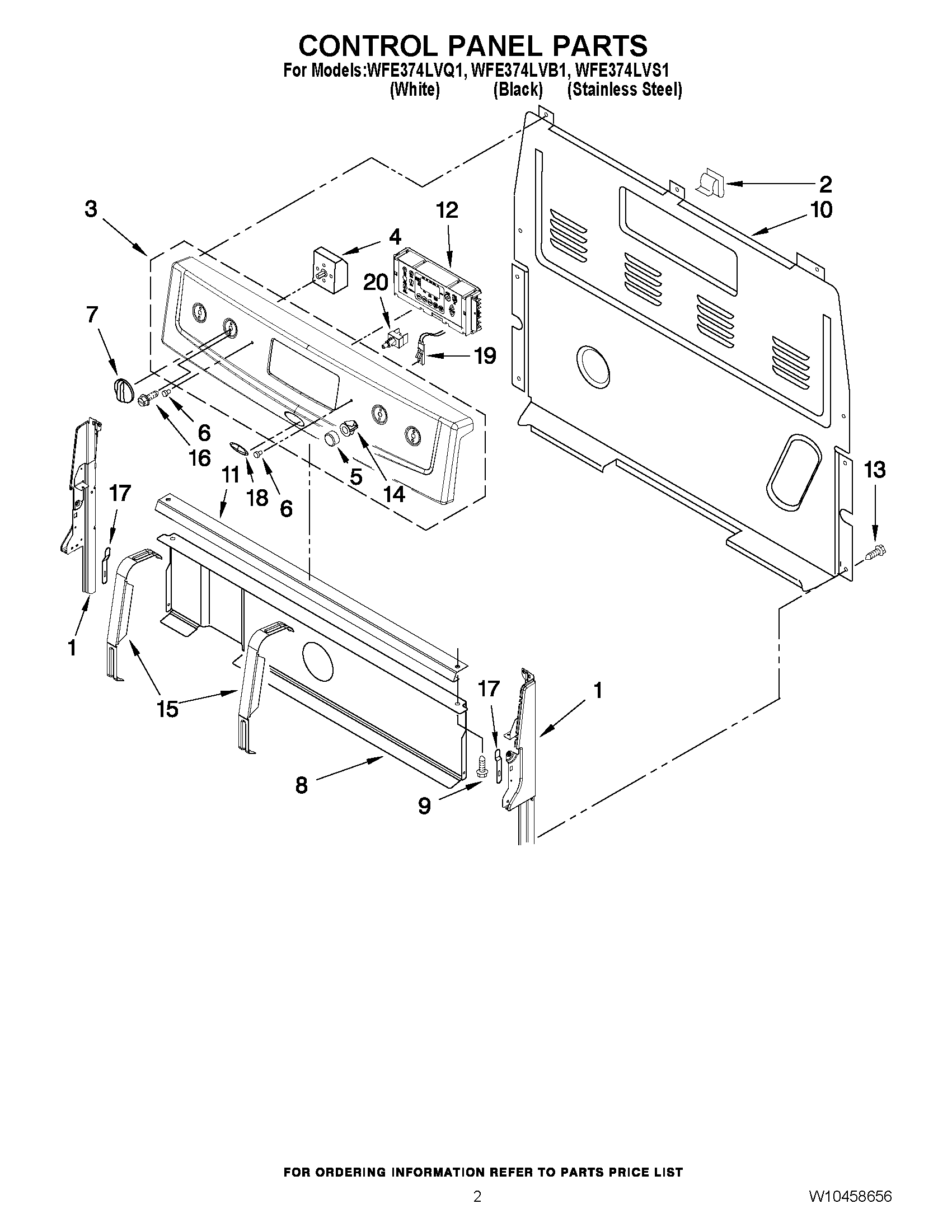

WFE374LVB1 02 – CONTROL PANEL PARTS

WFE374LVB1 02 – CONTROL PANEL PARTS

Written by

in

WFE374LVB1 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219365 Whirlpool Panel Endcap
1W11219370 Whirlpool Endcap Panel
1W11219665 Whirlpool Panel Endcap
1W11219664 Whirlpool Endcap Panel
2WP8273564 Whirlpool Clip
3PANEL, CONTROL (STAINLESS)
3Panel, Control (White)
3Panel, Control (Black)
4SWITCH-INF
4WP3149404 Whirlpool Oven Surface Element Switch
5W10217760 Whirlpool Switch Bezel
5W10217758 Whirlpool Switch Bezel
6WP3196068 Whirlpool Light Lens
7WP9761964 Whirlpool Knob
7WP9761962 Whirlpool Range Stove Burner Control Knob
8W10134247 Whirlpool Heat Shield
9WP3196175 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W10525121 Whirlpool Control Bracket
12WPW10476353 Whirlpool Electronic Control Board
13SCREW
149758491 Whirlpool Oven Push Button
149757492 Whirlpool Oven Push Button
15BRACKET, MOUNTING EOC
16WP3400882 Whirlpool Screw
173196200 Whirlpool Clip
18Badge
19WP8523265 Whirlpool Indicator Light
20WP8272820 Whirlpool PB Switch
