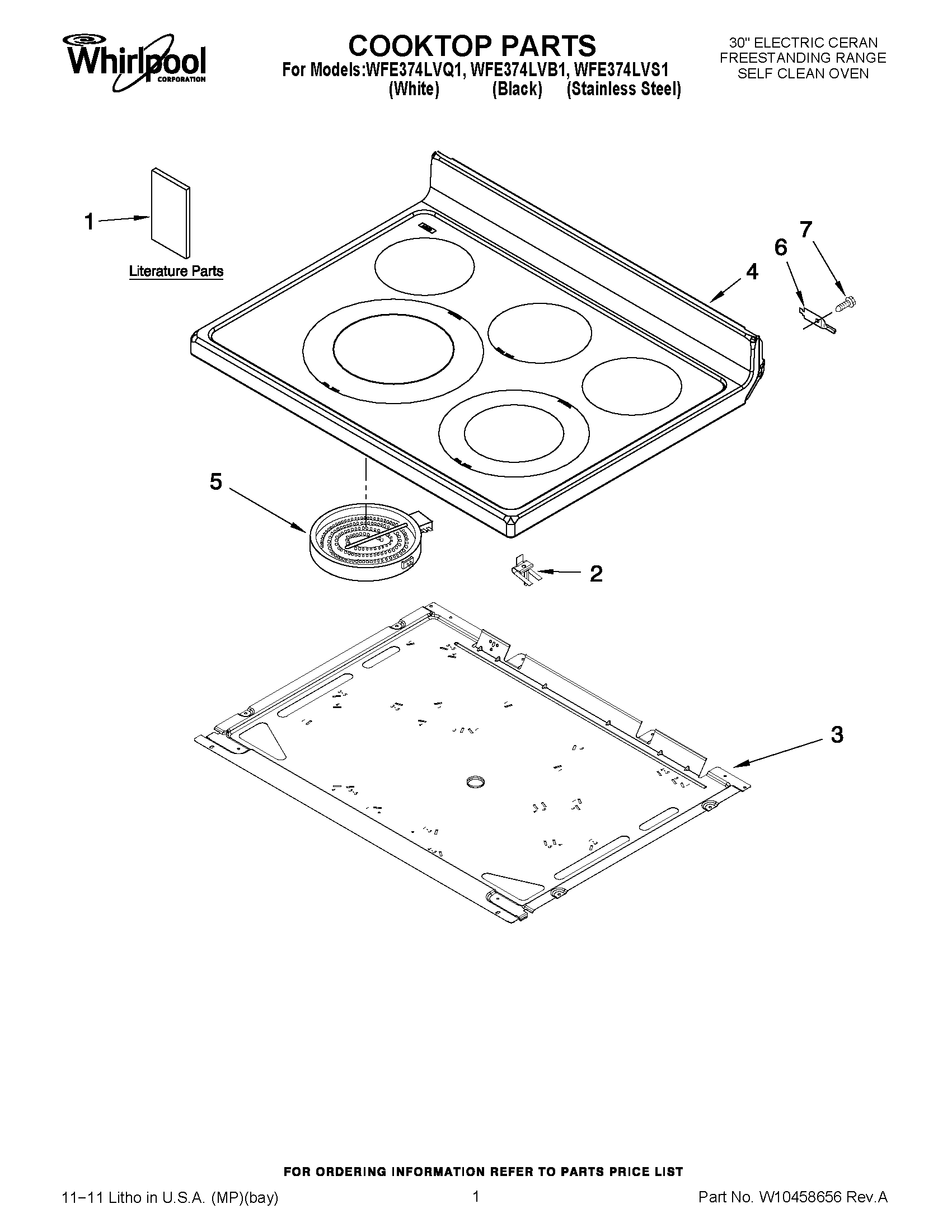

WFE374LVS1 01 – COOKTOP PARTS

WFE374LVS1 01 – COOKTOP PARTS

Written by

in

WFE374LVS1 01 – COOKTOP PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1Anti-Tip Template (English/Spanish)
1Anti-Tip Template (English/French)
1OWNERS MANUAL
1TECH SHEET
1INSTRUCTIONS, INSTALLATION
2WPW10225448 Whirlpool Spring Assembly
3W10170526 Whirlpool Pan
4Cooktop (White)
4Cooktop (Black/Stainless)
5WP9762851 Whirlpool Surface Element
5W10823711 Whirlpool Surface Element Left Front and Right Rear
5W11517959 Whirlpool Electric Range Radiant Surface Element
6WP3195060 Whirlpool Cooktop Pin
7WP3196557 Whirlpool Screw
