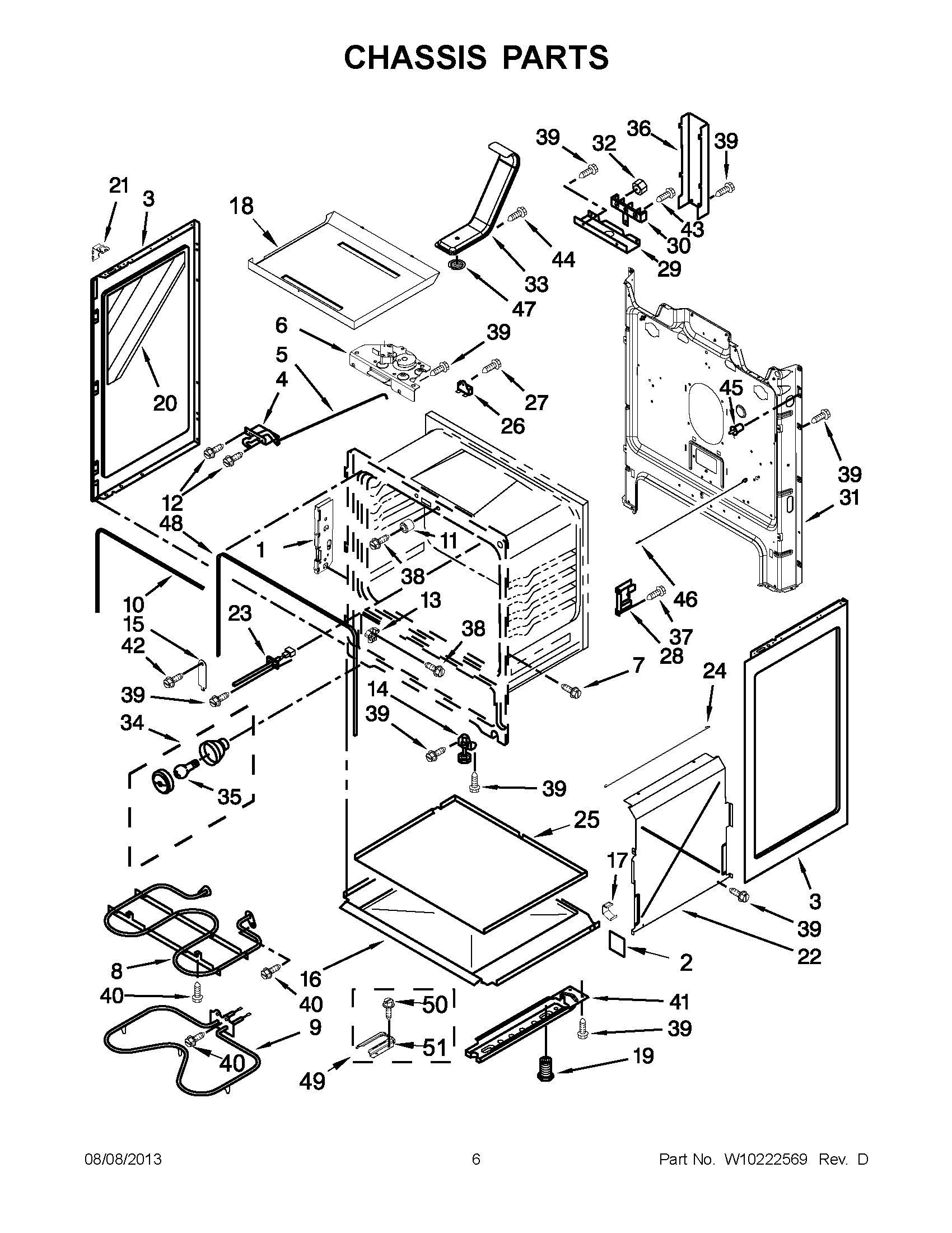

WFE374LVT0 03 – CHASSIS PARTS

Products

Position	Product
NI	W11684918 Whirlpool Insulation
NI	W10326347 Whirlpool Insulation
NI	WPW10208653 Whirlpool Insulation
1	W10647259 Whirlpool Hinge Receiver
2	W10646923 Whirlpool Insulator
3	WPW10575396 Whirlpool Side Panel
3	W11730303 Whirlpool Side Panel
4	WP9761013 Whirlpool Door Latch
5	Rod, Latch
6	WPW10107820 Whirlpool Door Latch
7	WPW10067840 Whirlpool Screw
8	W10856603 Whirlpool Broil Element
9	WP9755770 Whirlpool Bake Element
10	W11542153 Whirlpool Door Gasket
11	W10877054 Whirlpool Spacer Assembly
12	W11169708 Whirlpool Screw
13	WPW10114344 Whirlpool Drawer Glide
14	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
15	9761517 Whirlpool Oven Clip Assembly
16	W10134121 Whirlpool Insulation Tray
17	W10137382 Whirlpool Clip
18	W10183712 Whirlpool Bake Tray
19	WPW10058460 Whirlpool Appliance Levelling Leg
20	W10182346 Whirlpool Insulation Assembly
21	W10183541 Whirlpool Clip Assembly
22	W10450380 Whirlpool Retainer
23	WPW10181986 Whirlpool Oven Sensor
24	W10465685 Whirlpool Retainer Assembly
25	W10134125 Whirlpool Retainer Clip
26	WP3196548 Whirlpool Thermal Fuse
27	3196172 Whirlpool Oven Screw
28	W10404688 Whirlpool Bracket Support
29	W11728255 Whirlpool Service Bracket
30	WPW10245259 Whirlpool Terminal Block
31	BACK, MAIN
32	Nut
33	WPW10134285 Whirlpool Vent Tube
34	W11594027 Whirlpool Range Oven Light Socket
35	RANGE ONLY 40W 120V APPL BULB
36	WPW10326122 Whirlpool Black Cover
37	WP3196175 Whirlpool Screw
38	WP3400832 Whirlpool Screw
39	SCREW
40	WP3196174 Whirlpool Screw
41	RAIL, BASE (RIGHT)
41	RAIL, BASE (LEFT)
42	W10777162 Whirlpool Screw
43	WP3400016 Whirlpool Screw Assembly
44	WP489491 Whirlpool Refrigerator Screw
45	WP9757262 Whirlpool Light Switch
46	9757239 Whirlpool Oven Door Rod
47	9761301 Whirlpool Oven Screen
48	Seal, Oven Flange
50	Screw
51	W11447673 Whirlpool Range Tip Anchor
