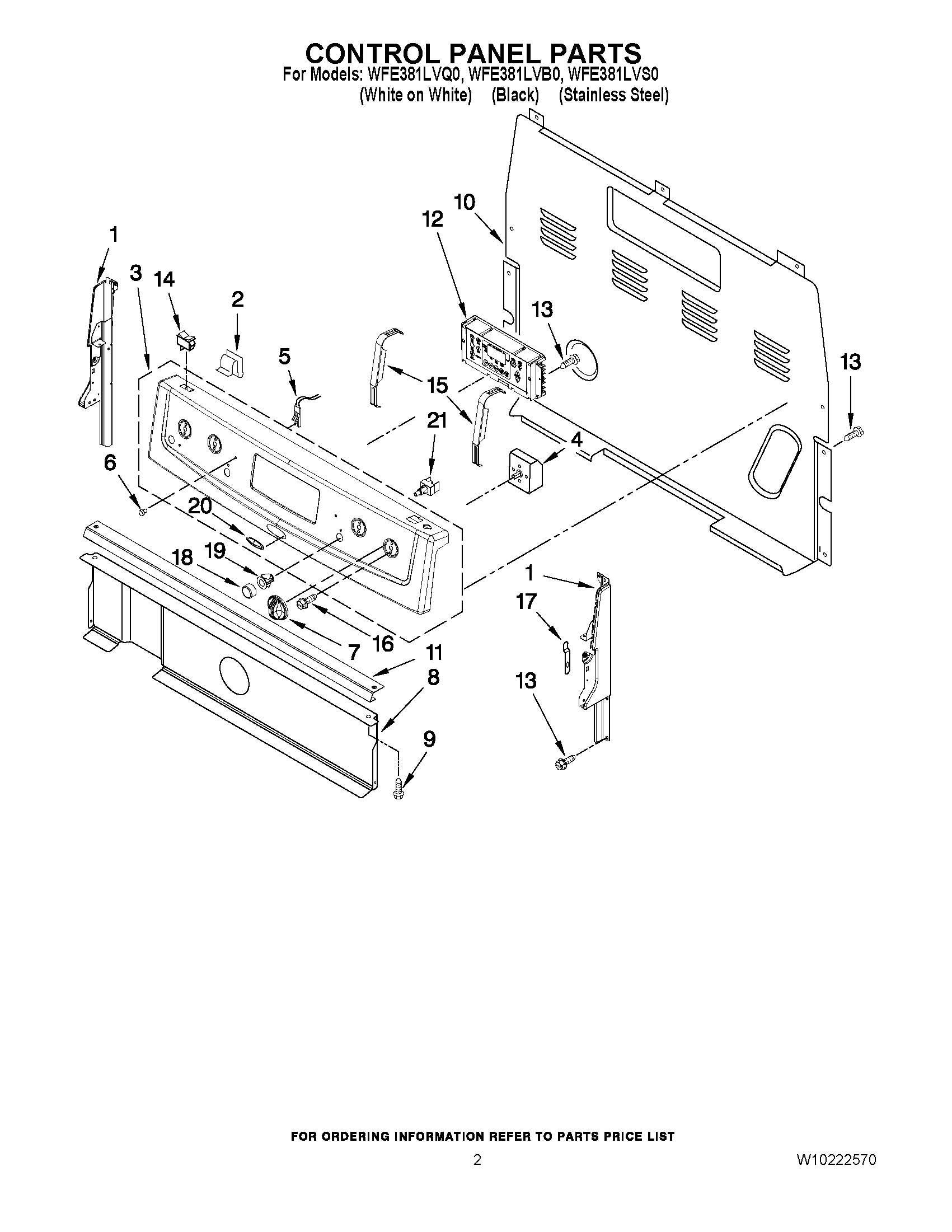

WFE381LVQ0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219664 Whirlpool Endcap Panel
1	W11219370 Whirlpool Endcap Panel
1	W11219365 Whirlpool Panel Endcap
1	W11219665 Whirlpool Panel Endcap
2	WP8273564 Whirlpool Clip
3	Panel, Control (Black)
3	Panel, Control (Stainless Steel)
3	Panel, Control (White)
4	WPW10149355 Whirlpool Infinite Switch
4	WP3149404 Whirlpool Oven Surface Element Switch
5	WP8523265 Whirlpool Indicator Light
6	WP3196068 Whirlpool Light Lens
7	WP9761962 Whirlpool Range Stove Burner Control Knob
7	WP9761964 Whirlpool Knob
8	W10134247 Whirlpool Heat Shield
9	3196166 Whirlpool Screw
9	WP3400832 Whirlpool Screw
10	WP8272473 Whirlpool Rear Cover
11	W10525121 Whirlpool Control Bracket
12	WPW10271740-includeCORE Whirlpool WPW10271740 Refrigerator Electronic Control Board + Core
12	WPW10271739 Whirlpool Range Electronic Control Board
13	SCREW
14	WP4314961 Whirlpool Lite Switch
14	3149360 Whirlpool Light Switch
15	BRACKET, MOUNTING EOC
16	WP3400882 Whirlpool Screw
17	3196200 Whirlpool Clip
18	9757492 Whirlpool Oven Push Button
18	9758491 Whirlpool Oven Push Button
19	W10217760 Whirlpool Switch Bezel
19	W10217758 Whirlpool Switch Bezel
20	Badge
21	WP8272820 Whirlpool PB Switch
