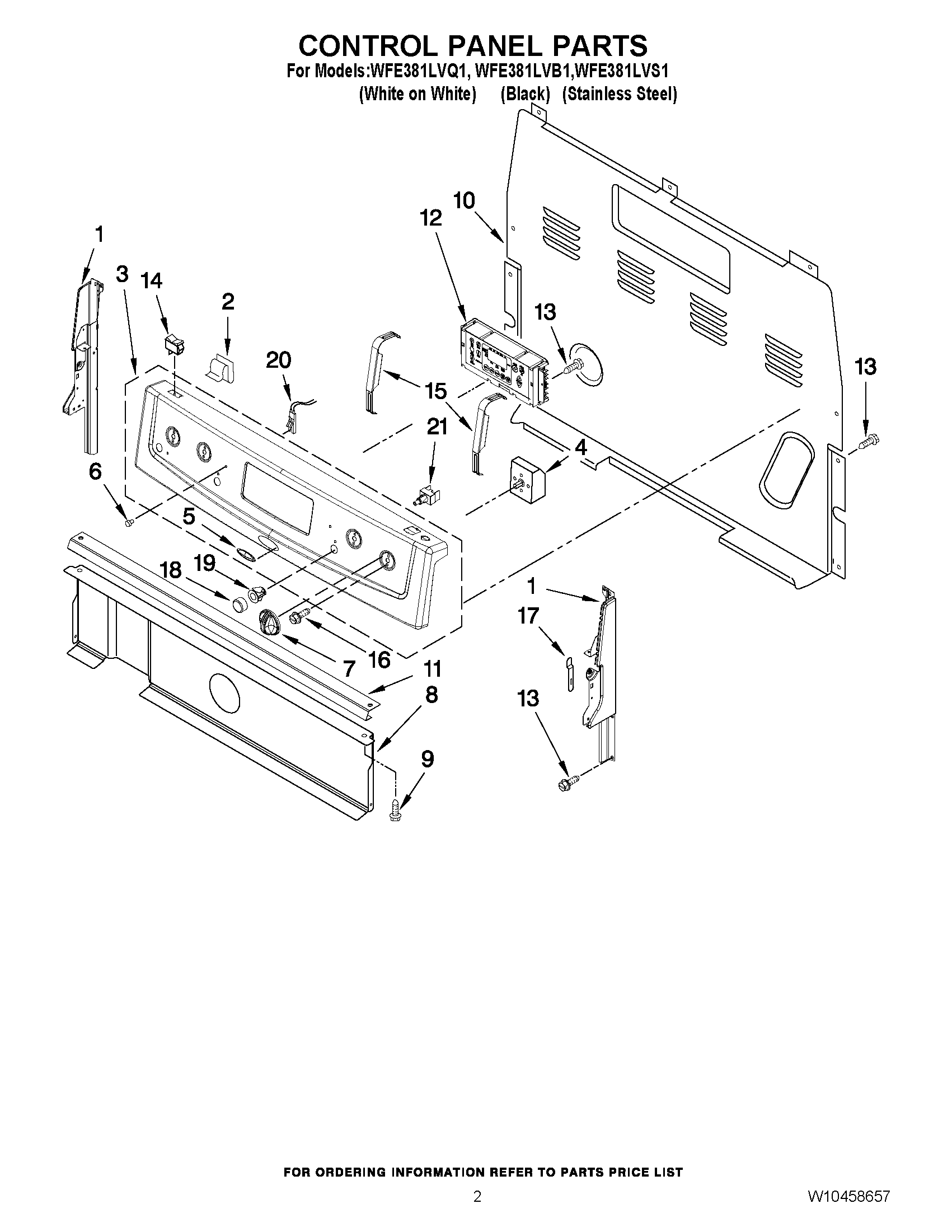

WFE381LVS1 02 – CONTROL PANEL PARTS
Written by
in
WFE381LVS1 02 – CONTROL PANEL PARTS
Products
Position
Product
1
W11219664 Whirlpool Endcap Panel
1
W11219370 Whirlpool Endcap Panel
1
W11219365 Whirlpool Panel Endcap
1
W11219665 Whirlpool Panel Endcap
2
WP8273564 Whirlpool Clip
3
Panel, Control (Black)
3
Panel, Control (Stainless Steel)
3
Panel, Control (White)
4
WP3149404 Whirlpool Oven Surface Element Switch
4
SWITCH-INF
5
Badge
6
WP3196068 Whirlpool Light Lens
7
WP9761962 Whirlpool Range Stove Burner Control Knob
7
WP9761964 Whirlpool Knob
8
W10134247 Whirlpool Heat Shield
9
WP3196175 Whirlpool Screw
10
WP8272473 Whirlpool Rear Cover
11
W10525121 Whirlpool Control Bracket
12
WPW10271740-includeCORE Whirlpool WPW10271740 Refrigerator Electronic Control Board + Core
12
WPW10271739 Whirlpool Range Electronic Control Board
13
SCREW
14
3149360 Whirlpool Light Switch
14
WP4314961 Whirlpool Lite Switch
15
BRACKET, MOUNTING EOC
16
WP3400882 Whirlpool Screw
17
3196200 Whirlpool Clip
18
9758491 Whirlpool Oven Push Button
18
9757492 Whirlpool Oven Push Button
19
W10217760 Whirlpool Switch Bezel
19
W10217758 Whirlpool Switch Bezel
20
WP8523265 Whirlpool Indicator Light
21
WP8272820 Whirlpool PB Switch
←
