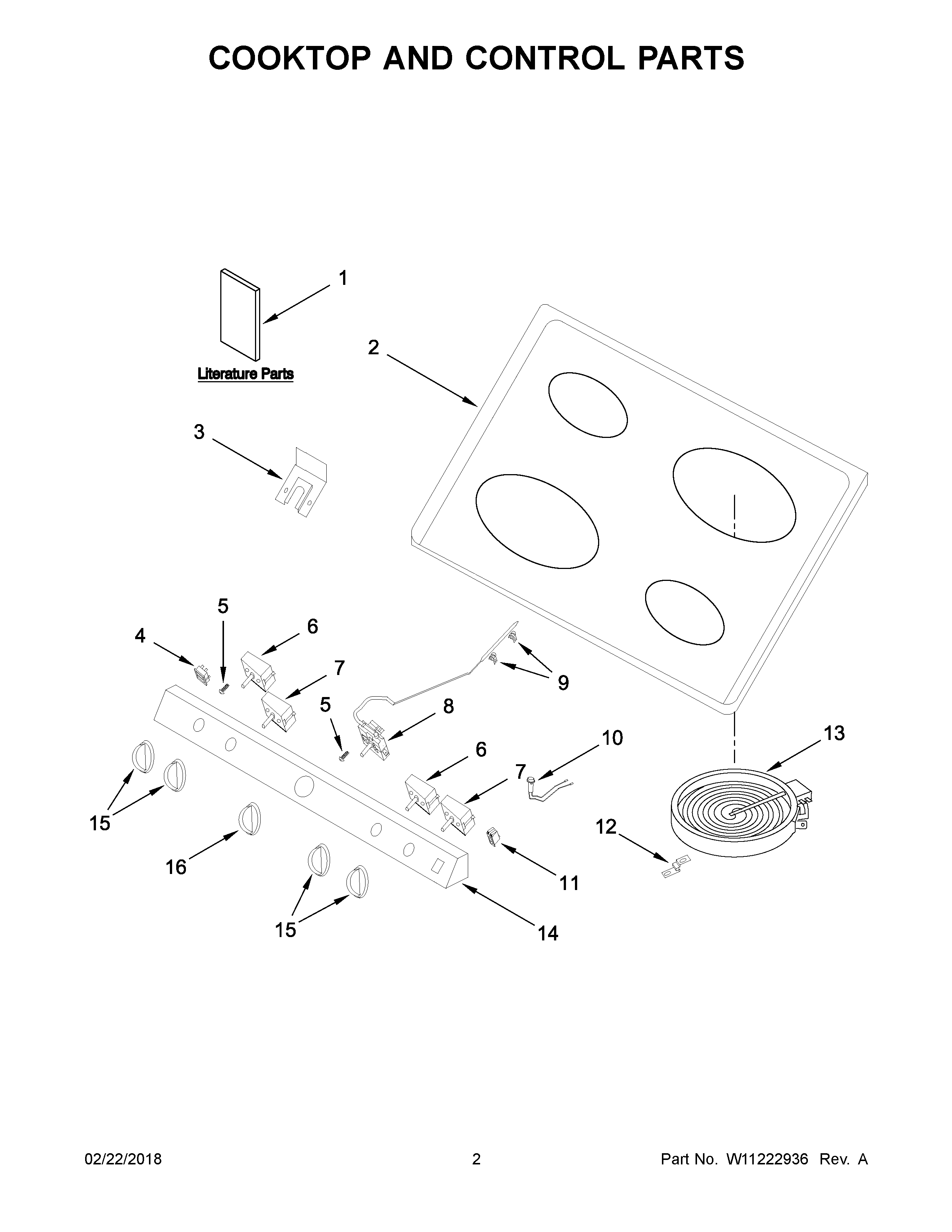

WFE500M4HS0 02 – COOKTOP AND CONTROL PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	HARNESS, WIRE
NI	WIRE, JUMPER
1	USE AND CARE GUIDE
2	W11223955 Whirlpool Cooktop Assembly
3	BRACKET, ANTI-TIP
4	INDICATOR, SURFACE AND OVEN
5	SCREW
6	W10197679 Whirlpool Infinite Switch
7	WPW10197681 Whirlpool Oven Infinite Switch
8	W11224303 Whirlpool Thermostat
9	CLIP, THERMOSTAT BULB
10	W11223435 Whirlpool Indicator Light
11	SWITCH, OVEN LIGHT
12	SPRING, ELEMENT
13	W11223964 Whirlpool Surface Element
13A	W11223965 Whirlpool Surface Element
14	W11223956 Whirlpool Control Panel
15	W11223402 Whirlpool Knob
16	KNOB, OVEN THERMOSTAT
