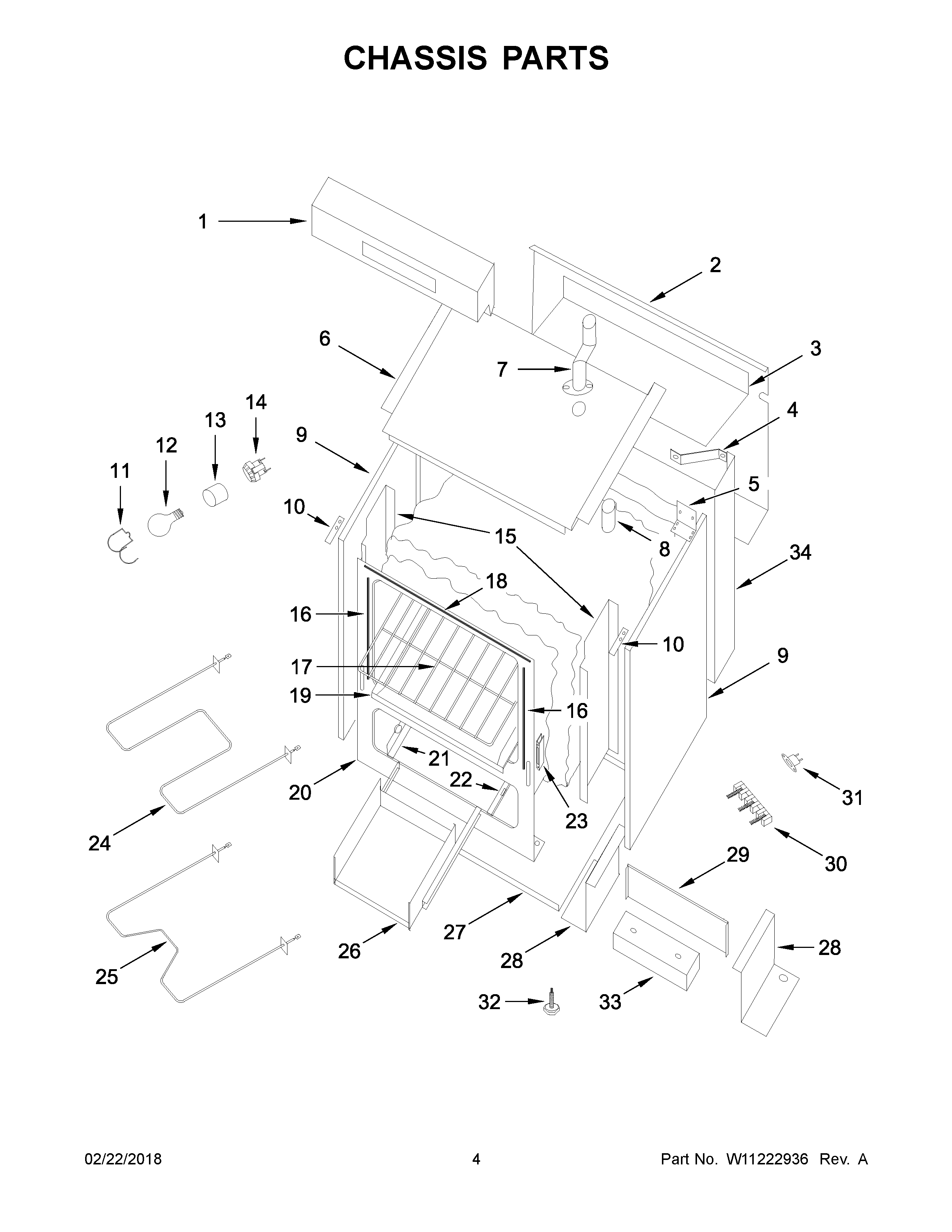

WFE500M4HS0 03 – CHASSIS PARTS

Products

Position	Product
NI	RETAINER, INSULATION
NI	INSULATION, WRAP
NI	INSULATION, BACK OR BOTTOM
1	W11222948 Whirlpool Backguard
2	W11223003 Whirlpool Rear Cover
3	DEFLECTOR, MOISTURE
4	BRACE, BACK
5	RETAINER, REAR TOP
6	BOTTOM, BURNER BOX
7	VENT TUBE, UPPER
8	VENT TUBE, LOWER OVEN
9	W11222958 Whirlpool Cabinet Panel
10	RETAINER, FRONT TOP
11	GUARD, OVEN LIGHT
12	RANGE ONLY 40W 120V APPL BULB
13	SOCKET, BULB
14	RECEPTACLE, LIGHT
15	BAFFLE, INNER SIDE
16	GASKET, OVEN SIDE
17	RACK, OVEN
18	GASKET, OVEN TOP
19	BOTTOM, OVEN
20	FRAME-FRNT
21	RUNNER, DRAWER (LEFT)
22	RUNNER, DRAWER (RIGHT)
23	RECEIVER, HINGE
24	ELEMENT, BROIL
25	ELEMENT, BAKE
26	W11222999 Whirlpool Utility Drawer
27	BOTTOM, MAIN
28	SUPPORT, REAR SIDE
29	CROSS BRACE, REAR
30	WPW10245259 Whirlpool Terminal Block
31	4364176 Whirlpool Limit Switch
32	LEG, LEVELER
33	COUNTERWEIGHT
34	BACK, MAIN
