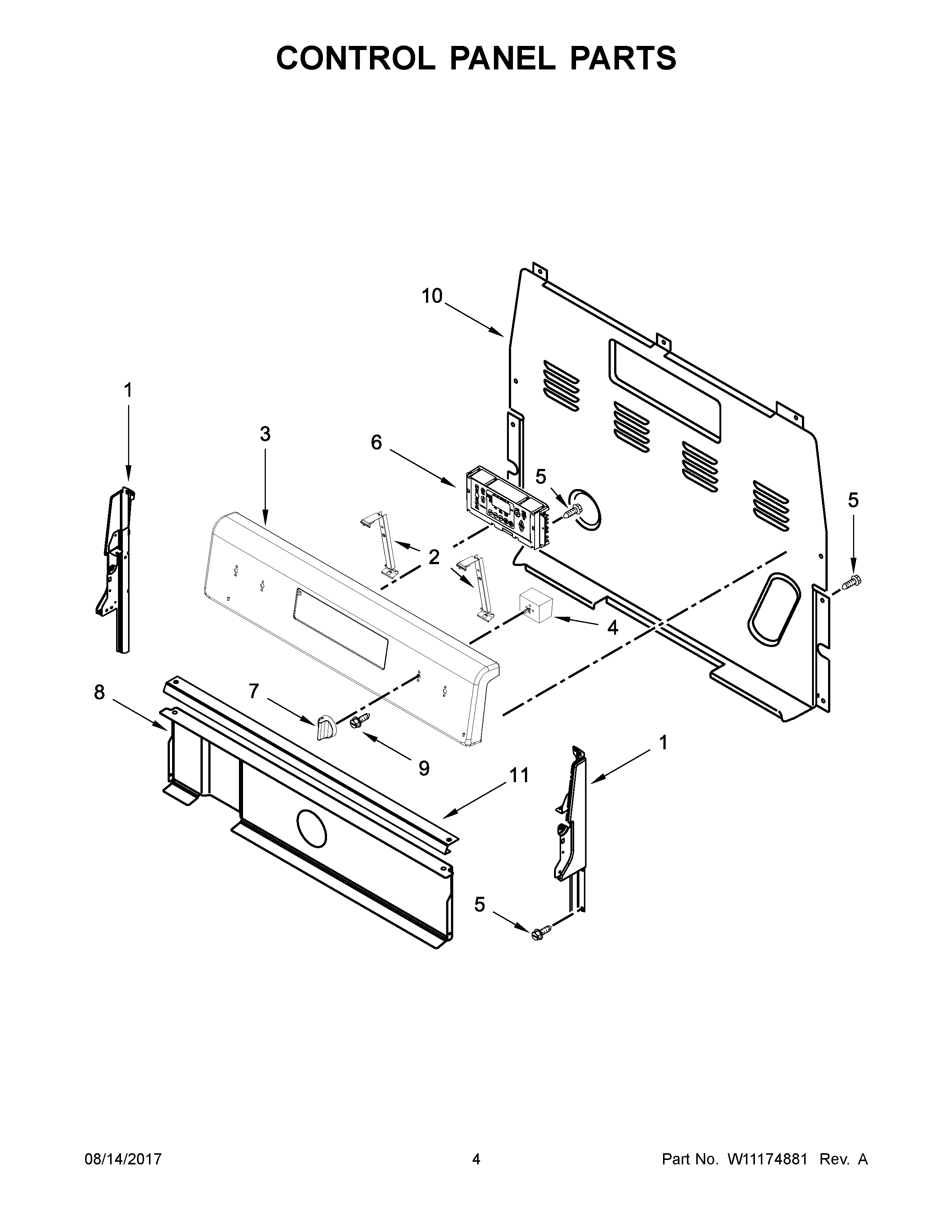

WFE505W0HB0 03 – CONTROL PANEL PARTS

WFE505W0HB0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1CW11219370 Whirlpool Endcap Panel
1BW11219365 Whirlpool Panel Endcap
1W11219664 Whirlpool Endcap Panel
1AW11219665 Whirlpool Panel Endcap
2W11230932 Whirlpool Bracket Mounting
3W11175523 Whirlpool Control Panel
3AW11175525 Whirlpool Control Panel
3BW11175518 Whirlpool Control Panel
4AWP3149404 Whirlpool Oven Surface Element Switch
4SWITCH-INF
4BWP3149400 Whirlpool Oven Infinite Switch
5SCREW
6W11567368 Whirlpool Control Board + Core
6AW11546066-includeCORE Whirlpool W11546066 Range Electronic Control Board
7W11158169 Whirlpool Knob
7AW11158173 Whirlpool Knob Assembly
8W10134247 Whirlpool Heat Shield
9WP3400882 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W10525121 Whirlpool Control Bracket
