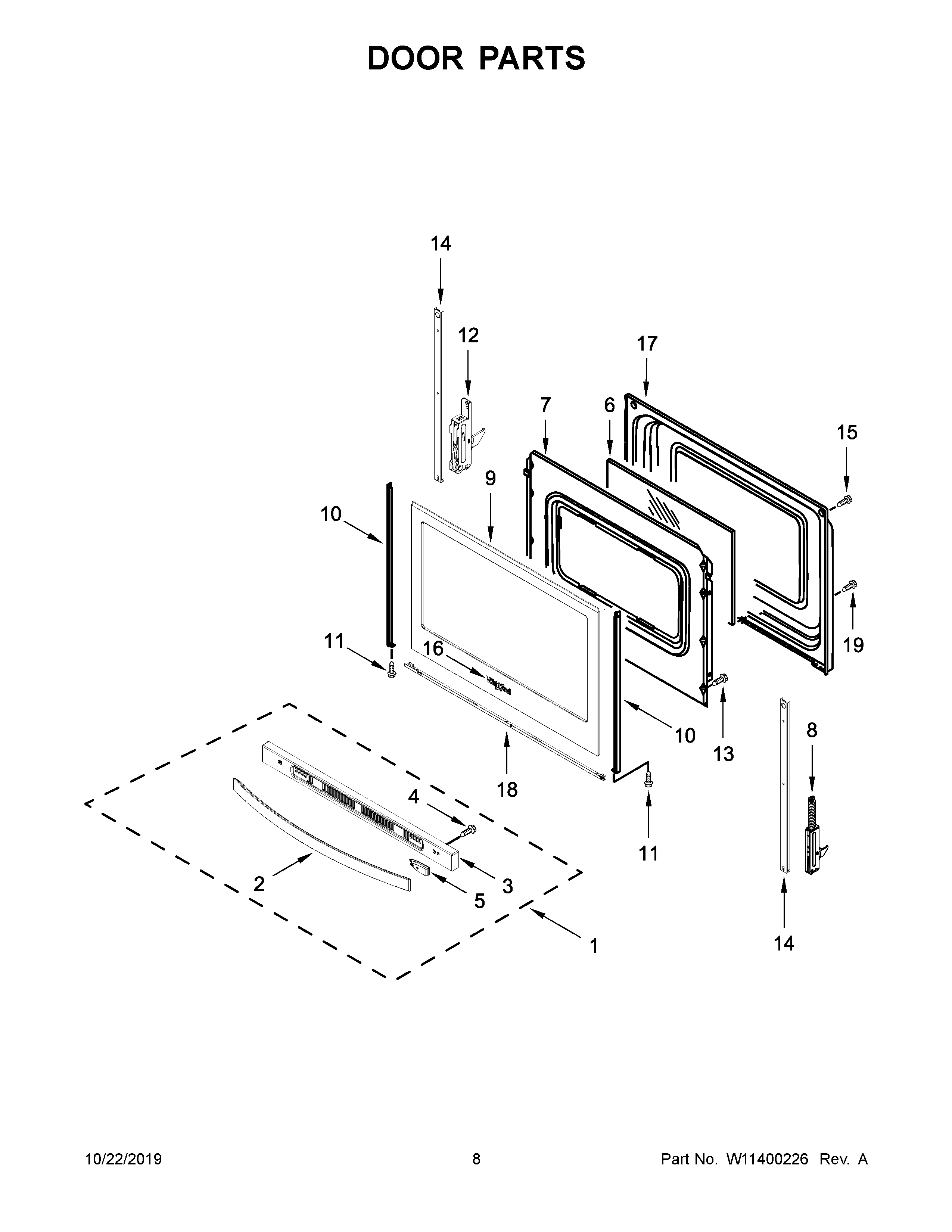

WFE505W0HB2 05 – DOOR PARTS

Products

PositionProduct
1AW11590861 Whirlpool Door Handle
1W11553213 Whirlpool Door Handle
2W11107394 Whirlpool Door Handle
2AW11107407 Whirlpool Door Handle
3AW10817433 Whirlpool Vent Trim
3TRIM-VENT
4W10831019 Whirlpool Stove Door Screw
5CABINET (NOT A SERVICEABLE PART)
6W11399628 Whirlpool Door Glass
7W11685635 Whirlpool Retainer
8WPW10299225 Whirlpool Door Hinge
9W11702167 Whirlpool Door Glass
9AWPW10409945 Whirlpool Glass Door
10CWP8523166 Whirlpool Door Trim
10BWP8523172 Whirlpool Left Door Trim
10W10761018 Whirlpool Dishwasher Left Door Trim
10AW10761014 Whirlpool Right Door Trim
11WP355214 Whirlpool Screw
12WPW10299227 Whirlpool Range Door Hinge
13W10777162 Whirlpool Screw
14W11502236 Whirlpool Door Trim
15WPW10200660 Whirlpool Range Oven Door Handle Screw
16W11178521 Whirlpool Dishwasher Nameplate
17WP9761344 Whirlpool Door Liner
18AWP8523175 Whirlpool Door Trim Assembly
18WP8523177 Whirlpool Door Trim Assembly
19WPW10031790 Whirlpool Screw
