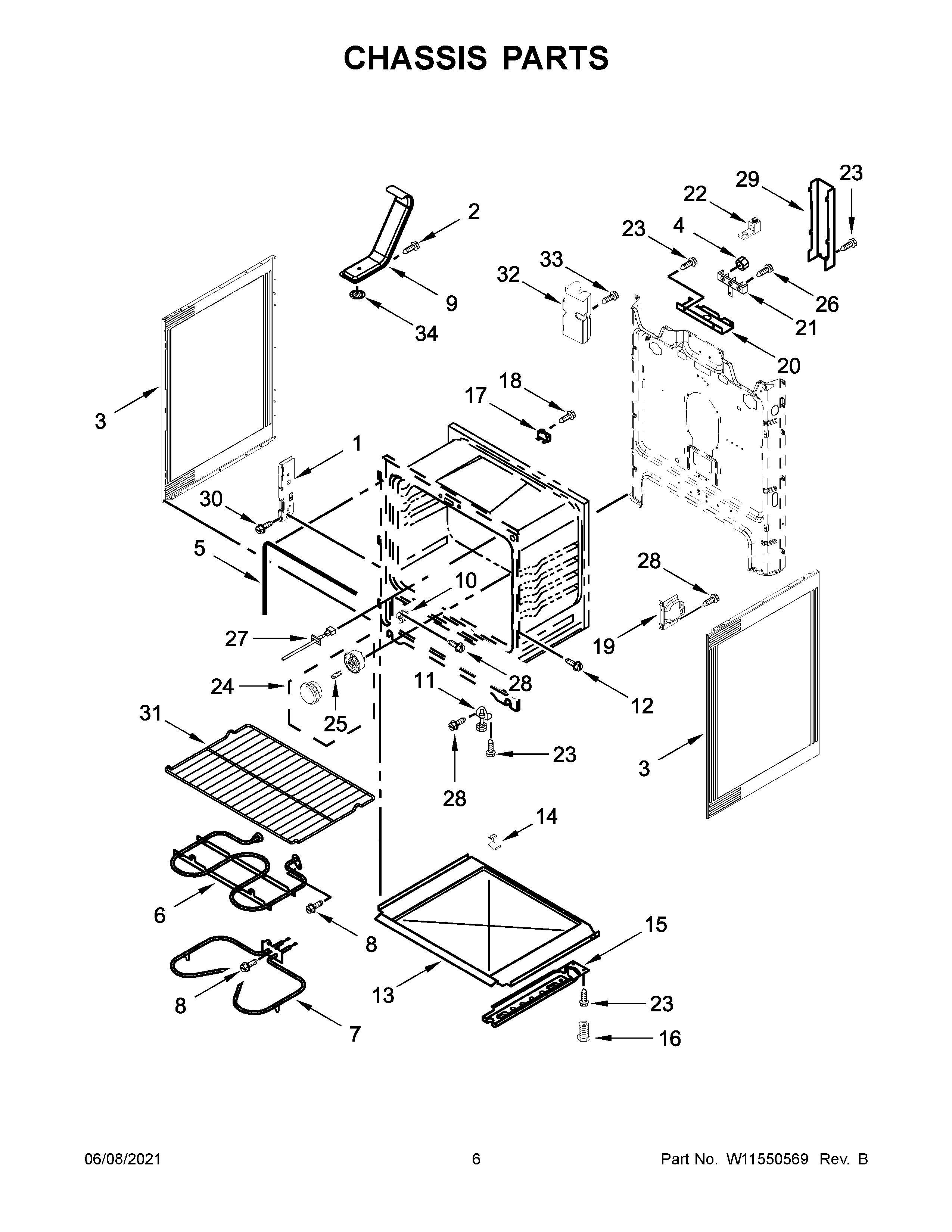

WFE505W0HB3 04 – CHASSIS PARTS

Products

Position	Product
NI	W11684918 Whirlpool Insulation
NI	W11311894 Whirlpool Insulation
NI	WPW10208653 Whirlpool Insulation
NI	CABINET (NOT A SERVICEABLE PART)
1	W10647259 Whirlpool Hinge Receiver
3	W11730303 Whirlpool Side Panel
3A	WPW10575396 Whirlpool Side Panel
4	WP3400029 Whirlpool Dishwasher Nut
5	W11542153 Whirlpool Door Gasket
6	W10856603 Whirlpool Broil Element
7	W11182108 Whirlpool Bake Element
8	WP3196154 Whirlpool Screw Assembly
9	WPW10134285 Whirlpool Vent Tube
10	W10807823 Whirlpool Drawer Glide
11	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
12	WPW10067840 Whirlpool Screw
13	WP8054068 Whirlpool Retainer
14	W10137382 Whirlpool Clip
15	WPW10306546 Whirlpool Base Rail
16	WPW10058460 Whirlpool Appliance Levelling Leg
17	WP3196548 Whirlpool Thermal Fuse
18	3196172 Whirlpool Oven Screw
19	W10404688 Whirlpool Bracket Support
20	W11728255 Whirlpool Service Bracket
21	WPW10245259 Whirlpool Terminal Block
22	WPW10281322 Whirlpool Connector
23	SCREW
24	W11594170 Whirlpool Light Socket
25	BULB-LIGHT
26	WP3400016 Whirlpool Screw Assembly
27	WPW10181986 Whirlpool Oven Sensor
28	WP3196557 Whirlpool Screw
29	WPW10326122 Whirlpool Black Cover
30	W10777162 Whirlpool Screw
31	RACK-OVEN
32	W11135752 Whirlpool Anchor Tip
33	W11135756 Whirlpool Screw Torx
34	9761301 Whirlpool Oven Screen
