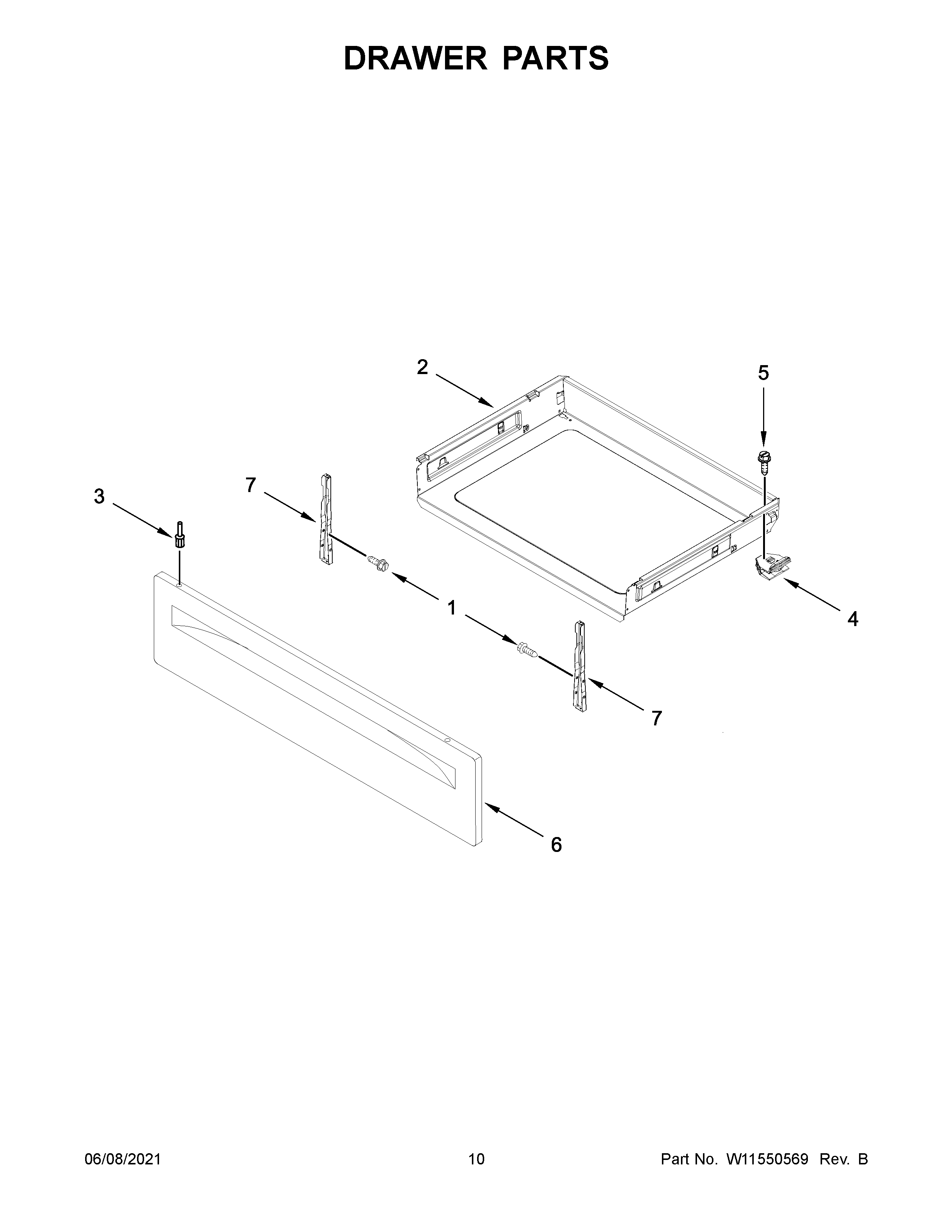

WFE505W0HW3 06 – DRAWER PARTS

Written by

Products

Position	Product
1	WP3196557 Whirlpool Screw
2	W10813962 Whirlpool Utility Drawer
3	WP3196813 Whirlpool Rivet
3A	WP3196814 Whirlpool Rivet
4	GLIDE-RANGE DRAWER KIT
5	WP3196175 Whirlpool Screw
6A	W11219377 Whirlpool Drawer Panel
6	W11230488 Whirlpool Drawer Panel
7	WPW10462912 Whirlpool Bracket Mounting
