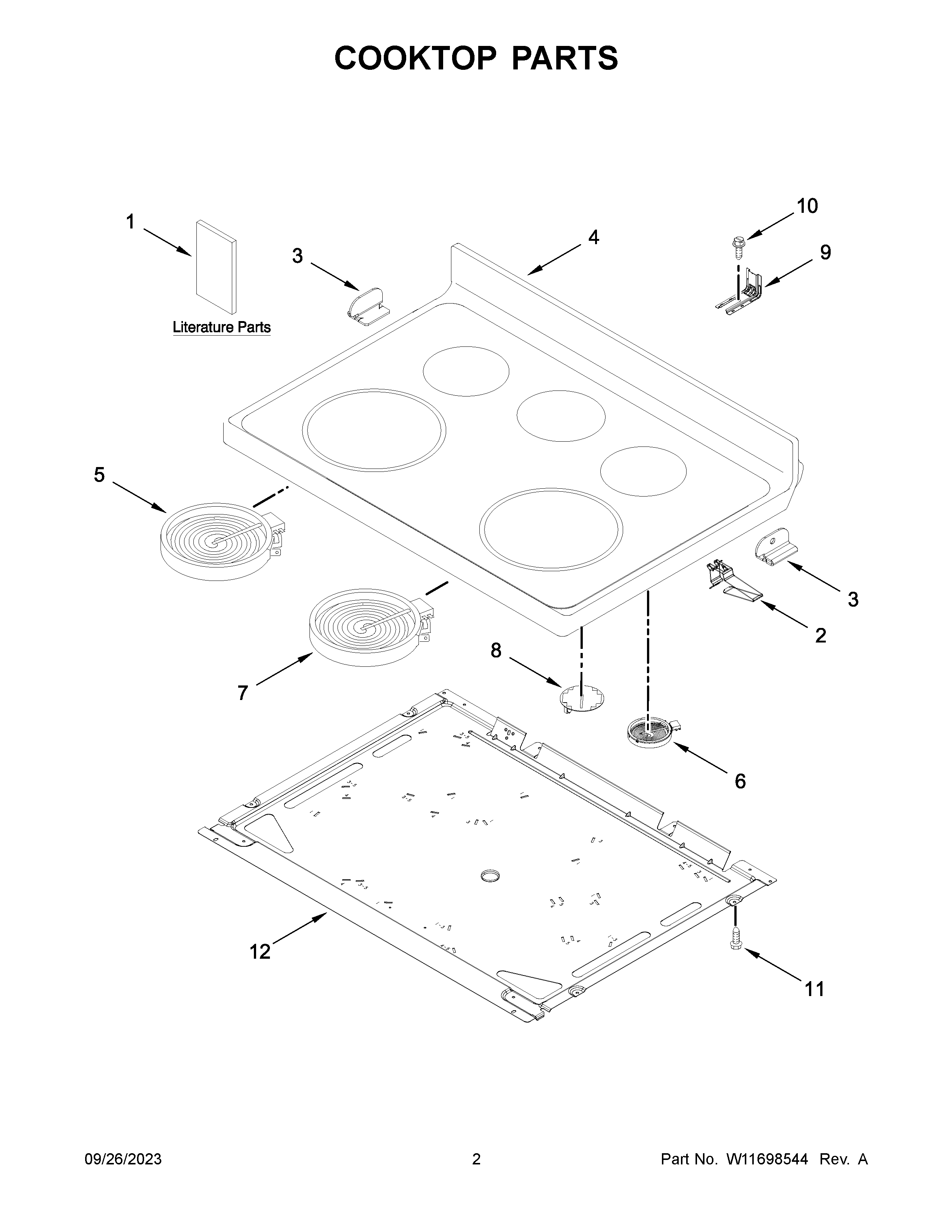

WFE505W0HW6 02 – COOKTOP PARTS

Products

Position	Product
NI	W11596058 Whirlpool Wire Harness
NI	W11532661 Whirlpool Wire Harness
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	HARNESS, WARM ZONE
NI	W11675846 Whirlpool Wire Harness
1	OWNERS MANUAL
1B	DIAGRAM, WIRING
1A	QUICK START GUIDE
1C	TECH SHEET
2	W11663556 Whirlpool Spring Assembly
3	W10607641 Whirlpool Clip
3A	W10607642 Whirlpool Clip
4	W11381329 Whirlpool Cooktop
5	W11517959 Whirlpool Electric Range Radiant Surface Element
6	ELMNT-SURF
7	W11047722 Whirlpool Radiant Surface Element
8	ELEMENT, WARM ZONE (CENTER)
9	W11447673 Whirlpool Range Tip Anchor
10	SCREW, ANTI-TIP KIT
11	WP3196557 Whirlpool Screw
12	PAN
