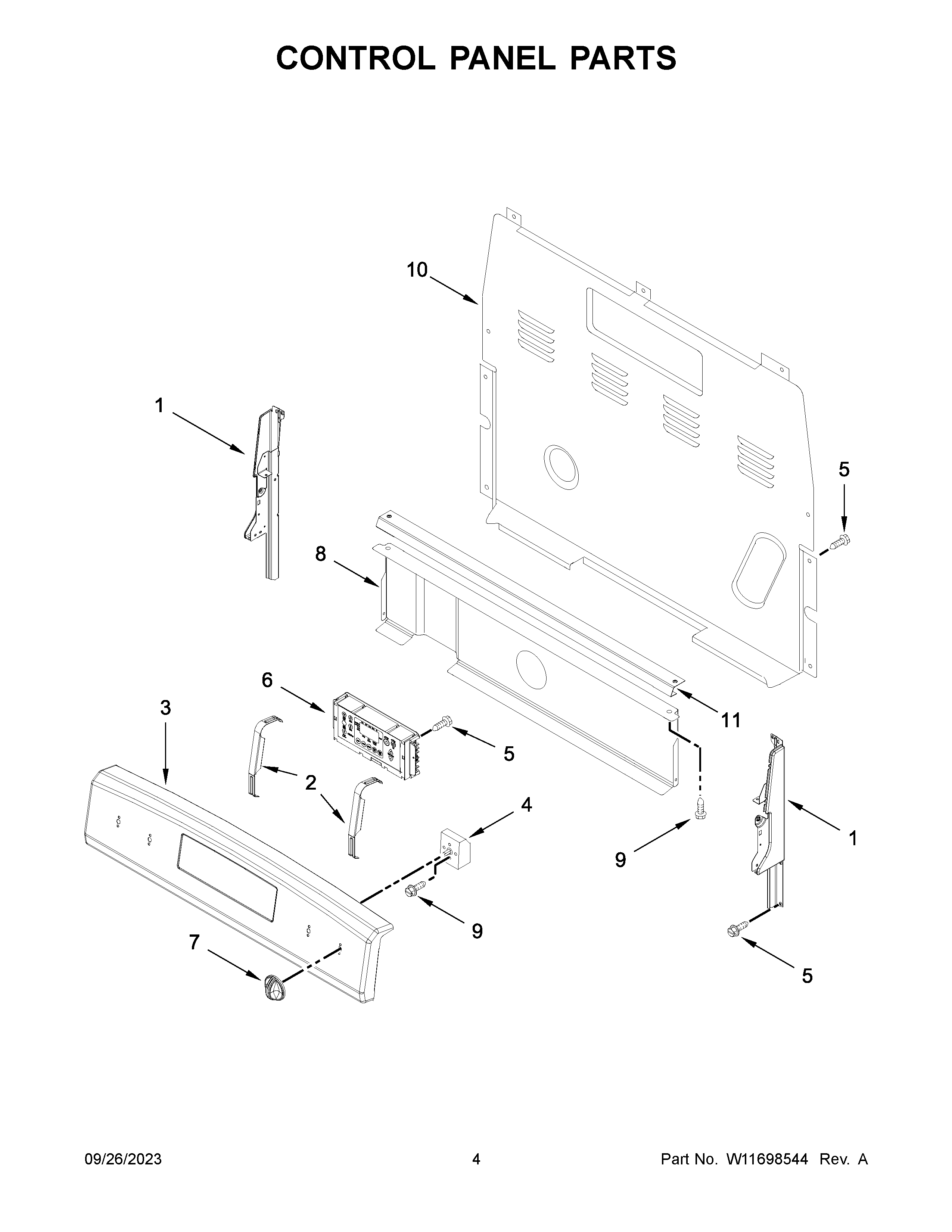

WFE505W0HW6 03 – CONTROL PANEL PARTS

Products

Position	Product
1A	W11219370 Whirlpool Endcap Panel
1	W11219365 Whirlpool Panel Endcap
2	W11230932 Whirlpool Bracket Mounting
3	W11175525 Whirlpool Control Panel
4A	WP3149404 Whirlpool Oven Surface Element Switch
4B	WP3149400 Whirlpool Oven Infinite Switch
4	SWITCH-INF
5	WP3196557 Whirlpool Screw
6	W11546066-includeCORE Whirlpool W11546066 Range Electronic Control Board
7	W11158173 Whirlpool Knob Assembly
8	W10134247 Whirlpool Heat Shield
9	WP3400882 Whirlpool Screw
10	WP8272473 Whirlpool Rear Cover
11	W10525121 Whirlpool Control Bracket
