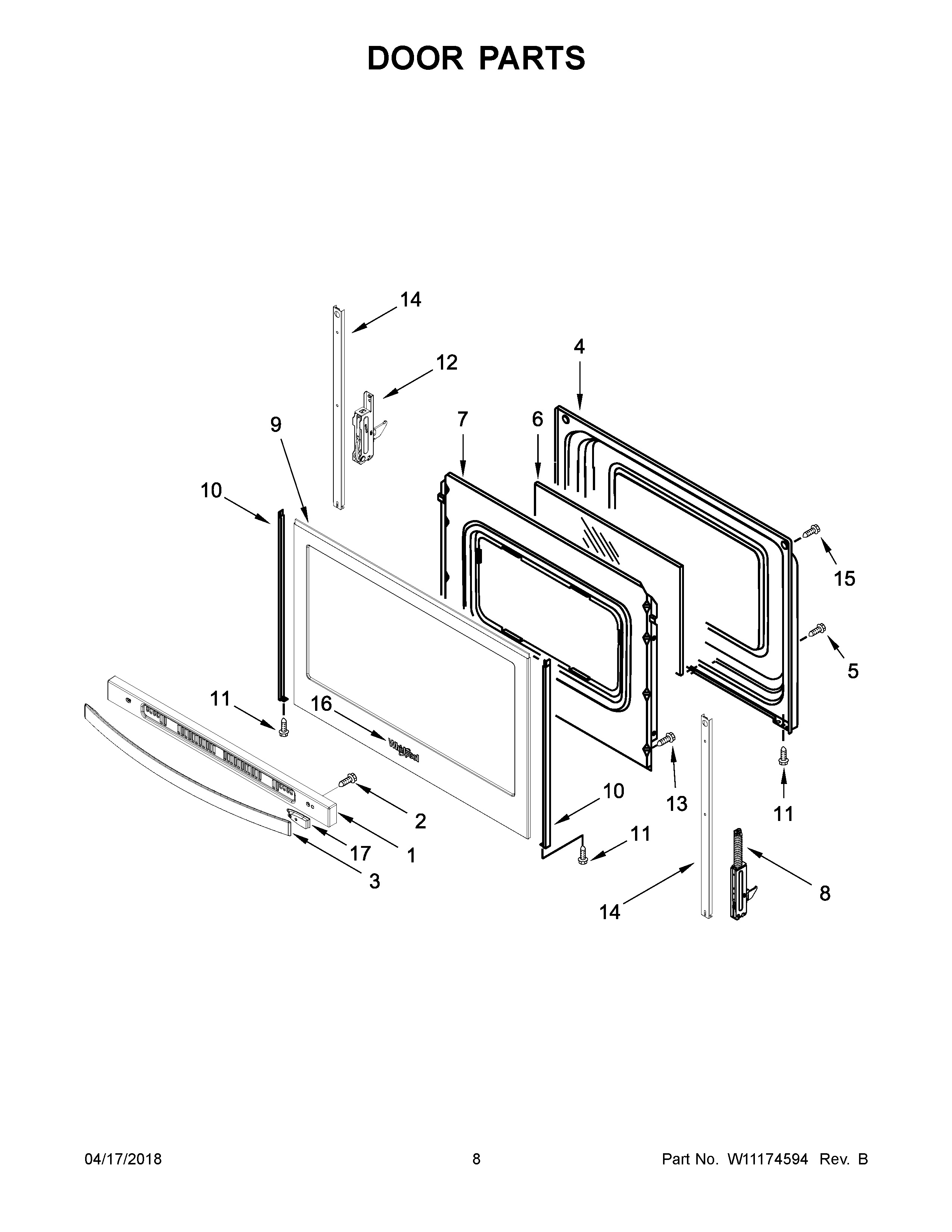

WFE505W0HZ0 05 – DOOR PARTS

WFE505W0HZ0 05 – DOOR PARTS

Written by

in

WFE505W0HZ0 05 – DOOR PARTS

Products

PositionProduct
1TRIM-VENT
2W10831019 Whirlpool Stove Door Screw
3W11110499 Whirlpool Stove Door Handle
4WP9761344 Whirlpool Door Liner
5WPW10031790 Whirlpool Screw
6W11399628 Whirlpool Door Glass
7W11685635 Whirlpool Retainer
8WPW10299226 Whirlpool Door Hinge
9W11249559 Whirlpool Door Glass
10AW10761014 Whirlpool Right Door Trim
10W10761018 Whirlpool Dishwasher Left Door Trim
11WP355214 Whirlpool Screw
12WPW10299227 Whirlpool Range Door Hinge
13W10777162 Whirlpool Screw
14W11502236 Whirlpool Door Trim
15WPW10200660 Whirlpool Range Oven Door Handle Screw
16W11178521 Whirlpool Dishwasher Nameplate
17STANDOFF, HANDLE (BLACK)
