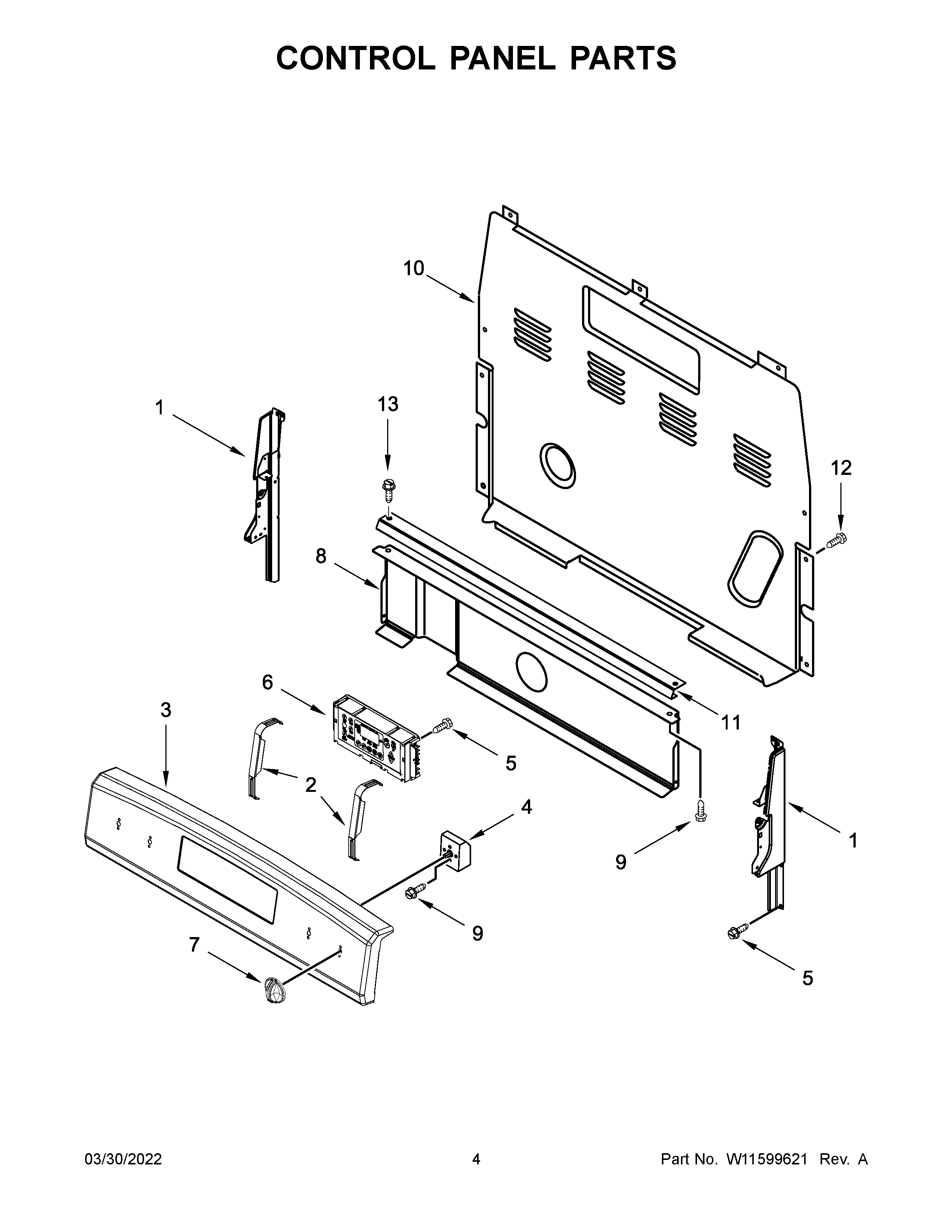

WFE505W0JS3 03 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219664 Whirlpool Endcap Panel
1A	W11219665 Whirlpool Panel Endcap
2	W11230932 Whirlpool Bracket Mounting
3	W11175518 Whirlpool Control Panel
4B	WP3149400 Whirlpool Oven Infinite Switch
4A	WP3149404 Whirlpool Oven Surface Element Switch
4	SWITCH-INF
5	SCREW
6	W11567368 Whirlpool Control Board + Core
7	W11158169 Whirlpool Knob
8	W10134247 Whirlpool Heat Shield
9	WP3400882 Whirlpool Screw
10	WP8272473 Whirlpool Rear Cover
11	W10525121 Whirlpool Control Bracket
12	WP3196557 Whirlpool Screw
13	WP3196175 Whirlpool Screw
