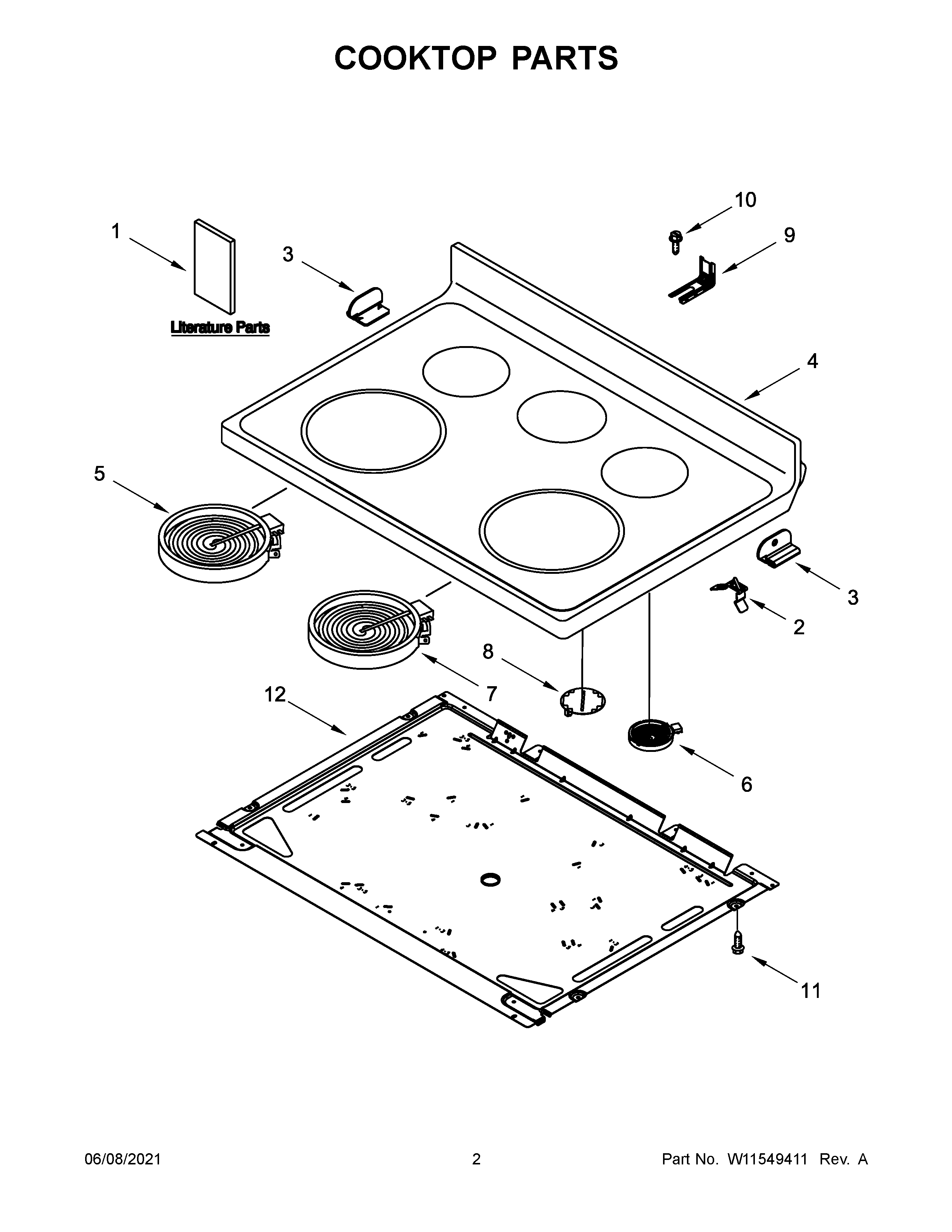

WFE505W0JZ1 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11134592 Whirlpool Wire Harness
NIW11532661 Whirlpool Wire Harness
NIW11675846 Whirlpool Wire Harness
NIW11596058 Whirlpool Wire Harness
1BTECH SHEET
1AINSTRUCTIONS, INSTALLATION
1GUIDE, USE AND CARE
2WPW10225448 Whirlpool Spring Assembly
3AW10607642 Whirlpool Clip
3W10607641 Whirlpool Clip
4W11175876 Whirlpool Glass Maintop Assembly
5W11517959 Whirlpool Electric Range Radiant Surface Element
6ELMNT-SURF
7W11047722 Whirlpool Radiant Surface Element
8W11041453 Whirlpool Surface Element
9W11447673 Whirlpool Range Tip Anchor
10SCREW, ANTI-TIP KIT
11WP3196557 Whirlpool Screw
12PAN
