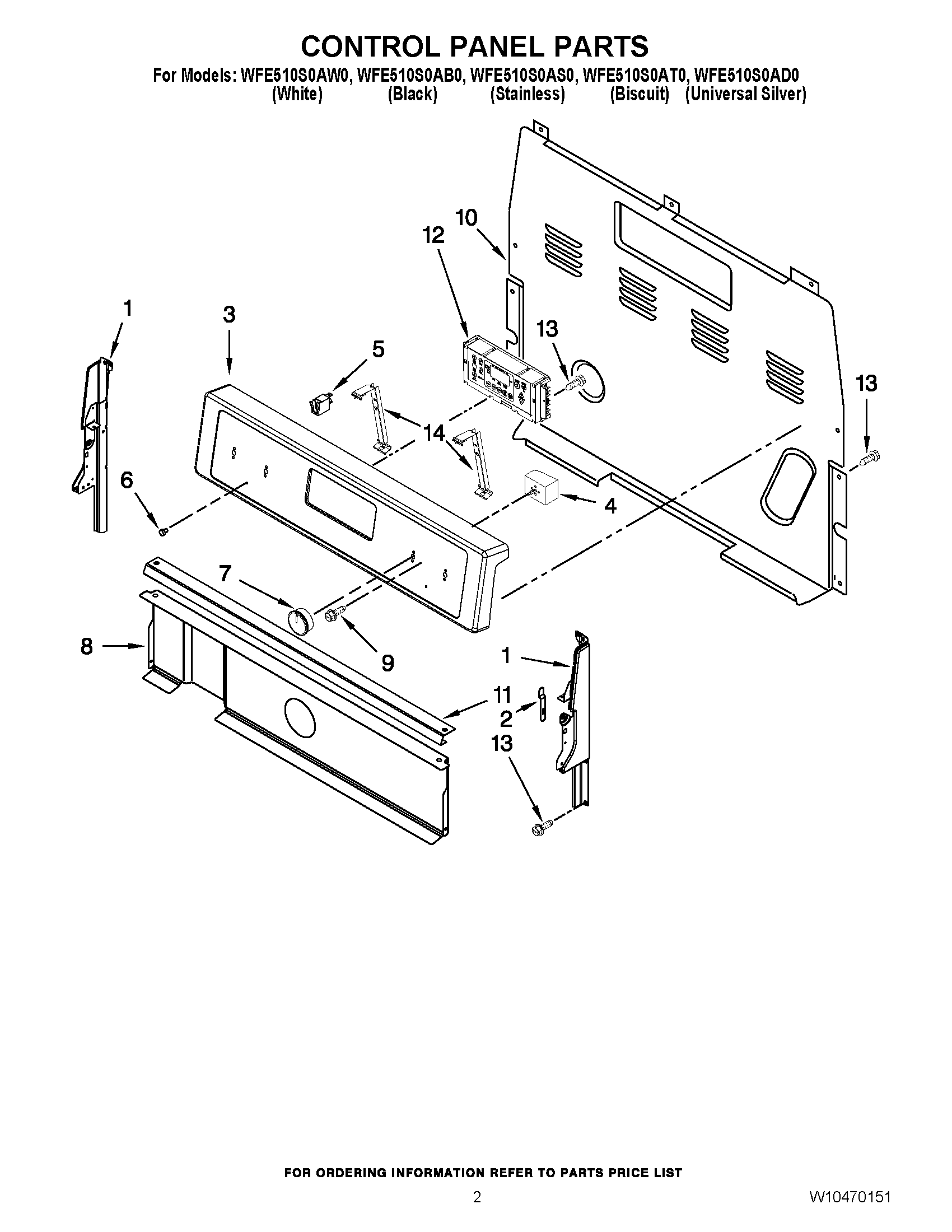

WFE510S0AD0 02 – CONTROL PANEL PARTS

WFE510S0AD0 02 – CONTROL PANEL PARTS

Written by

in

WFE510S0AD0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11230611 Whirlpool Panel Endcap
1W11219664 Whirlpool Endcap Panel
1W11219665 Whirlpool Panel Endcap
1W11230612 Whirlpool Panel End Cap
1W11219365 Whirlpool Panel Endcap
1W11219370 Whirlpool Endcap Panel
23196200 Whirlpool Clip
3W11231942 Whirlpool Control Panel
3PANEL, BACKGUARD (BISCUIT)
3PANEL, BACKGUARD (UNIVERSAL SILVER)
3W11251222 Whirlpool Control Panel
3W11231943 Whirlpool Control Panel
4WP3149404 Whirlpool Oven Surface Element Switch
4SWITCH-INF
4WP3149400 Whirlpool Oven Infinite Switch
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7WPW10490037 Whirlpool Knob
7W10854421 Whirlpool Knob
7WPW10490038 Whirlpool Knob
8W10134247 Whirlpool Heat Shield
9WP3400882 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W10525121 Whirlpool Control Bracket
12WPW10734612-includeCORE Whirlpool WPW10734612 Refrigerator Electronic Control Board + Core
12WPW10734611 Whirlpool Electronic Control Board + Core
12WPW10734609-includeCORE Whirlpool WPW10734609 Washer Electronic Control Board + Core
12WPW10413076-includeCORE Whirlpool WPW10413076 Washer Electronic Control Board + Core
13SCREW
14W11230932 Whirlpool Bracket Mounting
