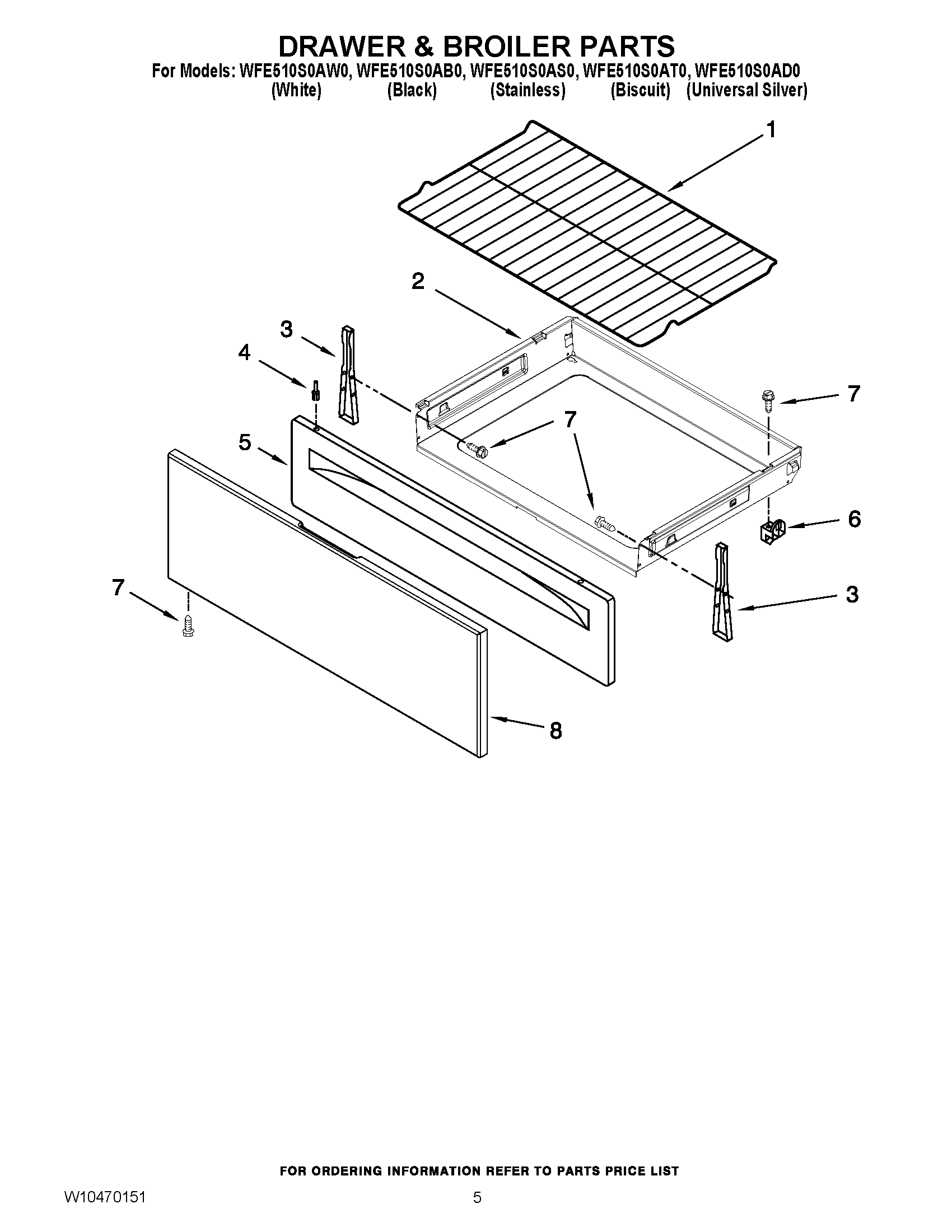

WFE510S0AW0 04 – DRAWER & BROILER PARTS

WFE510S0AW0 04 – DRAWER & BROILER PARTS

Written by

in

WFE510S0AW0 04 – DRAWER & BROILER PARTS

Products

PositionProduct
1RACK-OVEN
2W10813962 Whirlpool Utility Drawer
3W10838990 Whirlpool Mounting Bracket
3WPW10462912 Whirlpool Bracket Mounting
4WP3196813 Whirlpool Rivet
4WP3196814 Whirlpool Rivet
5W11230476 Whirlpool Drawer Panel
5W11230488 Whirlpool Drawer Panel
5W11230479 Whirlpool Drawer Panel
5W11219377 Whirlpool Drawer Panel
6GLIDE-RANGE DRAWER KIT
7WP3196175 Whirlpool Screw
8WPW10330070 Whirlpool Drawer Panel
