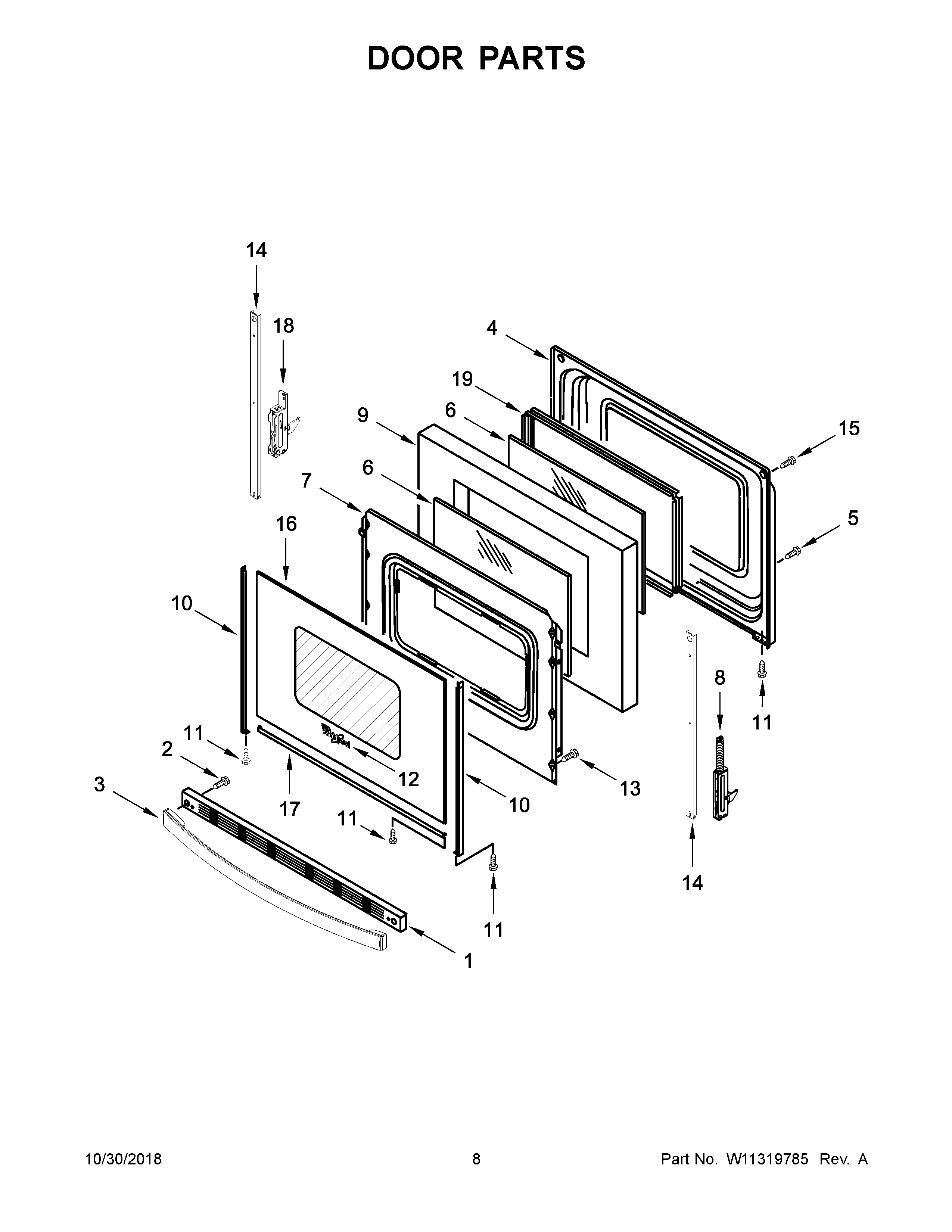

WFE510S0HB1 05 – DOOR PARTS

Products

Position	Product
1	TRIM-VENT
1A	W10817433 Whirlpool Vent Trim
2	W10831019 Whirlpool Stove Door Screw
3A	W11590861 Whirlpool Door Handle
3	W11553213 Whirlpool Door Handle
4	WP9761344 Whirlpool Door Liner
5	WPW10031790 Whirlpool Screw
6	WP8053948 Whirlpool Door Glass
7	W11539580 Whirlpool Retainer
8	WPW10299226 Whirlpool Door Hinge
9	WPW10278991 Whirlpool Insulation
10C	WP8523166 Whirlpool Door Trim
10	W10761018 Whirlpool Dishwasher Left Door Trim
10A	W10761014 Whirlpool Right Door Trim
10B	WP8523172 Whirlpool Left Door Trim
11	WP355214 Whirlpool Screw
12	W11178521 Whirlpool Dishwasher Nameplate
13	W10777162 Whirlpool Screw
14	W11502236 Whirlpool Door Trim
15	WPW10200660 Whirlpool Range Oven Door Handle Screw
16	W11702167 Whirlpool Door Glass
16A	WPW10409945 Whirlpool Glass Door
17	WP8523177 Whirlpool Door Trim Assembly
17A	WP8523175 Whirlpool Door Trim Assembly
18	WPW10299227 Whirlpool Range Door Hinge
19	WPW10316950 Whirlpool Window Frame
