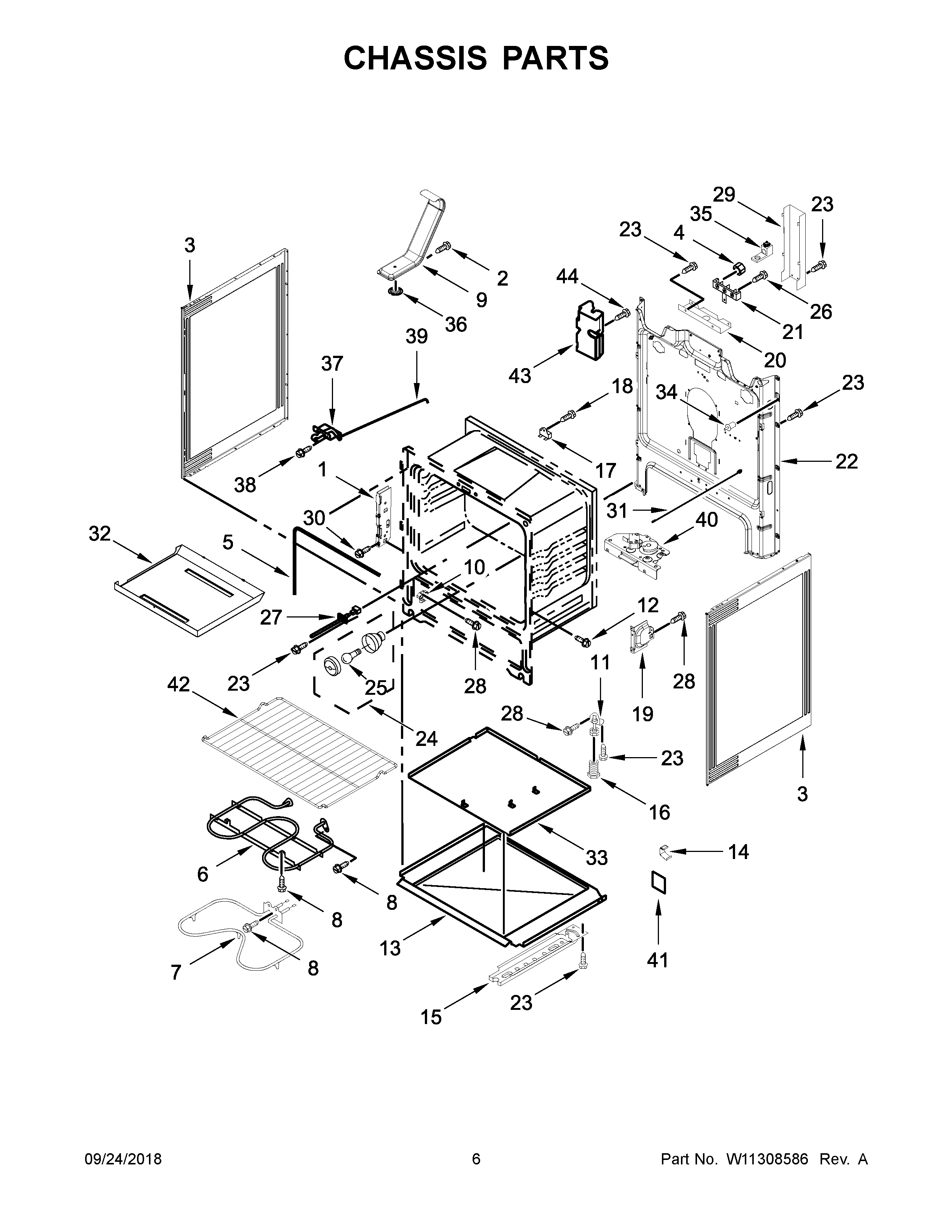

WFE515S0EB2 04 – CHASSIS PARTS

Products

PositionProduct
NIW11684918 Whirlpool Insulation
NICABINET (NOT A SERVICEABLE PART)
NIW11684917 Whirlpool Insulation
NIW11161831 Whirlpool Insulation
1W10647259 Whirlpool Hinge Receiver
2WP3196154 Whirlpool Screw Assembly
3W11730303 Whirlpool Side Panel
3BW10162246 Whirlpool Side Panel
3AWPW10575396 Whirlpool Side Panel
4WP3400968 Whirlpool Nut
5W11542153 Whirlpool Door Gasket
6W10856603 Whirlpool Broil Element
7WP9755770 Whirlpool Bake Element
8WP3196174 Whirlpool Screw
9WPW10134285 Whirlpool Vent Tube
10W10807823 Whirlpool Drawer Glide
11WPW10341186 Whirlpool Refrigerator Front Levelling Leg
12WPW10067840 Whirlpool Screw
13W10134121 Whirlpool Insulation Tray
14W10137382 Whirlpool Clip
15AWPW10306546 Whirlpool Base Rail
16WPW10058460 Whirlpool Appliance Levelling Leg
17WP3196548 Whirlpool Thermal Fuse
183196172 Whirlpool Oven Screw
19W10404688 Whirlpool Bracket Support
20W11728255 Whirlpool Service Bracket
21WPW10245259 Whirlpool Terminal Block
23SCREW
24W11594027 Whirlpool Range Oven Light Socket
25BULB-LIGHT
26WP3400016 Whirlpool Screw Assembly
27WPW10181986 Whirlpool Oven Sensor
28WP3196557 Whirlpool Screw
29WPW10326122 Whirlpool Black Cover
30W10777162 Whirlpool Screw
319757239 Whirlpool Oven Door Rod
32W10183712 Whirlpool Bake Tray
33W10134125 Whirlpool Retainer Clip
34WP9757262 Whirlpool Light Switch
35WPW10281322 Whirlpool Connector
36SCREEN, VENT
37WP9761013 Whirlpool Door Latch
38W11169708 Whirlpool Screw
39Rod, Latch
40WPW10107820 Whirlpool Door Latch
41W10646923 Whirlpool Insulator
42RACK-OVEN
43W11135752 Whirlpool Anchor Tip
44W11135756 Whirlpool Screw Torx
