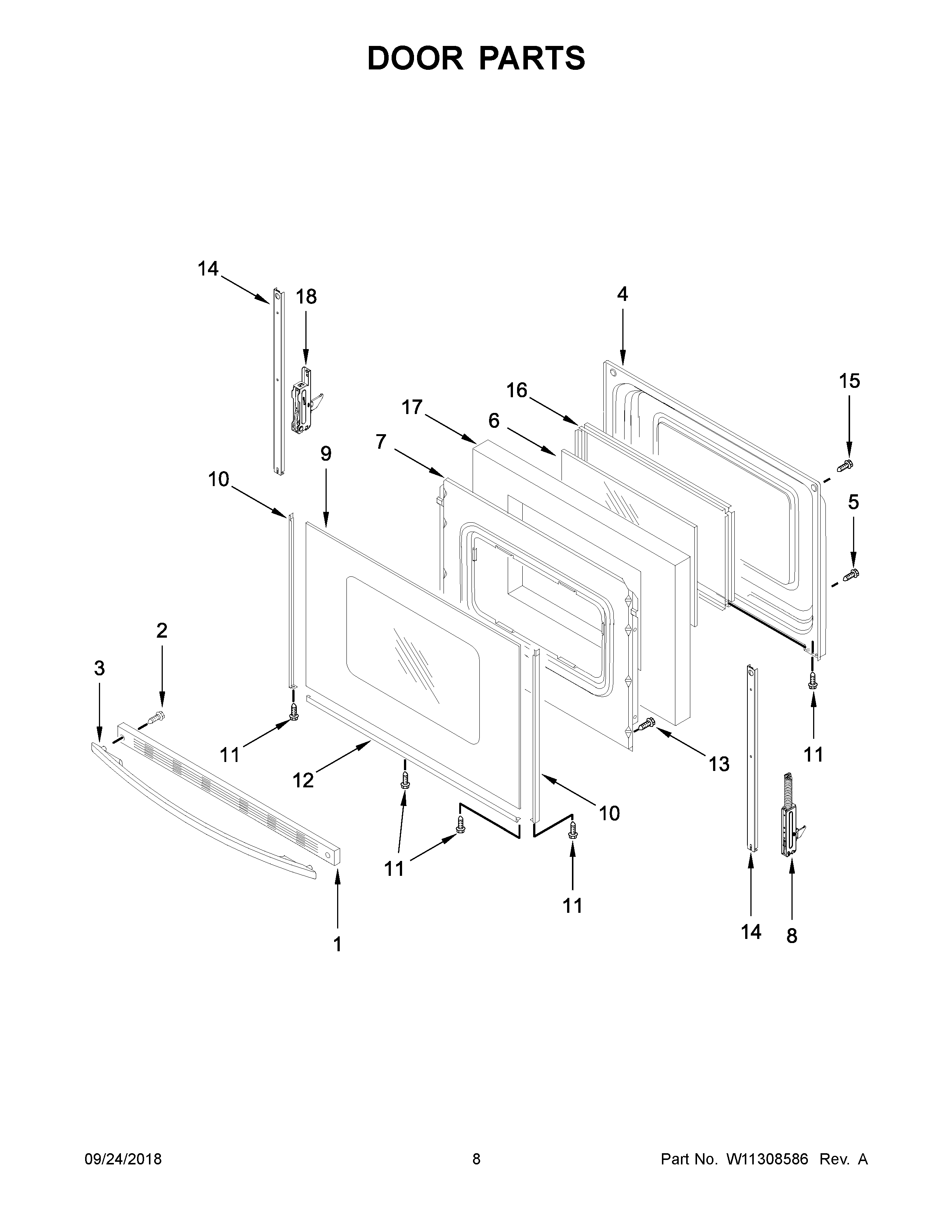

WFE515S0EB2 05 – DOOR PARTS

Products

Position	Product
1	TRIM-VENT
1B	WPW10310923 Whirlpool Vent Trim
1A	W10817433 Whirlpool Vent Trim
2	WPW10465148 Whirlpool Screw
3B	W10300491 Whirlpool Door Handle
3A	W10300489 Whirlpool Door Handle
3	W10300490 Whirlpool Door Handle
4	WP9761344 Whirlpool Door Liner
5	WPW10031790 Whirlpool Screw
6	WP8053948 Whirlpool Door Glass
7	W11539580 Whirlpool Retainer
8	WPW10299226 Whirlpool Door Hinge
9A	WPW10409945 Whirlpool Glass Door
9	WPW10409946 Whirlpool Door Glass
9B	WPW10409947 Whirlpool Glass Door
10	W10761018 Whirlpool Dishwasher Left Door Trim
10A	W10761014 Whirlpool Right Door Trim
10E	WP8523167 Whirlpool Door Trim Assembly
10B	WP8523172 Whirlpool Left Door Trim
10D	WP8523173 Whirlpool Door Trim
10C	WP8523166 Whirlpool Door Trim
11	WP355214 Whirlpool Screw
12A	WP8523175 Whirlpool Door Trim Assembly
12B	WP8523178 Whirlpool Door Trim
12	WP8523177 Whirlpool Door Trim Assembly
13	W10777162 Whirlpool Screw
14	W11502236 Whirlpool Door Trim
15	WPW10200660 Whirlpool Range Oven Door Handle Screw
16	WPW10316950 Whirlpool Window Frame
17	WPW10278991 Whirlpool Insulation
18	WPW10299227 Whirlpool Range Door Hinge
