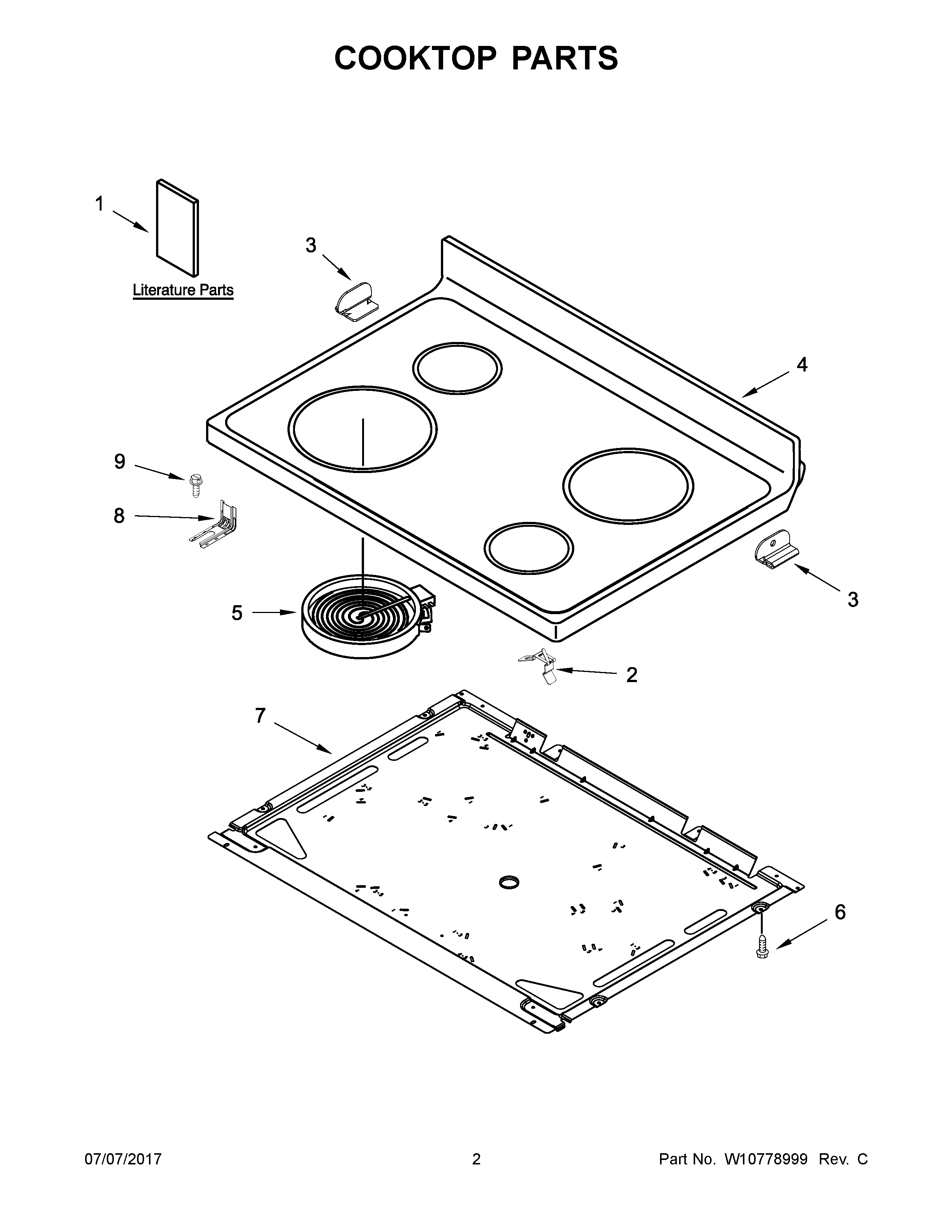

WFE515S0ED0 02 – COOKTOP PARTS

WFE515S0ED0 02 – COOKTOP PARTS

Written by

in

WFE515S0ED0 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11134602 Whirlpool Wire Harness
NIW11134601 Whirlpool Wire Harness
NIW11172524 Whirlpool Wire Harness
NIW10183541 Whirlpool Clip Assembly
NIW11219898 Whirlpool Wire Harness
NIW10465644 Whirlpool Wire Harness
NI3400964 Whirlpool Oven Clip
1CSAFER COOKING TIPS (ENGLISH
1BTECH SHEET (ENGLISH)
1AUSE AND CARE GUIDE, ENGLISH
1INSTRUCTIONS, INSTALLATION
2WPW10225448 Whirlpool Spring Assembly
3AW10607642 Whirlpool Clip
3W10607641 Whirlpool Clip
4BW10472029 Whirlpool Cooktop
4W10472020 Whirlpool Cooktop
4AW10245805 Whirlpool Range Black Glass Cooktop
5AELMNT-SURF
5BW11047722 Whirlpool Radiant Surface Element
5W11517959 Whirlpool Electric Range Radiant Surface Element
6WP3196557 Whirlpool Screw
7PAN
8W11447673 Whirlpool Range Tip Anchor
9SCREW, ANTI-TIP KIT
