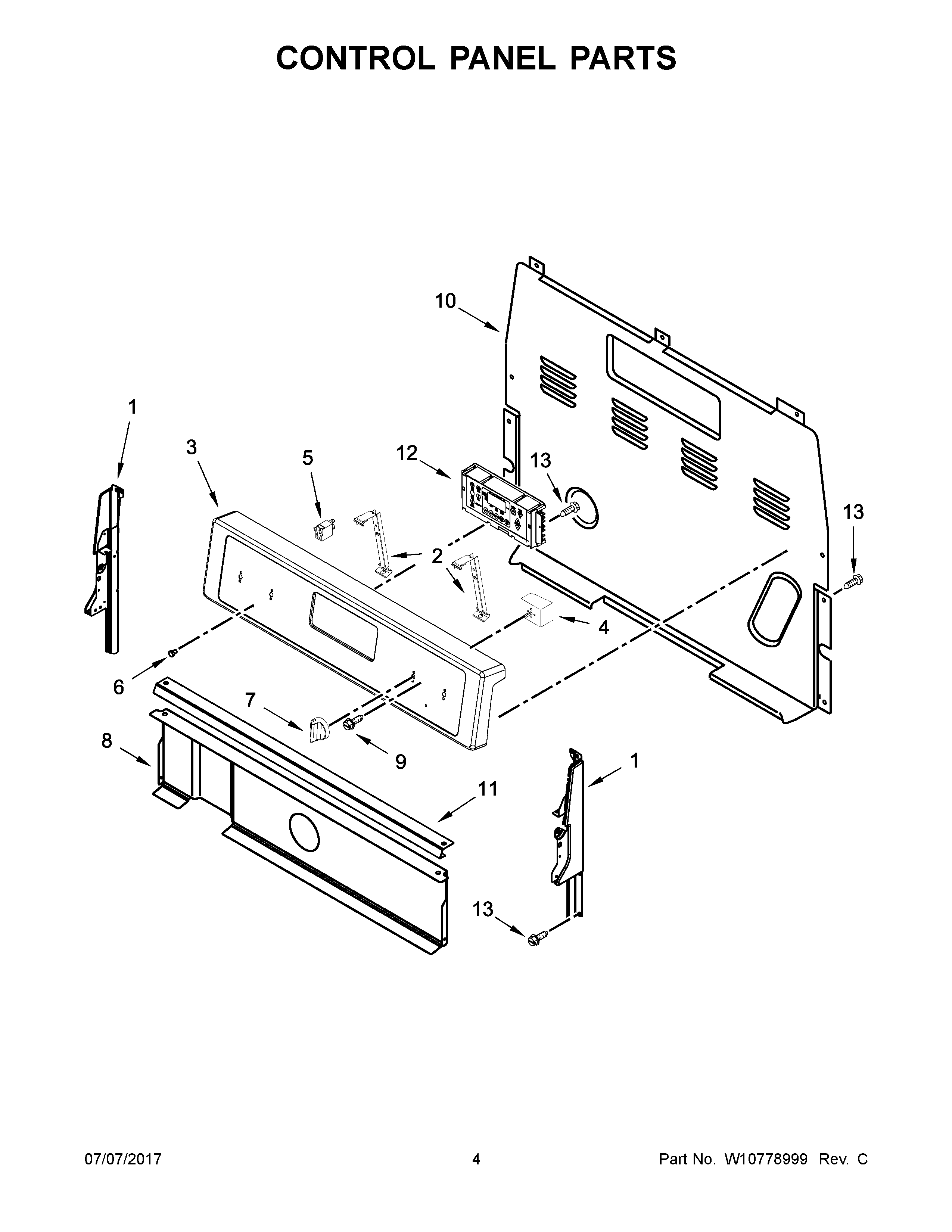

WFE515S0ES0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1EW11230612 Whirlpool Panel End Cap
1DW11230611 Whirlpool Panel Endcap
1AW11219370 Whirlpool Endcap Panel
1W11219365 Whirlpool Panel Endcap
1CW11219665 Whirlpool Panel Endcap
1BW11219664 Whirlpool Endcap Panel
2W11230932 Whirlpool Bracket Mounting
3W11231942 Whirlpool Control Panel
3AW11231943 Whirlpool Control Panel
3BPANEL, BACKGUARD (BISCUIT)
3CW11251222 Whirlpool Control Panel
4BWP3149400 Whirlpool Oven Infinite Switch
4SWITCH-INF
4AWP3149404 Whirlpool Oven Surface Element Switch
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7AW10836470 Whirlpool Knob Assembly
7W10853029 Whirlpool Knob
7BW10676215 Whirlpool Knob
8W10134247 Whirlpool Heat Shield
9WP3400882 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W10525121 Whirlpool Control Bracket
12BW11134276-includeCORE Whirlpool W11134276 Washer Electronic Control Board
12CW11122543-includeCORE Whirlpool W11122543 Electronic Control Board + Core
12AW11122551-includeCORE Whirlpool W11122551 Refrigerator Electronic Control Board
12W11122546-includeCORE Whirlpool W11122546 Range Electronic Control Board + Core
13SCREW
